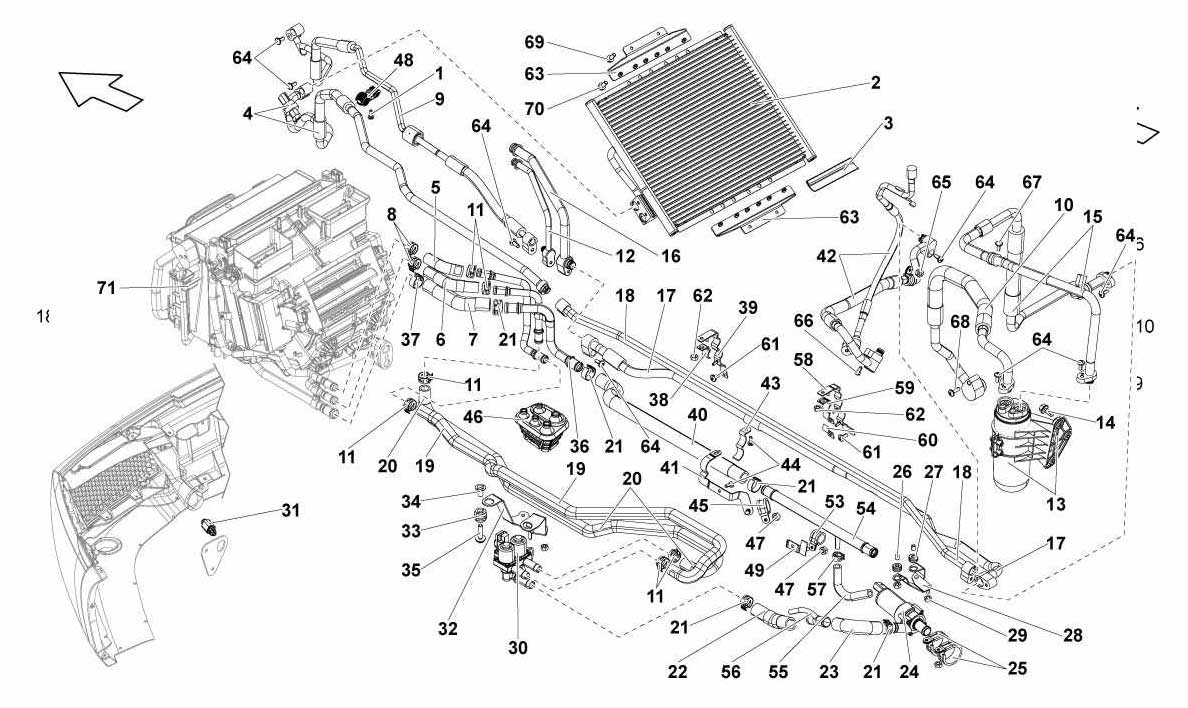

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10156206 *Qty: 2 SCREW M6X30 $0.90
Location: 2 Prev | Next Part: 400260401C *Qty: 1 A/C CONDENSER $480.55
Location: 3 Prev | Next Part: 400820261 *Qty: 2 GASKET $41.69
Location: 4 Prev | Next Part: 400260704 *Qty: 1 PIPE $209.72
Location: 5 Prev | Next Part: 400819120 *Qty: 1 SLEEVE $41.78
Location: 6 Prev | Next Part: 400819119 *Qty: 1 SLEEVE $58.54
Location: 7 Prev | Next Part: 400819258 *Qty: 1 SLEEVE $58.54
Location: 8 Prev | Next Part: N10202001 *Qty: 2 CLAMP $1.61
Location: 9 Prev | Next Part: 400260712 *Qty: 1 PIPE $202.14
Location: 10 Prev | Next Part: 420260707A *Qty: 1 PIPE $250.10
Location: 11 Prev | Next Part: N90686901 *Qty: 6 CLAMP $0.90
Location: 12 Prev | Next Part: 400260711 *Qty: 1 PIPE $50.30
Location: 13 Prev | Next Part: 420820189 *Qty: 1 DEHYDRATOR FILTER $94.45
Location: 14 Prev | Next Part: N10340902 *Qty: 3 SCREW M6X30 $0.90
Location: 15 Prev | Next Part: 420260708A *Qty: 1 PIPE $208.80
Location: 16 Prev | Next Part: 400260741B *Qty: 1 PIPE $54.27
Location: 17 Prev | Next Part: 400260740C *Qty: 1 PIPE $168.16
Location: 18 Prev | Next Part: 400260702 *Qty: 1 PIPE $141.98
Location: 19 Prev | Next Part: 400819374 *Qty: 1 PIPE $108.06
Location: 20 Prev | Next Part: 400819373A *Qty: 1 PIPE $108.06
Location: 21 Prev | Next Part: N90687001 *Qty: 7 CLAMP $4.29
Location: 22 Prev | Next Part: 400819376 *Qty: 1 SLEEVE Call
Location: 23 Prev | Next Part: 400819375 *Qty: 1 SLEEVE Call
Location: 24 Prev | Next Part: 3D0965561D *Qty: 1 WATER PUMP $277.63
Location: 25 Prev | Next Part: N91123701 *Qty: 2 CLAMP $5.36
Location: 26 Prev | Next Part: 400121129 *Qty: 2 SPACER $10.80
Location: 27 Prev | Next Part: 7L121585 *Qty: 2 FAIRLEAD $10.56
Location: 28 Prev | Next Part: 400965557 *Qty: 1 BRACKET $29.23
Location: 29 Prev | Next Part: N01508213 *Qty: 4 NUT M6 $0.90
Location: 30 Prev | Next Part: 400820036A *Qty: 1 VALVE $443.59
Location: 31 Prev | Next Part: 8Z0820535 *Qty: 1 TEMPERATURE SENSOR $27.00
Location: 32 Prev | Next Part: 400820761B *Qty: 1 BRACKET $26.33
Location: 33 Prev | Next Part: 4D0614177A *Qty: 2 PUFFER $2.30
Location: 34 Prev | Next Part: 4D0614173B *Qty: 2 BUSHING $6.12
Location: 35 Prev | Next Part: N10442204 *Qty: 2 SCREW M6X40 $1.17
Location: 36 Prev | Next Part: 400819885 *Qty: 1 PIPE Call
Location: 37 Prev | Next Part: N90863701 *Qty: 1 CLAMP $3.06
Location: 38 Prev | Next Part: 400260420 *Qty: 1 BRACKET $9.74
Location: 39 Prev | Next Part: 400260419 *Qty: 1 BRACKET $13.21
Location: 40 Prev | Next Part: 400819372B *Qty: 1 PIPE $72.08
Location: 41 Prev | Next Part: 400820891 *Qty: 1 BRACKET $16.92
Location: 42 Prev | Next Part: 420260701A *Qty: 1 PIPE $168.30
Location: 43 Prev | Next Part: 400820529 *Qty: 1 BRACKET $7.77
Location: 44 Prev | Next Part: N91096701 *Qty: 2 SCREW M6X16 $0.90
Location: 45 Prev | Next Part: N90996001 *Qty: 1 CLAMP $3.99
Location: 46 Prev | Next Part: 420819498 *Qty: 1 GASKET $11.17
Location: 47 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 48 Prev | Next Part: 8E0260759A *Qty: 2 SUPPORT Call
Location: 49 Prev | Next Part: 400819567 *Qty: 1 BRACKET $16.51
Location: 53 Prev | Next Part: N90687001 *Qty: 1 CLAMP $4.29
Location: 54 Prev | Next Part: 400819672 *Qty: 1 PIPE $135.66
Location: 55 Prev | Next Part: 400819189 *Qty: 1 SLEEVE Call
Location: 56 Prev | Next Part: 400819257 *Qty: 1 CONNECTOR Call
Location: 57 Prev | Next Part: N90770201 *Qty: 1 CLAMP $2.60
Location: 58 Prev | Next Part: 400260428 *Qty: 1 BRACKET $15.29
Location: 59 Prev | Next Part: 400260427 *Qty: 1 BRACKET $9.74
Location: 60 Prev | Next Part: 400260835 *Qty: 1 BRACKET $5.91
Location: 61 Prev | Next Part: N91096701 *Qty: 4 SCREW M6X16 $0.90
Location: 62 Prev | Next Part: N10017304 *Qty: 4 NUT M5 $0.90
Location: 63 Prev | Next Part: 400260197B *Qty: 2 BRACKET $22.71
Location: 64 Prev | Next Part: N10347204 *Qty: 8 SCREW M6X25 $0.90
Location: 65 Prev | Next Part: N01508213 *Qty: 1 NUT M6 $0.90
Location: 66 Prev | Next Part: N10414402 *Qty: 1 SCREW M8X28 $1.44
Location: 67 Prev | Next Part: N91096701 *Qty: 1 SCREW M6X16 $0.90
Location: 68 Prev | Next Part: N10415402 *Qty: 1 SCREW M8X40 $1.00
Location: 69 Prev | Next Part: N10082911 *Qty: 4 SCREW M6X16 $0.90
Location: 70 Prev | Next Part: N10569501 *Qty: 4 SCREW M5X16 $0.90
Location: 71 Prev | Next Part: *Qty: 0 DISTRIBUTION CLIMATE BOX (SEE TABLE 260.03.00 - SEE REF. 3) Call

* Quantity shown indicates the number of pieces used in the diagram.
