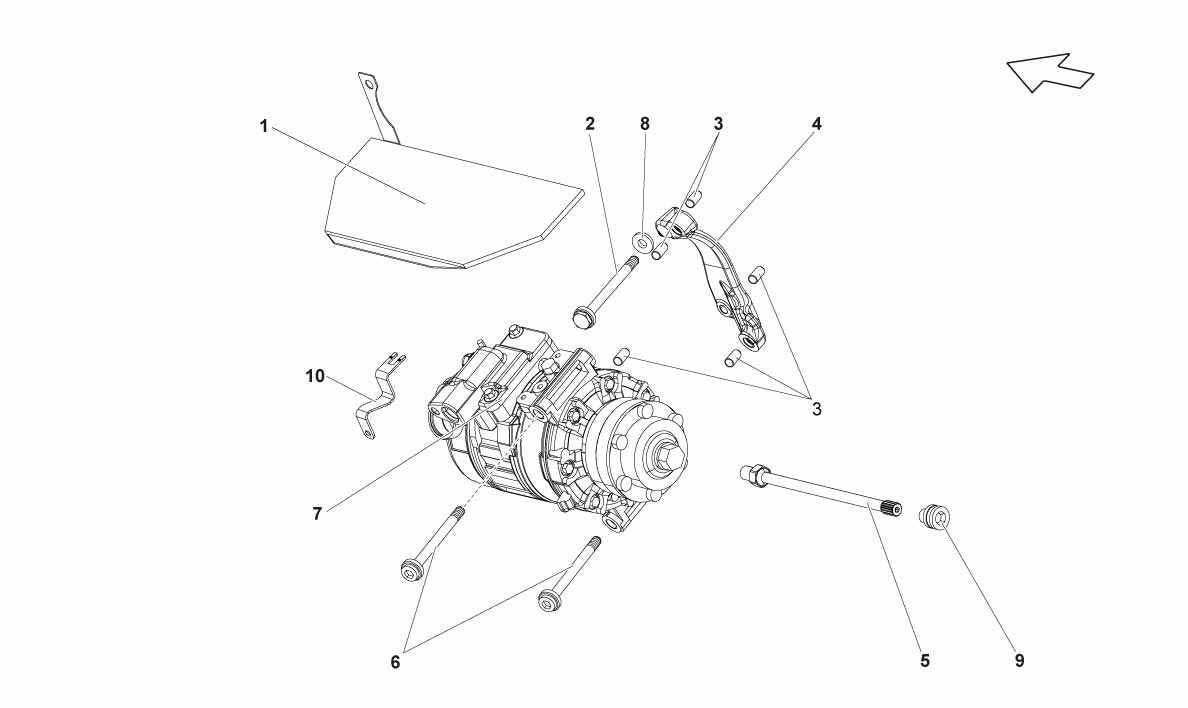

AIR CONDITIONING SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 7L145787 | 1 | HEAT SHIELD | Unavailable | |
| 2 | N91128701 | 2 | SCREW M8X32 | Unavailable | |
| 3 | 7K260817 | 4 | BUSHING | Unavailable | |
| 4 | 7L260885G | 1 | SUPPORT | Unavailable | |
| 5 | 7L260095C | 1 | PROPELLER SHAFT | Unavailable | |
| 6 | N10636501 | 2 | SCREW M8X90 | Unavailable | |
| 6 | N10636601 | 1 | SCREW M8X110X80 | Unavailable | |
| 7 | 4E0260805A | 1 | COMPRESSOR | Unavailable | |
| 8 | N0152785 | 1 | WASHER 8X16X2 | Unavailable | |
| 10 | 420260759C | 1 | SUPPORT | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
