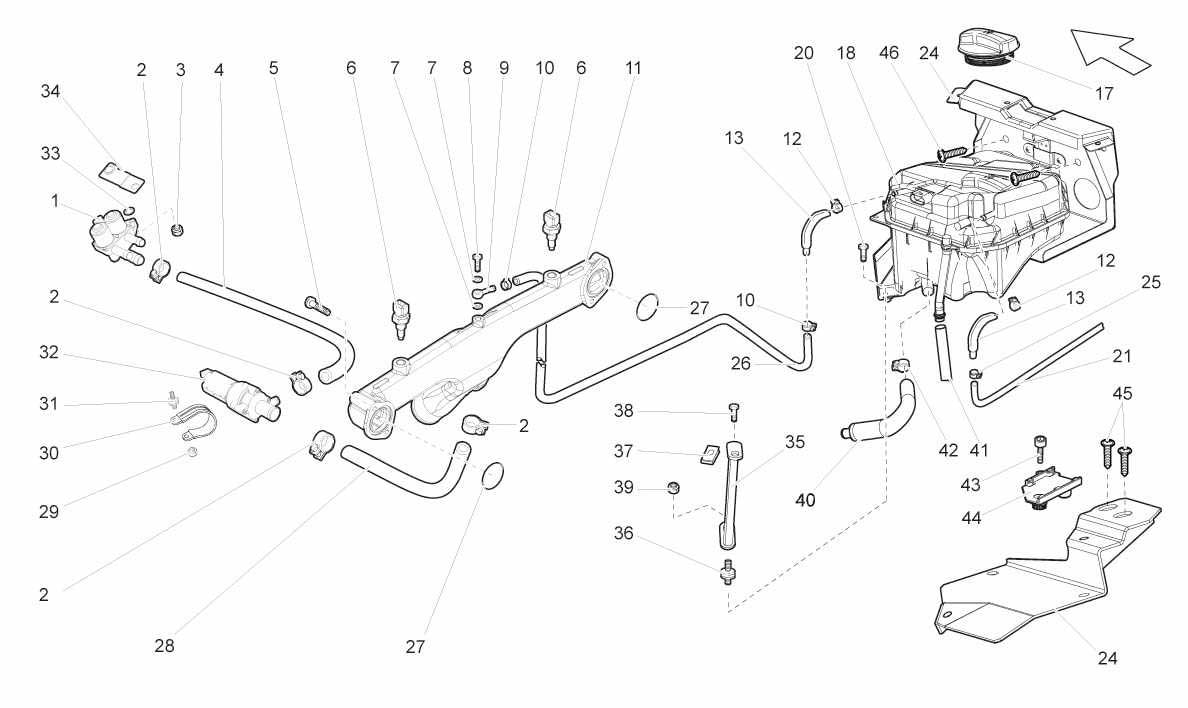

WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 400820036A 1 VALVE Unavailable
2 N0245203 6 CLAMP Unavailable
3 N90367502 1 NUT Unavailable
4 400819362 1 SLEEVE Unavailable
5 N10117405 2 SCREW Unavailable
6 7L919501A 2 WATER TEMPERATURE SENSOR Unavailable
7 N0138302 4 WASHER Unavailable
8 WHT000524 2 SCREW WITH HOLE Unavailable
9 N91104301 2 CONNECTOR Unavailable
10 400251189 1 CLAMP Unavailable
11 7L121045 1 CONNECTOR Unavailable
12 400251189E 2 CLAMP Unavailable
13 7L121434A 2 CONNECTOR Unavailable
17 1J0121321B 1 PLUG Unavailable
18 7L0121407E 1 WATER TANK Unavailable
20 N10158605 1 SCREW M6X20 Unavailable
21 7L121103 1 HOSE Unavailable
24 400121409A 1 BRACKET Unavailable
25 N91130601 1 CLAMP Unavailable
25 400251189 1 CLAMP Unavailable
26 7L121109 1 HOSE Unavailable
27 N10129201 2 O-RING Unavailable
28 400819159A 1 JUNCTION Unavailable
29 N01508213 1 NUT Unavailable
30 8834003 1 CLAMP Unavailable
31 400972081C 1 PUFFER Unavailable
32 78965561 1 WATER PUMP Unavailable
33 400864179 2 RUBBER WASHER Unavailable
34 400820761 1 BRACKET Unavailable
35 0 TIE ROD (VALID FOR A DIFFERENT MODEL) Unavailable
36 0 PUFFER (VALID FOR A DIFFERENT MODEL) Unavailable
37 0 CLIP (VALID FOR A DIFFERENT MODEL) Unavailable
38 0 SCREW M6X20.0 (VALID FOR A DIFFERENT MODEL) Unavailable
39 0 NUT (VALID FOR A DIFFERENT MODEL) Unavailable
40 7L121167B 1 HOSE Unavailable
41 7L121428A 1 HOSE Unavailable
42 N10255601 1 CLAMP Unavailable
43 N10124308 2 SCREW M6X20.0 Unavailable
44 7L0121093A 1 BRACKET Unavailable
45 N90365912 2 SCREW M8X16 Unavailable
46 WHT002225A 2 SCREW M8X16 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
