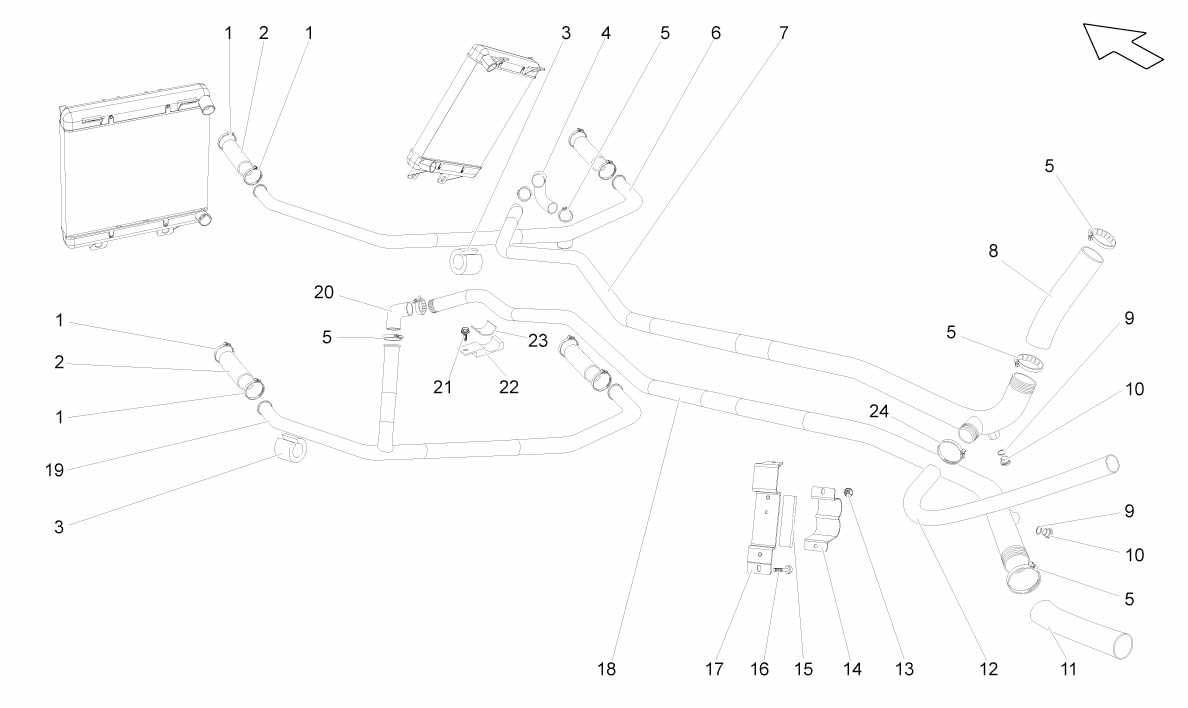

WATER COOLING SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | N91115301 | 8 | CLAMP | Unavailable | |
| 2 | 7L121074A | 4 | SLEEVE | Unavailable | |
| 3 | 7L121199 | 2 | PROTECTION | Unavailable | |
| 4 | 7L121163 | 1 | SLEEVE | Unavailable | |
| 5 | N0245022 | 2 | CLAMP | Unavailable | |
| 6 | 7L121510 | 1 | PIPE | Unavailable | |
| 7 | 7L121494 | 1 | PIPE | Unavailable | |
| 8 | 7L121074 | 1 | SLEEVE | Unavailable | |
| 9 | N0138494 | 2 | WASHER | Unavailable | |
| 10 | N0160276 | 2 | PLUG | Unavailable | |
| 11 | 7L121057D | 1 | PIPE | Unavailable | |
| 12 | 7L121499 | 1 | PIPE | Unavailable | |
| 13 | N90367503 | 8 | NUT | Unavailable | |
| 14 | 400121094B | 2 | BRACKET | Unavailable | |
| 15 | 400121150A | 2 | GASKET | Unavailable | |
| 16 | N90533002 | 8 | SCREW | Unavailable | |
| 17 | 400121079B | 2 | BRACKET | Unavailable | |
| 18 | 7L121519 | 1 | PIPE | Unavailable | |
| 19 | 7L121508 | 1 | PIPE | Unavailable | |
| 20 | 7L121057B | 1 | SLEEVE | Unavailable | |
| 21 | N10005108 | 4 | SCREW | Unavailable | |
| 22 | 400121264A | 2 | BRACKET | Unavailable | |
| 23 | 400121150A | 2 | GASKET | Unavailable | |
| 24 | N0245066 | 2 | CLAMP | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
