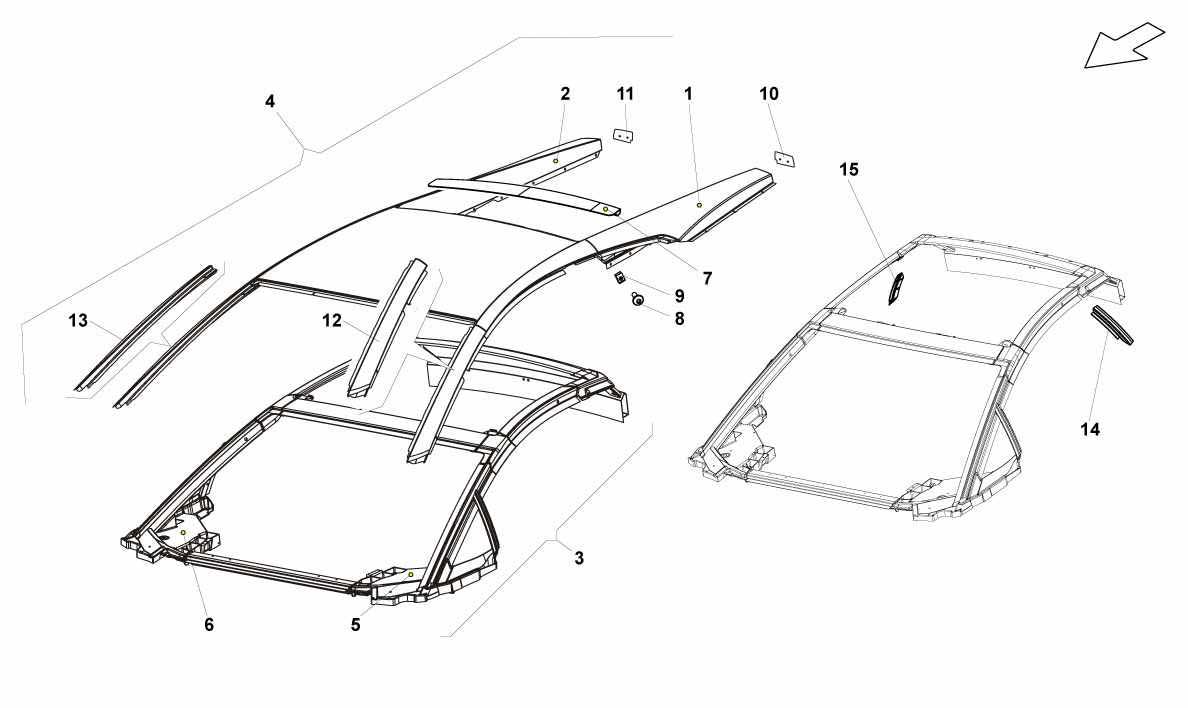

ROOF PANEL

Go to Split View

ROOF PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 408809267 *Qty: 1 EXTERNAL C A-PILLAR $779.99
Location: 2 Prev | Next Part: 408809268 *Qty: 1 EXTERNAL C A-PILLAR $779.99
Location: 3 Prev | Next Part: 408817021 *Qty: 1 ROOF FRAME $8,952.43
Location: 4 Prev | Next Part: 408817101 *Qty: 1 ROOF PANEL $12,925.31
Location: 5 Prev | Next Part: 400805151C *Qty: 1 A-PILLAR COVER $1,447.59
Location: 6 Prev | Next Part: 400805152C *Qty: 1 A-PILLAR COVER $1,447.59
Location: 7 Prev | Next Part: 408853236C *Qty: 1 ROOF FRAME COMPLETION $1,189.60
Location: 8 Prev | Next Part: N90986803 *Qty: 5 SCREW ST4.2X13 $0.90
Location: 9 Prev | Next Part: N90698801 *Qty: 5 CLIP $0.90
Location: 10 Prev | Next Part: 400809649 *Qty: 1 INSERT $63.78
Location: 11 Prev | Next Part: 400809650 *Qty: 1 INSERT $63.78
Location: 12 Prev | Next Part: 408809245 *Qty: 1 EXTERNAL A A-PILLAR $681.15
Location: 13 Prev | Next Part: 408809246 *Qty: 1 EXTERNAL A A-PILLAR $681.15
Location: 14 Prev | Next Part: 408809891 *Qty: 1 EXTERNAL B-PILLAR $202.83
Location: 15 Prev | Next Part: 408809892 *Qty: 1 EXTERNAL B-PILLAR $202.83

* Quantity shown indicates the number of pieces used in the diagram.
