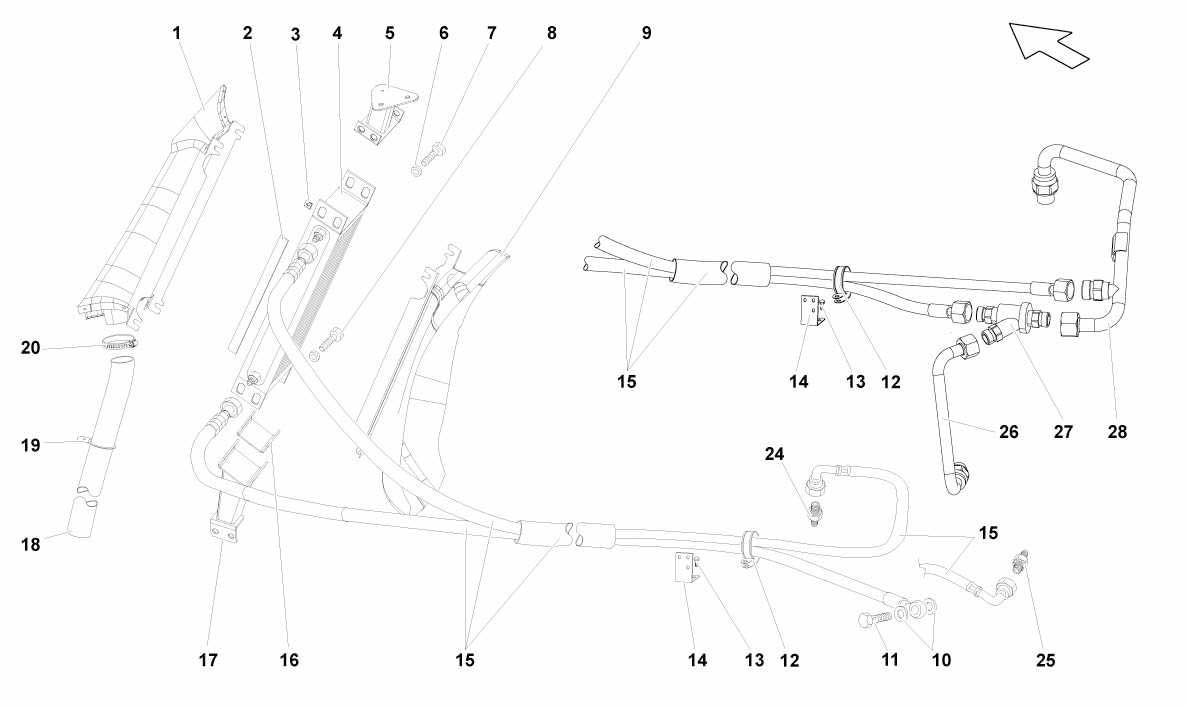

OIL COOLER

Go to Split View

OIL COOLER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400317026 *Qty: 1 RH CONVEYOR $413.38
Location: 2 Prev | Next Part: 400121539E *Qty: 4 GASKET $17.76
Location: 3 Prev | Next Part: N90327506 *Qty: 2 CLIP $0.90
Location: 4 Prev | Next Part: 86317019B *Qty: 1 OIL COOLER $1,674.64
Location: 5 Prev | Next Part: 400317830B *Qty: 1 BRACKET $199.07
Location: 6 Prev | Next Part: N90533002 *Qty: 4 WASHER $1.36
Location: 7 Prev | Next Part: N90533002 *Qty: 2 SCREW $1.36
Location: 8 Prev | Next Part: N10082911 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 400117336 *Qty: 1 COOLER EXIT CONE $568.66
Location: 10 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 11 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 12 Prev | Next Part: 86317171A *Qty: 1 CLAMP $2.17
Location: 13 Prev | Next Part: N91065401 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 86317829 *Qty: 2 BRACKET $31.10
Location: 15 Prev | Next Part: 400317806C *Qty: 1 PIPES SET $633.03
Location: 16 Prev | Next Part: 400121539C *Qty: 2 GASKET $13.58
Location: 17 Prev | Next Part: 400317829C *Qty: 1 BRACKET $173.30
Location: 18 Prev | Next Part: 400903667 *Qty: 1 PIPE SET $221.42
Location: 19 Prev | Next Part: 400131437 *Qty: 1 RING $15.44
Location: 20 Prev | Next Part: N91115301 *Qty: 1 CLAMP $6.70
Location: 24 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 25 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 26 Prev | Next Part: 400317807B *Qty: 1 PIPE (OIL FLOW) $174.56
Location: 27 Prev | Next Part: 4D0317027 *Qty: 1 TEMPERATURE REGULATOR $81.44
Location: 28 Prev | Next Part: 400317808C *Qty: 1 PIPE (OIL RETURN) $275.62

* Quantity shown indicates the number of pieces used in the diagram.
