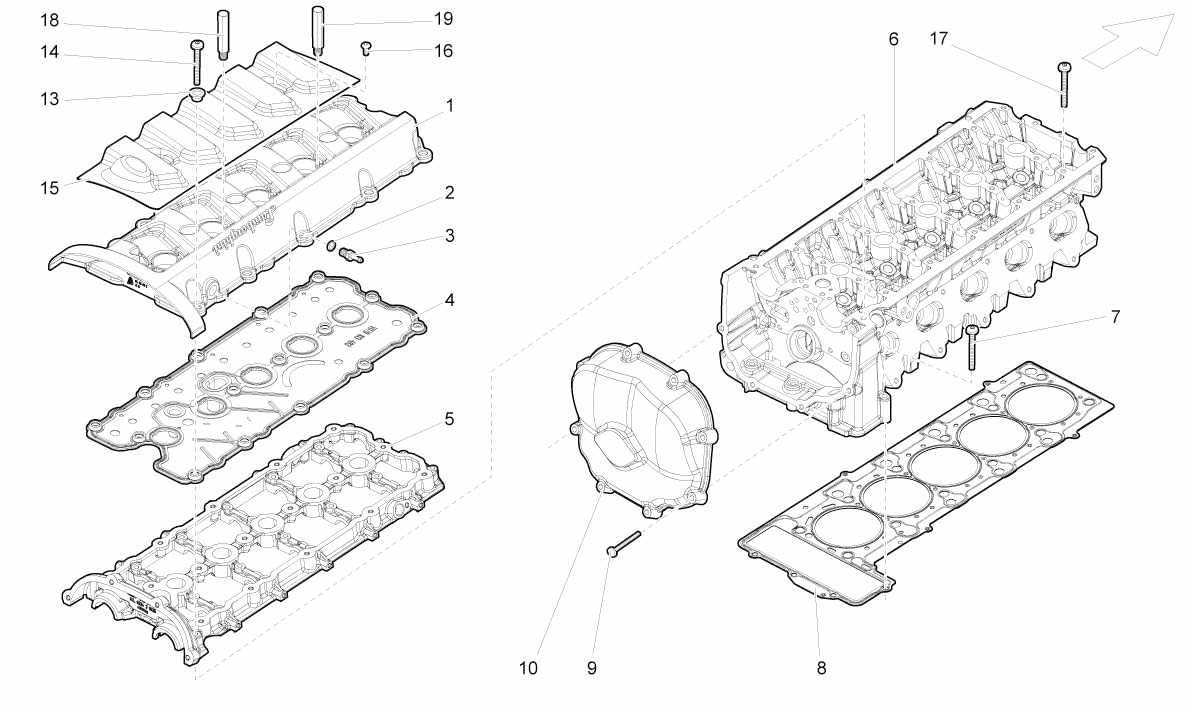

LEFT CYLINDER HEAD COVERS

Go to Split View

LEFT CYLINDER HEAD COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L103475F *Qty: 1 COVER $793.60
Location: 2 Prev | Next Part: N0138486 *Qty: 1 WASHER Superseded
Location: 3 Prev | Next Part: 7L103606A *Qty: 1 CONNECTOR $36.24
Location: 4 Prev | Next Part: 7L103483D *Qty: 1 GASKET $375.26
Location: 5 Prev | Next Part: *Qty: 1 LH SET PLATE (CANNOT BE SOLD SEPARATELY - SEE REF. 6) Call
Location: 6 Prev | Next Part: 7L103063A *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD Call
Location: 6 Prev | Next Part: 7L103063A *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD (UP TO ENGINE 07LA05271) Call
Location: 7 Prev | Next Part: N10470704 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 7L103383H *Qty: 1 GASKET $142.00
Location: 9 Prev | Next Part: N10156206 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 6E109285D *Qty: 1 COVER $51.13
Location: 13 Prev | Next Part: 7L103195A *Qty: 16 BUSHING $6.18
Location: 14 Prev | Next Part: N90917201 *Qty: 14 SCREW $0.90
Location: 15 Prev | Next Part: 7L103908 *Qty: 1 COVER $165.24
Location: 16 Prev | Next Part: N10335202 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: WHT000374 *Qty: 12 SCREW $20.06
Location: 18 Prev | Next Part: 7L103728A *Qty: 1 STUD - 38 mm $16.20
Location: 19 Prev | Next Part: 7L103728 *Qty: 1 STUD - 32 mm $16.11

* Quantity shown indicates the number of pieces used in the diagram.
