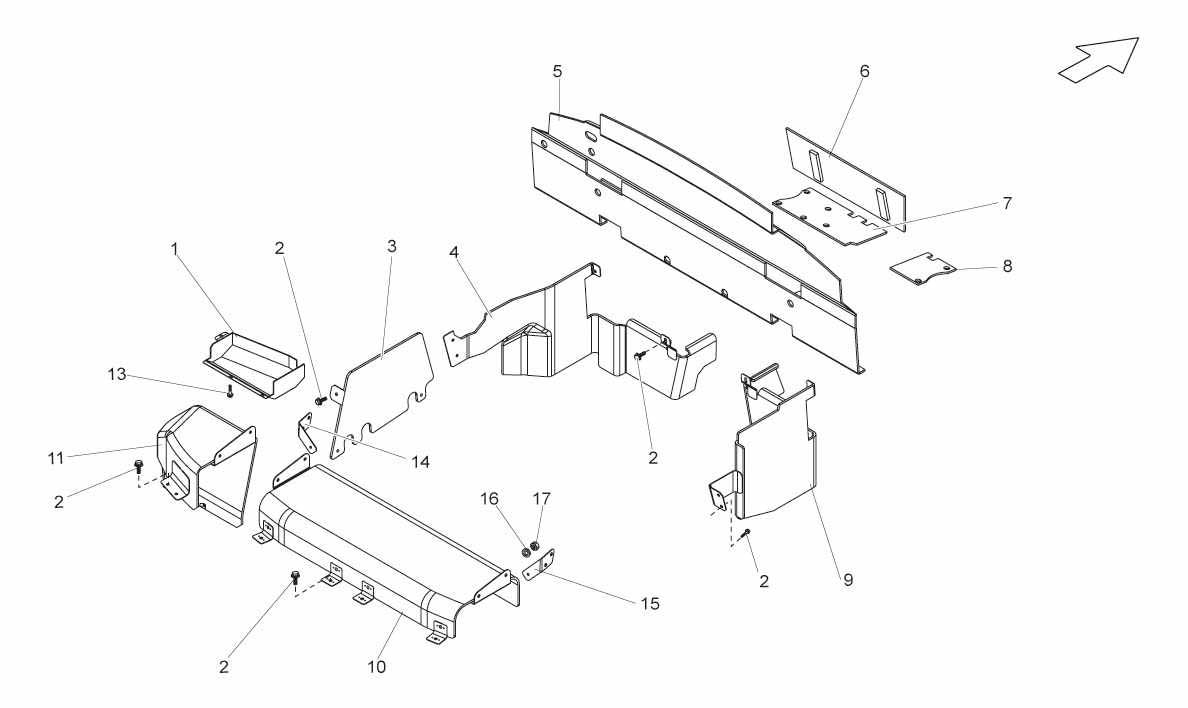

HEAT SHIELD

Go to Split View

HEAT SHIELD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400103755 *Qty: 1 PROTECTION $172.03
Location: 2 Prev | Next Part: N90847903 *Qty: 8 SCREW $0.90
Location: 3 Prev | Next Part: 400501716 *Qty: 1 LH PANEL $218.92
Location: 3 Prev | Next Part: 400501715 *Qty: 1 RH PANEL $218.92
Location: 4 Prev | Next Part: 400201783 *Qty: 1 LH PANEL $641.10
Location: 5 Prev | Next Part: 400103747 *Qty: 1 FIREPROOF SHIELD $422.20
Location: 6 Prev | Next Part: 400103754 *Qty: 1 RH PANEL $93.84
Location: 6 Prev | Next Part: 400103753 *Qty: 1 LH PANEL $93.84
Location: 7 Prev | Next Part: 400103749 *Qty: 1 LH PANEL $86.02
Location: 8 Prev | Next Part: 400103750 *Qty: 1 RH PANEL $39.11
Location: 9 Prev | Next Part: 400201782 *Qty: 1 RH PANEL $586.38
Location: 10 Prev | Next Part: 408251413C *Qty: 1 PROTECTION (USE REF. 14 - 15 - 16 - 17) $813.46
Location: 11 Prev | Next Part: *Qty: 1 RH COVER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 11 Prev | Next Part: *Qty: 1 LH COVER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 13 Prev | Next Part: N90847903 *Qty: 3 SCREW $0.90
Location: 14 Prev | Next Part: 400251529 *Qty: 1 LH BRACKET $47.65
Location: 15 Prev | Next Part: 400251530 *Qty: 1 RH BRACKET $19.31
Location: 16 Prev | Next Part: N0115478 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: N01118312 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
