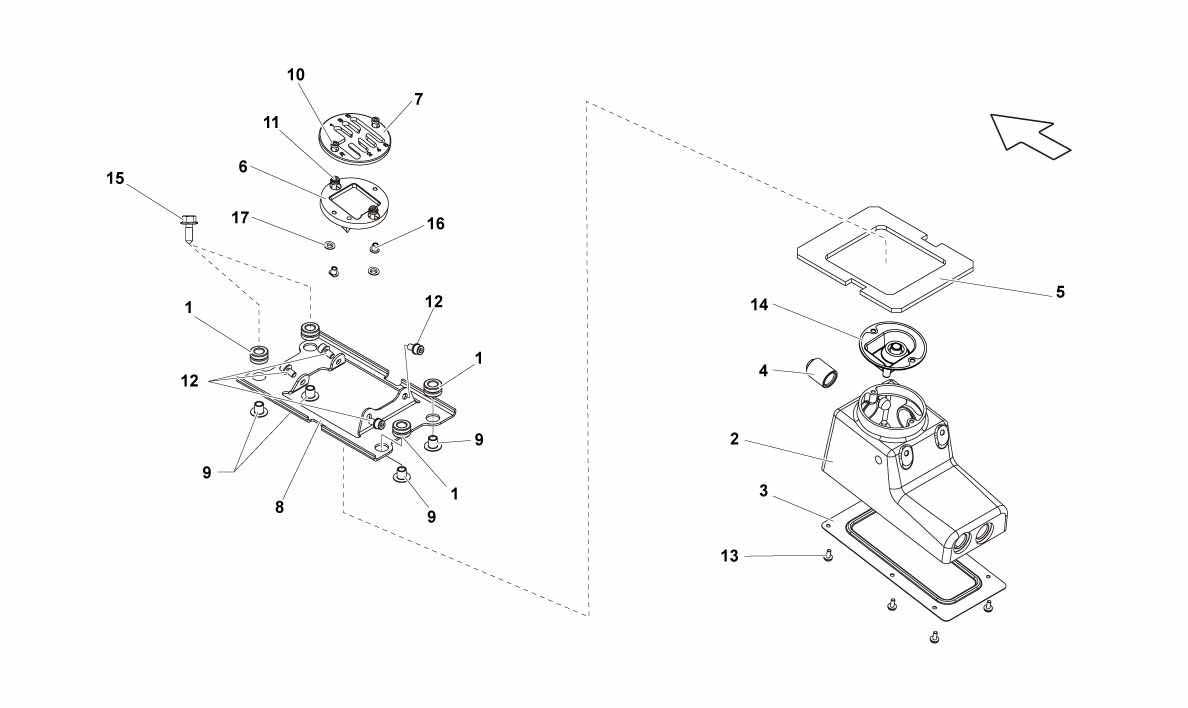

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 357711798 *Qty: 4 RUBBER SEAL $2.15
Location: 1 Prev | Next Part: 357711798 *Qty: 4 RUBBER SEAL $2.15
Location: 2 Prev | Next Part: 400711061A *Qty: 1 SHIFT LEVER SUPPORT (UNTIL THE VIN 7LA04900) Call
Location: 2 Prev | Next Part: 400711061B *Qty: 1 SHIFT LEVER SUPPORT (FROM VIN 7LA04901) $746.38
Location: 2 Prev | Next Part: 400711061A *Qty: 1 SHIFT LEVER SUPPORT (UNTIL THE VIN 7LA04900) Call
Location: 2 Prev | Next Part: 400711061B *Qty: 1 SHIFT LEVER SUPPORT (FROM VIN 7LA04901) $746.38
Location: 3 Prev | Next Part: 400711090 *Qty: 1 COVER $69.46
Location: 3 Prev | Next Part: 400711090 *Qty: 1 COVER $69.46
Location: 4 Prev | Next Part: 400711227 *Qty: 1 BUSH $72.89
Location: 4 Prev | Next Part: 400711227 *Qty: 1 BUSH $72.89
Location: 5 Prev | Next Part: 400711267 *Qty: 1 GASKET (UNTIL THE VIN 7LA04900) $32.43
Location: 5 Prev | Next Part: 400711267A *Qty: 1 GASKET (FROM VIN 7LA04901) $92.61
Location: 5 Prev | Next Part: 400711267 *Qty: 1 GASKET (UNTIL THE VIN 7LA04900) $32.43
Location: 5 Prev | Next Part: 400711267A *Qty: 1 GASKET (FROM VIN 7LA04901) $92.61
Location: 6 Prev | Next Part: 400711565 *Qty: 1 SPACER $460.99
Location: 6 Prev | Next Part: 400711565 *Qty: 1 SPACER $460.99
Location: 7 Prev | Next Part: 400713109 *Qty: 1 SELECTOR PLATE $402.46
Location: 7 Prev | Next Part: 400713109 *Qty: 1 SELECTOR PLATE $402.46
Location: 8 Prev | Next Part: 400713292A *Qty: 1 SUPPORT (FROM VIN 7LA04901) Call
Location: 8 Prev | Next Part: 400713292 *Qty: 1 SUPPORT (UNTIL THE VIN 7LA04900) $50.02
Location: 8 Prev | Next Part: 400713292A *Qty: 1 SUPPORT (FROM VIN 7LA04901) Call
Location: 8 Prev | Next Part: 400713292 *Qty: 1 SUPPORT (UNTIL THE VIN 7LA04900) $50.02
Location: 9 Prev | Next Part: 1J0711795D *Qty: 4 SPACER $4.29
Location: 9 Prev | Next Part: 1J0711795D *Qty: 4 SPACER $4.29
Location: 10 Prev | Next Part: N91101801 *Qty: 2 SCREW $26.21
Location: 10 Prev | Next Part: N91101801 *Qty: 2 SCREW $26.21
Location: 11 Prev | Next Part: N10226101 *Qty: 2 SCREW $0.91
Location: 11 Prev | Next Part: N10226101 *Qty: 2 SCREW $0.91
Location: 11 Prev | Next Part: N91126601 *Qty: 2 SCREW M6X16 $0.90
Location: 11 Prev | Next Part: N91126601 *Qty: 2 SCREW M6X16 $0.90
Location: 12 Prev | Next Part: N91065401 *Qty: 4 SCREW $0.90
Location: 12 Prev | Next Part: N91065401 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: N90944603 *Qty: 6 SCREW $0.90
Location: 13 Prev | Next Part: N90944603 *Qty: 6 SCREW $0.90
Location: 14 Prev | Next Part: 400711527 *Qty: 1 BOOT $117.79
Location: 14 Prev | Next Part: 400711527 *Qty: 1 BOOT $117.79
Location: 15 Prev | Next Part: N90166803 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: N90166803 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 16 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 0 SPACER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 0 SPACER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
