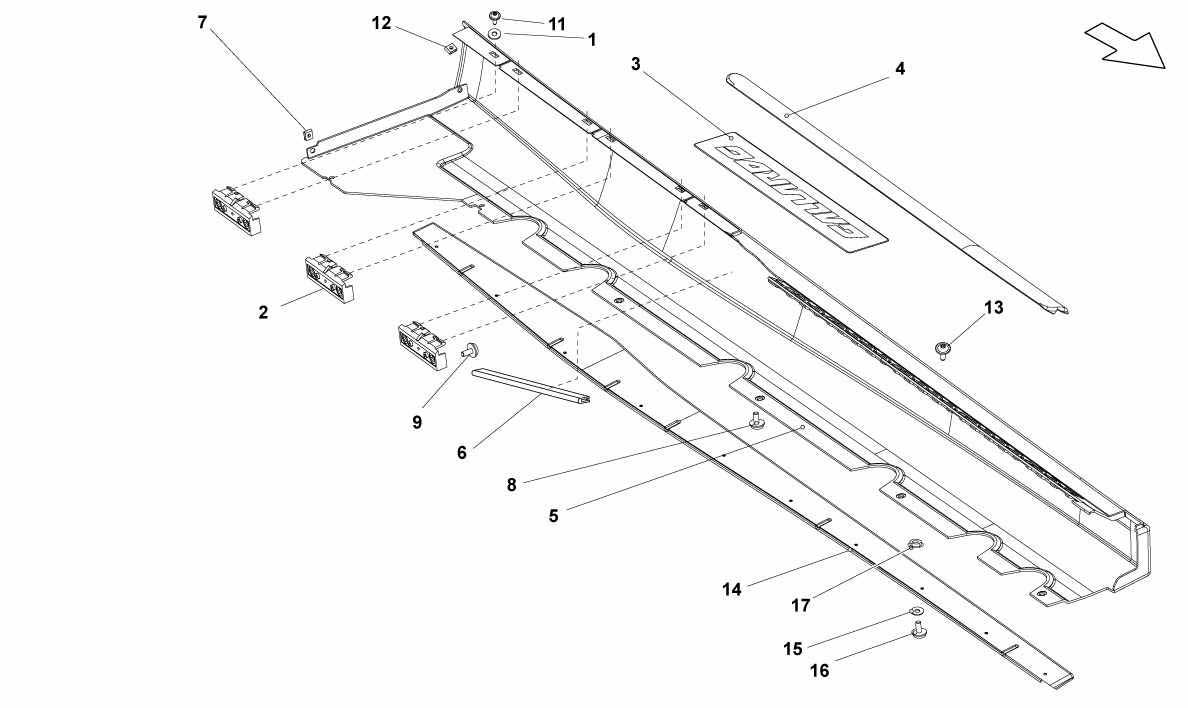

EXTERNAL SIDE MEMBER

Go to Split View

EXTERNAL SIDE MEMBER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 12 WASHER $0.90
Location: 2 Prev | Next Part: 400807286 *Qty: 6 BUMPER SIDE BRACKET $82.61
Location: 3 Prev | Next Part: 400853373 *Qty: 2 SCUFF PLATE $87.80
Location: 3 Prev | Next Part: 400853373C *Qty: 2 SCUFF PLATE (OPTIONAL MADE OF STAINLESS STEEL) $205.45
Location: 4 Prev | Next Part: 400853492B *Qty: 1 RH SIDE MEMBER MOLDING $150.54
Location: 4 Prev | Next Part: 400853491B *Qty: 1 LH SIDE MEMBER MOLDING $150.54
Location: 5 Prev | Next Part: 400853564 *Qty: 1 SIDE MEMBER COVER- OUTER RH $716.03
Location: 5 Prev | Next Part: 400853563 *Qty: 1 SIDE MEMBER COVER- OUTER LH $716.03
Location: 6 Prev | Next Part: 400853893 *Qty: 2 SIDE MEMBER SEAL $5.89
Location: 7 Prev | Next Part: N90327506 *Qty: 8 CLIP $0.90
Location: 8 Prev | Next Part: N90807401 *Qty: 10 SCREW M5X18 $0.90
Location: 9 Prev | Next Part: N90847903 *Qty: 12 SCREW $0.90
Location: 11 Prev | Next Part: WHT001190 *Qty: 12 SCREW $1.43
Location: 12 Prev | Next Part: N90342503 *Qty: 8 CLIP $0.90
Location: 13 Prev | Next Part: N90857301 *Qty: 12 SCREW $0.90
Location: 14 Prev | Next Part: *Qty: 1 SIDE SKIRT (FOR SUPERLEGGERA MODEL) Call
Location: 15 Prev | Next Part: *Qty: 20 WASHER (FOR SUPERLEGGERA MODEL) Call
Location: 16 Prev | Next Part: *Qty: 20 SCREW (FOR SUPERLEGGERA MODEL) Call
Location: 17 Prev | Next Part: *Qty: 20 NUT M5 (FOR SUPERLEGGERA MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
