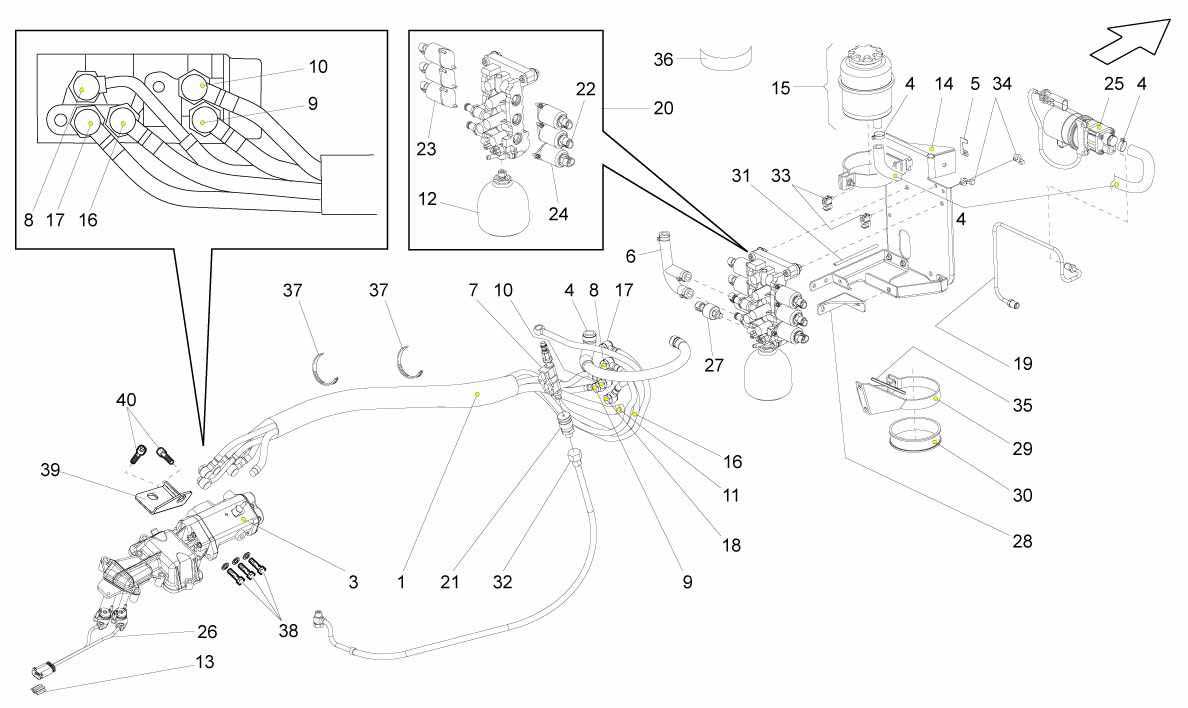

E-GEAR VALVES GROUP

Go to Split View

E-GEAR VALVES GROUP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86317831 *Qty: 1 SHEATH Unavailable
Location: 3 Prev | Next Part: 86325059 *Qty: 1 ACTUATOR GROUP Unavailable
Location: 4 Prev | Next Part: 86325083 *Qty: 1 TUBE KIT Unavailable
Location: 5 Prev | Next Part: 86325085 *Qty: 1 ANCHORAGE CONNECTOR KIT Unavailable
Location: 6 Prev | Next Part: 86325087 *Qty: 1 THREE-WAY PIPE KIT Unavailable
Location: 7 Prev | Next Part: 86325089A *Qty: 1 KIT QUICK DISCONNECT (FROM VIN 6LA04010) Unavailable
Location: 7 Prev | Next Part: 86325089 *Qty: 1 KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009) Unavailable
Location: 8 Prev | Next Part: 86325095 *Qty: 1 TUBE EV2 Unavailable
Location: 9 Prev | Next Part: 86325097 *Qty: 1 TUBE EV3 Unavailable
Location: 10 Prev | Next Part: 86325107 *Qty: 1 TUBE EV1 Unavailable
Location: 11 Prev | Next Part: 86325111 *Qty: 1 TUBE I RECIRCULATE KIT Unavailable
Location: 12 Prev | Next Part: 86325141A *Qty: 1 STORAGE BATTERY Unavailable
Location: 13 Prev | Next Part: 86325147 *Qty: 1 CLIP Unavailable
Location: 14 Prev | Next Part: 86325153 *Qty: 1 BRACKETS Unavailable
Location: 15 Prev | Next Part: 86325161 *Qty: 1 OIL TANK KIT Unavailable
Location: 16 Prev | Next Part: 86325163 *Qty: 1 TUBE EV4 Unavailable
Location: 17 Prev | Next Part: 86325165 *Qty: 1 TUBE EV5 Unavailable
Location: 18 Prev | Next Part: 86325171 *Qty: 1 TUBE EVF Unavailable
Location: 19 Prev | Next Part: 86325179 *Qty: 1 HIGH PRESSURE TUBE Unavailable
Location: 20 Prev | Next Part: 86325181C *Qty: 1 VALVES GROUP Unavailable
Location: 21 Prev | Next Part: 86325273A *Qty: 1 CONNECTION (FROM VIN 6LA04010) Unavailable
Location: 21 Prev | Next Part: 86325273 *Qty: 1 FEMALE CONNECTION (UNTIL THE VIN 6LA04009) Unavailable
Location: 22 Prev | Next Part: 86325293 *Qty: 1 ACTUATOR - VALVE PPV02 (PACKING + LIVES) Unavailable
Location: 23 Prev | Next Part: 86325295 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) Unavailable
Location: 24 Prev | Next Part: 86325297 *Qty: 1 ACTUATOR - VALVE QPV02 (PACKING + LIVES) Unavailable
Location: 25 Prev | Next Part: 86901137 *Qty: 1 ELECTRIC PUMP KIT Unavailable
Location: 26 Prev | Next Part: 86907811 *Qty: 1 POSITION SENSORS KIT Unavailable
Location: 27 Prev | Next Part: 86919331 *Qty: 1 PRESSURE SENSOR Unavailable
Location: 28 Prev | Next Part: 408326125 *Qty: 1 BRACKET Unavailable
Location: 29 Prev | Next Part: 408326127 *Qty: 1 CLAMP Unavailable
Location: 30 Prev | Next Part: 408326129 *Qty: 1 RUBBER COLLAR Unavailable
Location: 31 Prev | Next Part: 408326131 *Qty: 1 RUBBER GASKET Unavailable
Location: 32 Prev | Next Part: 7L115673 *Qty: 1 TUBE Unavailable
Location: 33 Prev | Next Part: 86325831A *Qty: 2 CLAMP Unavailable
Location: 34 Prev | Next Part: 86325831B *Qty: 2 CLAMP Unavailable
Location: 35 Prev | Next Part: 408326131A *Qty: 1 RUBBER GASKET Unavailable
Location: 36 Prev | Next Part: 86010530 *Qty: 1 NAMEPLATE Unavailable
Location: 37 Prev | Next Part: 400971850B *Qty: 2 CLAMP Unavailable
Location: 38 Prev | Next Part: 86398199A *Qty: 3 BLEEDER Unavailable
Location: 39 Prev | Next Part: 86325191 *Qty: 1 BRACKET Unavailable
Location: 40 Prev | Next Part: N91065401 *Qty: 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
