CRANKCASE

Go to Split View

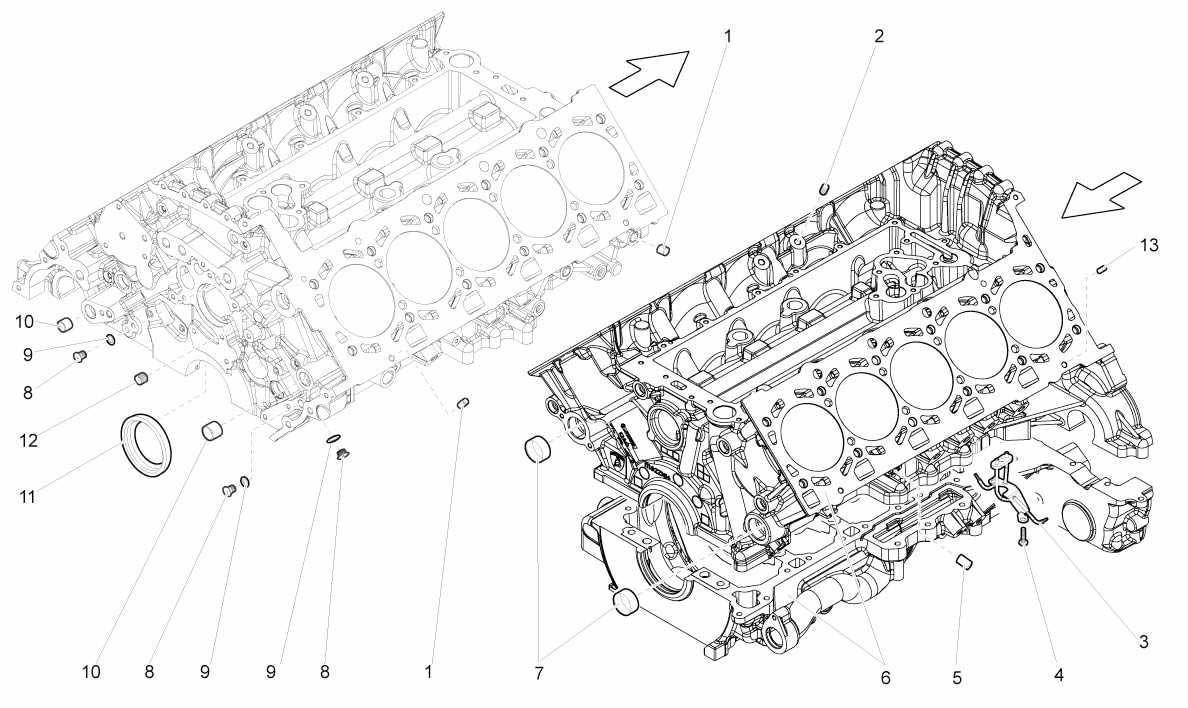

CRANKCASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 77115143 *Qty: 2 DOWEL $2.96
Location: 2 Prev | Next Part: N0222221 *Qty: 5 THREADED BUSH $1.44
Location: 3 Prev | Next Part: 79103158D *Qty: 5 NOZZLE FOR PISTONS COOLING $25.48
Location: 4 Prev | Next Part: N10617401 *Qty: 15 SCREW M6X16 $1.44
Location: 5 Prev | Next Part: 78260817 *Qty: 3 BUSHING $1.08
Location: 6 Prev | Next Part: 79103051G *Qty: 1 ENGINE BLOCK (UP TO ENGINE 07L02081) $37.32
Location: 6 Prev | Next Part: 7L103011R *Qty: 1 ENGINE BLOCK $13,256.72
Location: 7 Prev | Next Part: *Qty: 0 PLUG (CANNOT BE SOLD SEPARATELY) Call
Location: 8 Prev | Next Part: N91119401 *Qty: 3 PLUG $2.23
Location: 9 Prev | Next Part: N0138064 *Qty: 3 SEAL RING $0.90
Location: 10 Prev | Next Part: 22103139 *Qty: 2 BUSHING $1.91
Location: 11 Prev | Next Part: 7L103051A *Qty: 1 SEAL RING $56.98
Location: 12 Prev | Next Part: N0222011 *Qty: 1 THREADED BUSH $3.45
Location: 13 Prev | Next Part: 77115143B *Qty: 4 DOWEL $0.90

* Quantity shown indicates the number of pieces used in the diagram.
