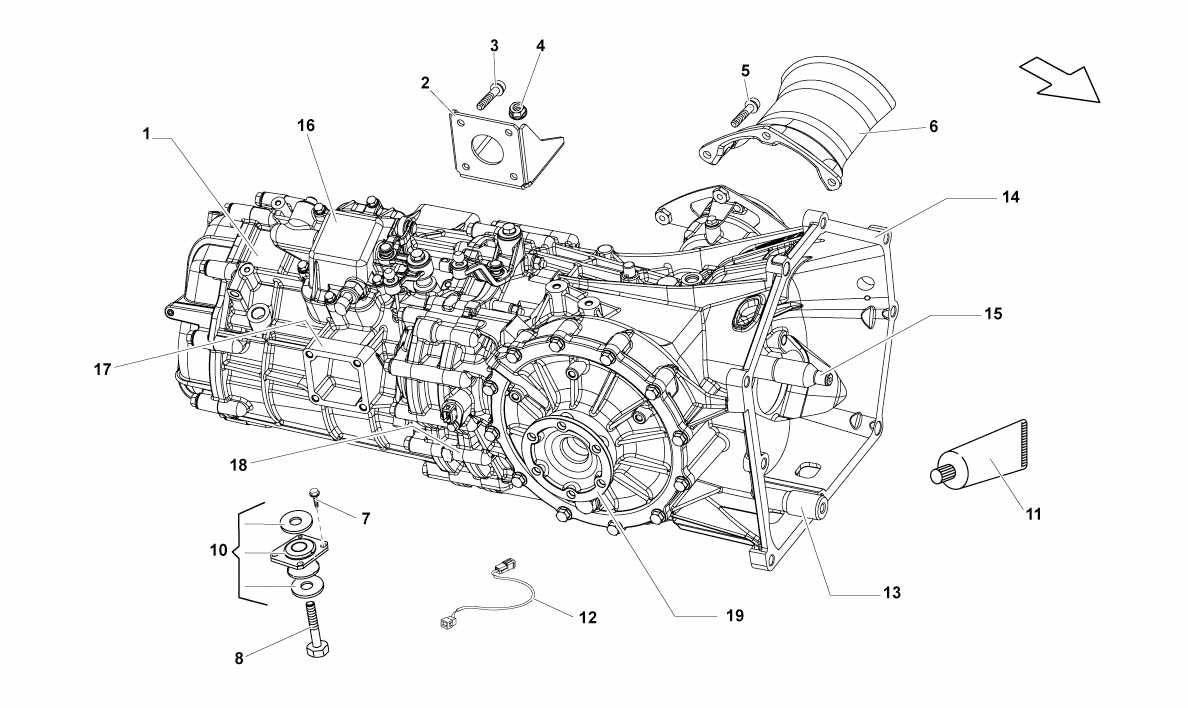

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86300046 *Qty: 1 MANUAL GEARBOX $34,246.53
Location: 1 Prev | Next Part: 86300046A *Qty: 1 E-GEAR GEARBOX $32,037.12
Location: 2 Prev | Next Part: 400399113B *Qty: 2 SUPPORT $28.99
Location: 3 Prev | Next Part: N91048802 *Qty: 8 SCREW $1.01
Location: 4 Prev | Next Part: N10717501 *Qty: 2 NUT $7.88
Location: 5 Prev | Next Part: N91065401 *Qty: 6 SCREW $0.90
Location: 6 Prev | Next Part: 8E0501713 *Qty: 2 PANEL $40.01
Location: 7 Prev | Next Part: N90630501 *Qty: 8 SCREW $1.99
Location: 8 Prev | Next Part: N90625101 *Qty: 2 SCREW $9.49
Location: 10 Prev | Next Part: 400399151 *Qty: 2 FLEXIBLE SUPPORT $155.26
Location: 11 Prev | Next Part: 900000130 *Qty: 1 GREASE $40.66
Location: 13 Prev | Next Part: *Qty: 0 DRIVEN SHAFT (SEE TABLE 301.11.00 / 301.12.00) Call
Location: 14 Prev | Next Part: *Qty: 0 GEARBOX / REAR DIFFERENTIAL CASE (SEE TABLE 301.02.00) Call
Location: 15 Prev | Next Part: *Qty: 0 MAIN SHAFT (SEE TABLE 301.10.00) Call
Location: 16 Prev | Next Part: *Qty: 0 MECHANICAL ACTUATOR (SEE TABLE 301.04.00) Call
Location: 17 Prev | Next Part: *Qty: 0 GEARBOX OIL PUMP (SEE TABLE 301.03.00) Call
Location: 18 Prev | Next Part: *Qty: 0 GEARBOX SHIFTING RODS AND FORKS (SEE TABLE 301.09.00) Call
Location: 19 Prev | Next Part: *Qty: 0 REAR DIFFERENTIAL (SEE TABLE 301.13.00) Call

* Quantity shown indicates the number of pieces used in the diagram.
