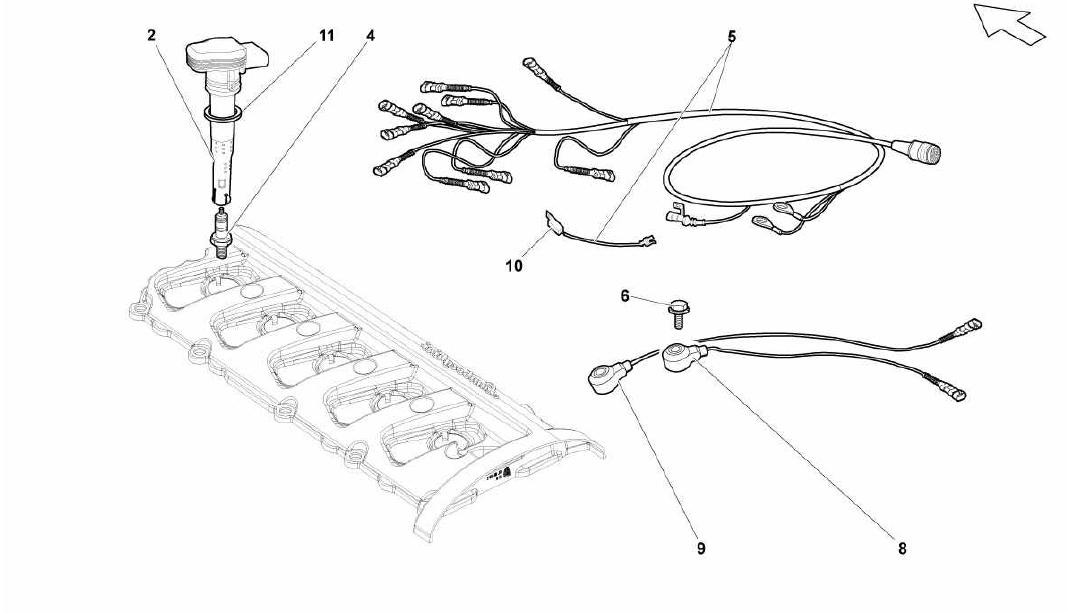

SYSTEM IGNITION

Go to Split View

SYSTEM IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 7K905715 *Qty: 10 BLACK COIL (FROM THE ENGINE 07L01313) $69.80
Location: 2 Prev | Next Part: 6F905115B *Qty: 10 BLACK COIL (UP TO ENGINE 07L01312) $111.95
Location: 4 Prev | Next Part: 101905619 *Qty: 10 SPARK PLUG $55.63
Location: 5 Prev | Next Part: 7L905531B *Qty: 1 IGNITION WIRING (BANK 1-5) (UP TO ENGINE 07L01312 INCL. REPLACE WIRING FOR BOTH BANKS) $344.33
Location: 5 Prev | Next Part: 7L905533B *Qty: 1 IGNITION WIRING (BANK 6-10) (UP TO ENGINE 07L01312 INCL. REPLACE WIRING FOR BOTH BANKS) $996.07
Location: 6 Prev | Next Part: N10025004 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 54905377H *Qty: 1 SENSOR $38.67
Location: 9 Prev | Next Part: 54905377H *Qty: 1 SENSOR $38.67
Location: 10 Prev | Next Part: 400971164 *Qty: 2 WIRING HARNESS $76.99
Location: 11 Prev | Next Part: 11015742 *Qty: 10 IGNITION COIL GASKET $4.61

* Quantity shown indicates the number of pieces used in the diagram.
