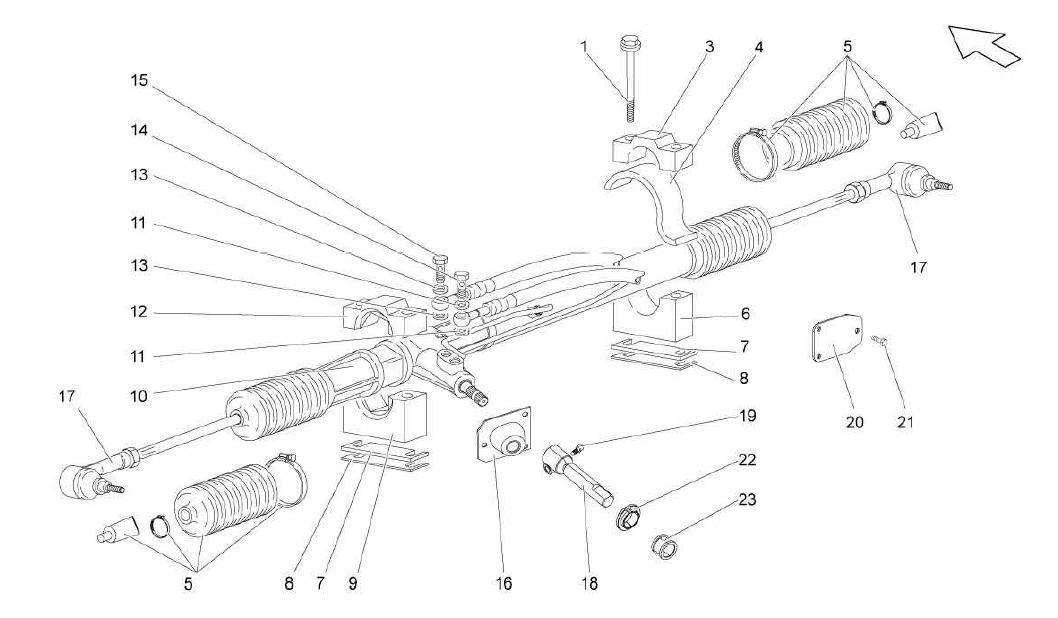

STEERING RACK

Location Part # Quantity* Description Price Add To Cart
1 N10186105 4 SCREW BM10X90X45 Unavailable
3 400422874 1 RIGHT SUPPORT Unavailable
4 400422850 1 RUBBER SHIM Unavailable
5 400419831B 2 BOOT KIT Unavailable
6 400422761B 1 RIGHT SUPPORT Unavailable
7 400422407 4 1MM ADJUSTMENT SHIM Unavailable
8 400422407A 12 0.5MM ADJUSTMENT SHIM Unavailable
9 400422761C 1 LEFT SUPPORT Unavailable
10 401422061 1 POWER STEERING RACK Unavailable
11 N0138481 2 WASHER Unavailable
12 400422874B 1 LEFT SUPPORT Unavailable
13 N0138492 2 WASHER Unavailable
14 400422279A 1 CONNECTOR Unavailable
15 400422269A 1 SCREW Unavailable
16 400422326 1 GASKET Unavailable
17 2 BALL JOINT COUPLING (SEE TABLE 407.01.00 REF. 24 ? CAN BE SOLD SEPARATELY) Unavailable
18 400419753 1 SLEEVE Unavailable
19 N0147267 1 SCREW M8X30 Unavailable
20 400419780 1 GASKET Unavailable
21 N0150825 3 NUT M6 Unavailable
22 400419147 1 BUSHING Unavailable
23 400419139 1 BUSHING Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
