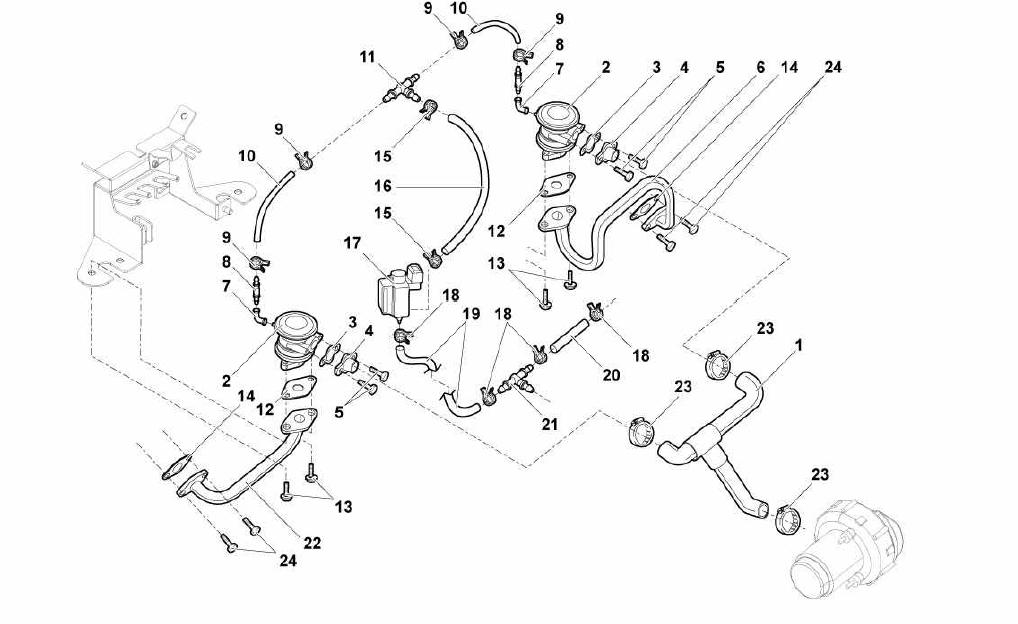

SECONDARY AIR SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 7L131149 | 1 | PIPE | Unavailable | |
| 2 | 78131102F | 2 | VALVE | Unavailable | |
| 3 | 7L131358 | 2 | GASKET | Unavailable | |
| 4 | 7L131585 | 2 | PIPE FITTING | Unavailable | |
| 5 | N10338901 | 4 | SCREW | Unavailable | |
| 6 | 7L131626A | 1 | PIPE | Unavailable | |
| 7 | 7L131756 | 4 | CONNECTOR | Unavailable | |
| 8 | 400131791 | 2 | CONNECTOR | Unavailable | |
| 9 | 400133348 | 4 | CLIP | Unavailable | |
| 10 | 7L131845 | 2 | PIPE | Unavailable | |
| 11 | 7L133579 | 1 | CONNECTOR | Unavailable | |
| 12 | 7L131354 | 2 | GASKET | Unavailable | |
| 13 | N10338901 | 4 | SCREW | Unavailable | |
| 14 | 7L131357 | 2 | GASKET | Unavailable | |
| 15 | 400127217 | 2 | CLIP | Unavailable | |
| 16 | 7L133264 | 1 | PIPE | Unavailable | |
| 17 | 77906283 | 1 | SOLENOID VALVE | Unavailable | |
| 18 | 400133348 | 4 | CLIP | Unavailable | |
| 19 | 7L131058 | 1 | PIPE | Unavailable | |
| 20 | 7L131385 | 1 | PIPE | Unavailable | |
| 21 | 7L133579 | 1 | CONNECTOR | Unavailable | |
| 22 | 7L131625 | 1 | PIPE | Unavailable | |
| 23 | N91115201 | 3 | CLAMP | Unavailable | |
| 24 | N10338901 | 4 | SCREW | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
