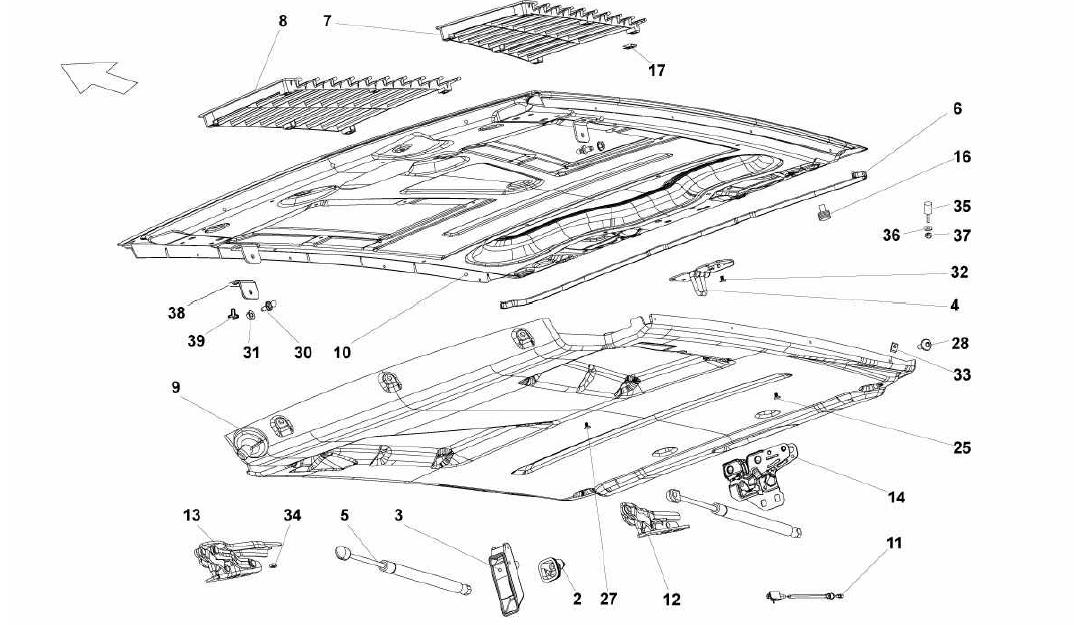

REAR HOOD

Go to Split View

REAR HOOD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 400813395 *Qty: 1 REAR BUMPER FAIRLEAD $13.12
Location: 3 Prev | Next Part: 400827185 *Qty: 1 HOOD OPENING HANDLE Call
Location: 4 Prev | Next Part: 400827518A *Qty: 2 CLOSING BRACKET $15.85
Location: 5 Prev | Next Part: 400827552 *Qty: 2 GAS FILLED SPRING $83.92
Location: 6 Prev | Next Part: 400827705 *Qty: 1 SEAL BETWEEN HOOD AND INNER COVER $10.54
Location: 7 Prev | Next Part: 400853625 *Qty: 1 ENGINE HOOD GRID- LH $1,904.54
Location: 8 Prev | Next Part: 400853626 *Qty: 1 ENGINE HOOD GRID- RH $1,904.54
Location: 9 Prev | Next Part: 400827015B *Qty: 1 ENGINE HOOD OUTER COVER $851.42
Location: 10 Prev | Next Part: 400827023A *Qty: 1 ENGINE HOOD $7,180.72
Location: 11 Prev | Next Part: 408827531A *Qty: 1 ENGINE HOOD OPENING CABLE $39.18
Location: 12 Prev | Next Part: 4B3823302B *Qty: 1 HINGE- LH $60.35
Location: 13 Prev | Next Part: 4B3823301B *Qty: 1 HINGE- RH $60.35
Location: 14 Prev | Next Part: 8E0823509B *Qty: 1 HOOD LOCK Superseded
Location: 16 Prev | Next Part: N0133481 *Qty: 1 SPRING PIN $0.90
Location: 17 Prev | Next Part: N0154672 *Qty: 12 CLIP $0.90
Location: 25 Prev | Next Part: N90807401 *Qty: 7 SCREW M5X18 $0.90
Location: 27 Prev | Next Part: N90986801 *Qty: 12 SCREW $0.90
Location: 28 Prev | Next Part: N10682301 *Qty: 8 SCREW $1.24
Location: 30 Prev | Next Part: 895827439B *Qty: 2 JOURNAL $3.12
Location: 31 Prev | Next Part: N0150839 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 8700700 *Qty: 2 SCREW M6X12.0 (M6X12) $0.90
Location: 33 Prev | Next Part: N01544401 *Qty: 12 CLIP Call
Location: 34 Prev | Next Part: N90798803 *Qty: 4 NUT M8 $1.37
Location: 35 Prev | Next Part: 400807333 *Qty: 2 ADJUSTING BUFFER $25.98
Location: 36 Prev | Next Part: WHT000909 *Qty: 2 WASHER (6.4X18.0X1.5) $0.90
Location: 37 Prev | Next Part: WHT000765 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 400827815 *Qty: 2 BRACKET $71.88
Location: 39 Prev | Next Part: N90737105 *Qty: 4 SCREW $1.44

* Quantity shown indicates the number of pieces used in the diagram.
