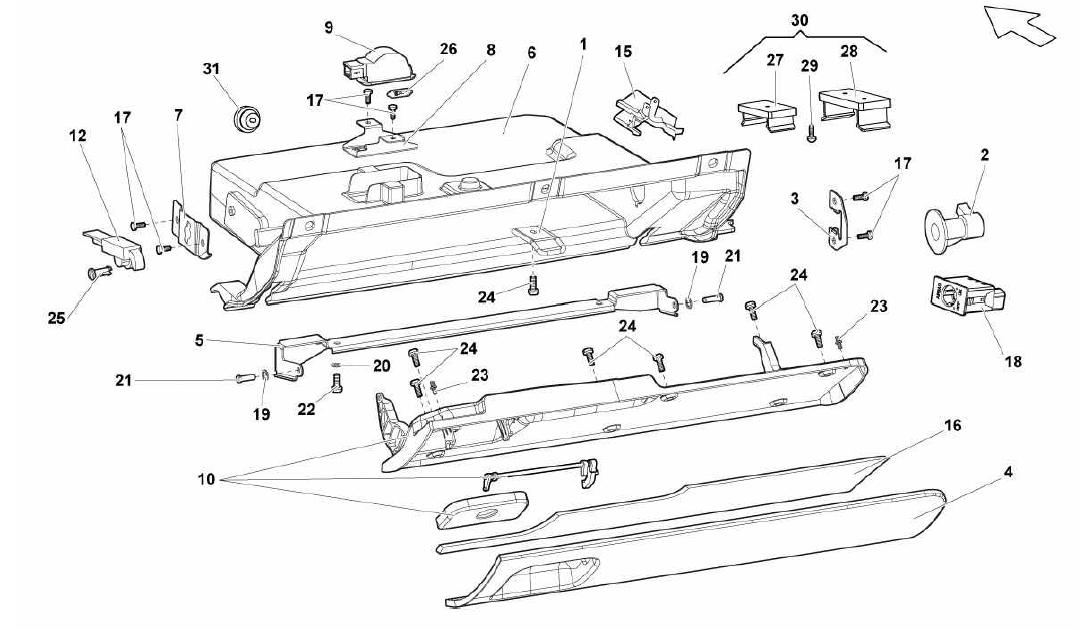

PASSENGER SIDE DRAWER

Go to Split View

PASSENGER SIDE DRAWER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400857133 *Qty: 1 CLOSING BRACKET $6.40
Location: 2 Prev | Next Part: 400919237 *Qty: 1 SWITCH $37.11
Location: 3 Prev | Next Part: 400959767 *Qty: 1 LODGING $13.23
Location: 4 Prev | Next Part: 401857122B *Qty: 1 GLOVE BOX COVER ASSEMBLY (LEATHER UPHOLSTERY ? SUPPLY VIN) $1,263.35
Location: 4 Prev | Next Part: 401857122C *Qty: 1 GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY ? SUPPLY VIN) $1,263.35
Location: 5 Prev | Next Part: 401857155 *Qty: 1 SUPPORT $12.24
Location: 6 Prev | Next Part: 401857924A *Qty: 1 LOWER RIGHT DASHBOARD ASSEMBLY $248.02
Location: 7 Prev | Next Part: 401858694 *Qty: 1 BRACKET $7.74
Location: 8 Prev | Next Part: 401947308 *Qty: 1 BRACKET $7.55
Location: 9 Prev | Next Part: 331947113 *Qty: 1 ROOF LAMP $17.52
Location: 10 Prev | Next Part: 401858414B *Qty: 1 GLOVE BOX LID INSIDE (KIT WITH HANDLE) $131.95
Location: 12 Prev | Next Part: 4B2880324 *Qty: 1 REFRAINING ELEMENT $31.97
Location: 15 Prev | Next Part: 8L0947315 *Qty: 1 SWITCH $7.96
Location: 16 Prev | Next Part: 400863095 *Qty: 1 SOUNDPROOFING MATERIAL $1.98
Location: 17 Prev | Next Part: N90562401 *Qty: 6 SCREW 3.5X10 $1.35
Location: 19 Prev | Next Part: N0126252 *Qty: 2 SEAL RING $0.90
Location: 20 Prev | Next Part: N01154012 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: N10639701 *Qty: 2 JOURNAL 5X20 $3.04
Location: 22 Prev | Next Part: N10596301 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: N91092001 *Qty: 2 RUBBER STOP 4.50X2.2X8.60 $0.90
Location: 24 Prev | Next Part: N90944603 *Qty: 7 SCREW $0.90
Location: 25 Prev | Next Part: 400857653 *Qty: 1 CLIP $0.95
Location: 26 Prev | Next Part: N0177252 *Qty: 1 BULB $3.60
Location: 27 Prev | Next Part: *Qty: 1 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 1 BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 0 Call
Location: 29 Prev | Next Part: *Qty: 1 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 1 KIT BRACKETS FOR I-POD (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 31 Prev | Next Part: *Qty: 1 FAIRLEAD (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
