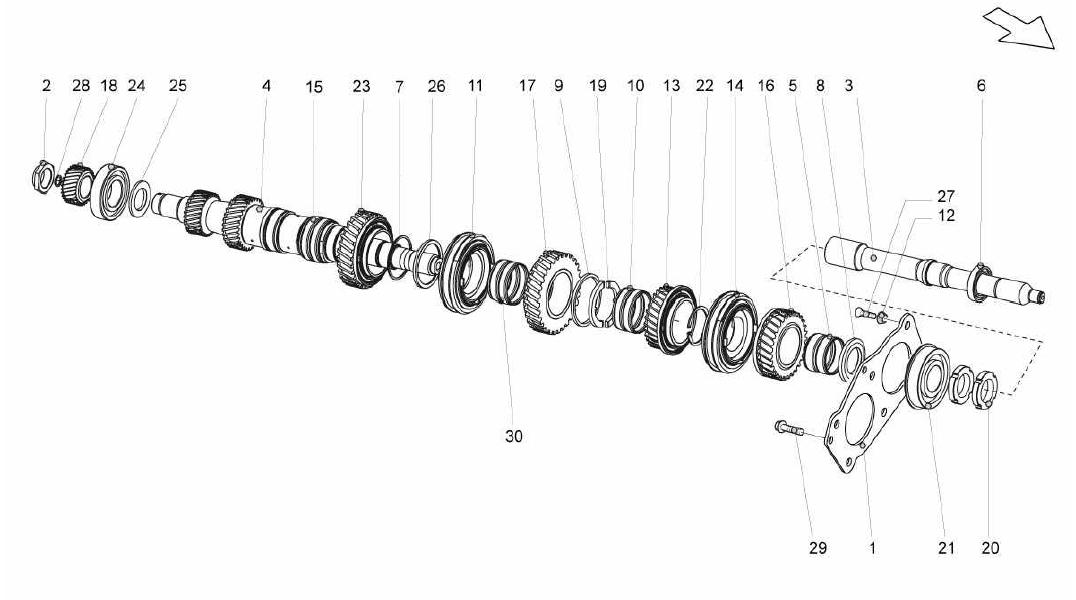

MAIN SHAFT

Go to Split View

MAIN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301193A *Qty: 1 PLATE $101.86
Location: 2 Prev | Next Part: 86307303 *Qty: 2 RING NUT M27X1.5 $75.03
Location: 3 Prev | Next Part: 86311103 *Qty: 1 SHAFT $504.90
Location: 4 Prev | Next Part: 86311105 *Qty: 1 MAIN SHAFT $1,328.81
Location: 5 Prev | Next Part: 86311118 *Qty: 1 ROLLER CAGE $54.68
Location: 6 Prev | Next Part: 86311133 *Qty: 1 BEARING $38.55
Location: 7 Prev | Next Part: 86311152 *Qty: 1 RING $16.14
Location: 8 Prev | Next Part: 86311157 *Qty: 1 SPACER $55.91
Location: 9 Prev | Next Part: 86311183 *Qty: 1 RING $34.75
Location: 10 Prev | Next Part: 86311228 *Qty: 1 ROLLER CAGE $29.22
Location: 11 Prev | Next Part: 86311241 *Qty: 1 SYNCHRONIZING GEAR $1,207.34
Location: 12 Prev | Next Part: 86311276 *Qty: 6 ROSETTE $0.90
Location: 13 Prev | Next Part: 86311285 *Qty: 1 THIRD GEAR $974.22
Location: 14 Prev | Next Part: 86311301 *Qty: 1 SYNCHRONIZING GEAR $641.56
Location: 15 Prev | Next Part: 86311325 *Qty: 1 ROLLER CAGE $36.87
Location: 16 Prev | Next Part: 86311351 *Qty: 1 FOURTH GEAR $1,030.26
Location: 17 Prev | Next Part: 86311389 *Qty: 1 SIXTH GEAR $685.79
Location: 18 Prev | Next Part: 86311507 *Qty: 1 REVERSE IDLE GEAR $360.85
Location: 19 Prev | Next Part: 86311876 *Qty: 1 RING $191.14
Location: 20 Prev | Next Part: 86307291A *Qty: 2 RING NUT $62.26
Location: 21 Prev | Next Part: 86311235A *Qty: 2 BEARING $74.01
Location: 22 Prev | Next Part: 86311287A *Qty: 1 RING $16.14
Location: 23 Prev | Next Part: 86311361B *Qty: 1 FIFTH GEAR $635.73
Location: 24 Prev | Next Part: 86311372B *Qty: 2 BEARING $175.02
Location: 25 Prev | Next Part: 86311876A *Qty: 1 SPACER $61.03
Location: 26 Prev | Next Part: 86311876B *Qty: 1 SPACER $118.35
Location: 27 Prev | Next Part: N90744801 *Qty: 6 SCREW $0.90
Location: 28 Prev | Next Part: *Qty: 0 0 Call
Location: 28 Prev | Next Part: N91014801 *Qty: 1 O-RING $1.05
Location: 29 Prev | Next Part: N90063703 *Qty: 1 SCREW $1.44
Location: 30 Prev | Next Part: 86311228 *Qty: 1 ROLLER CAGE $29.22

* Quantity shown indicates the number of pieces used in the diagram.
