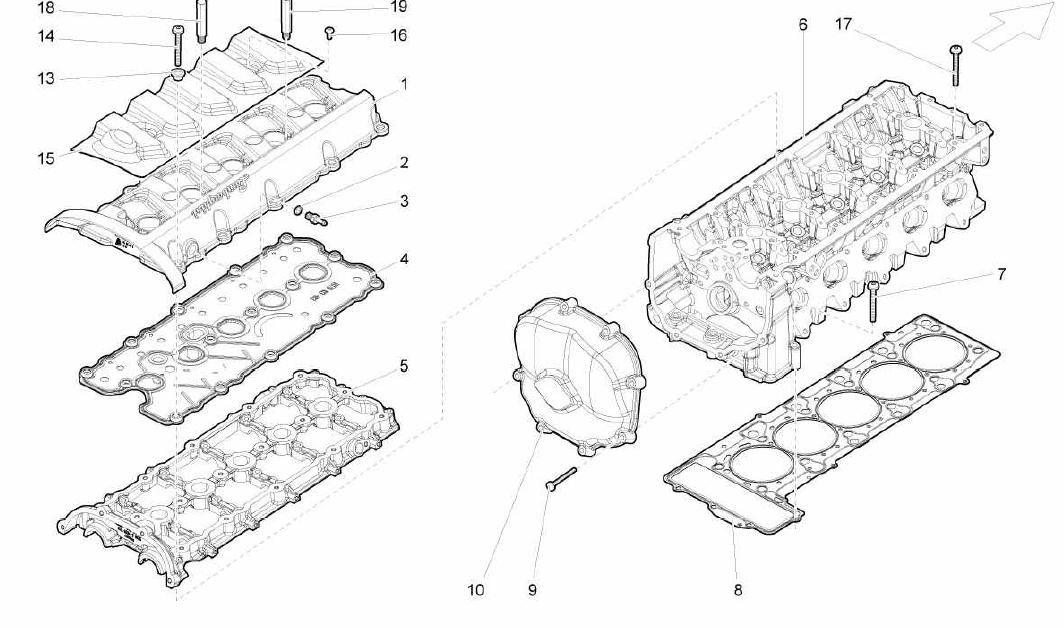

LEFT CYLINDER HEAD COVERS

Go to Split View

LEFT CYLINDER HEAD COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + 07L103064AA) Call
Location: 1 Prev | Next Part: 7L103475F *Qty: 1 COVER (TO BE USED WITH 07L103483D REF. 4 FROM VIN 4LA00379) $793.60
Location: 1 Prev | Next Part: 7L103475E *Qty: 1 COVER (TO BE USED WITH 07L103483C REF. 4 UP TO VIN 4LA00378) $1,073.47
Location: 2 Prev | Next Part: N0138486 *Qty: 1 WASHER Superseded
Location: 3 Prev | Next Part: 7L103606 *Qty: 1 CONNECTOR $16.58
Location: 4 Prev | Next Part: 7L103483D *Qty: 1 GASKET (TO BE USED WITH 07L103475F REF. 1 FROM VIN 4LA00379) $375.26
Location: 4 Prev | Next Part: 7L103483C *Qty: 1 GASKET (TO BE USED WITH 07L103475E REF. 1 UP TO VIN 4LA00378) $1,073.47
Location: 5 Prev | Next Part: *Qty: 1 LH SET PLATE (CANNOT BE SOLD SEPARATELY - SEE REF. 6) Call
Location: 6 Prev | Next Part: 7L103063B *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD $12,897.37
Location: 6 Prev | Next Part: 7L103063A *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD (FROM VIN 6LA03723 ATTENTION UNTIL THE VIN 6LA03722 IN CASE OF REPLECEMENT OF BOTH Call
Location: 7 Prev | Next Part: N10470702 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 7L103383H *Qty: 1 GASKET $142.00
Location: 9 Prev | Next Part: N10156206 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 6E109285D *Qty: 1 COVER $51.13
Location: 13 Prev | Next Part: 7L103195A *Qty: 16 BUSHING $6.18
Location: 14 Prev | Next Part: N90917201 *Qty: 14 SCREW $0.90
Location: 15 Prev | Next Part: 7L103908 *Qty: 1 COVER $165.24
Location: 16 Prev | Next Part: N10335202 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: WHT000374 *Qty: 12 SCREW $20.06
Location: 18 Prev | Next Part: 7L103728A *Qty: 1 STUD - 38 mm $16.20
Location: 19 Prev | Next Part: 7L103728 *Qty: 1 STUD - 32 mm $16.11

* Quantity shown indicates the number of pieces used in the diagram.
