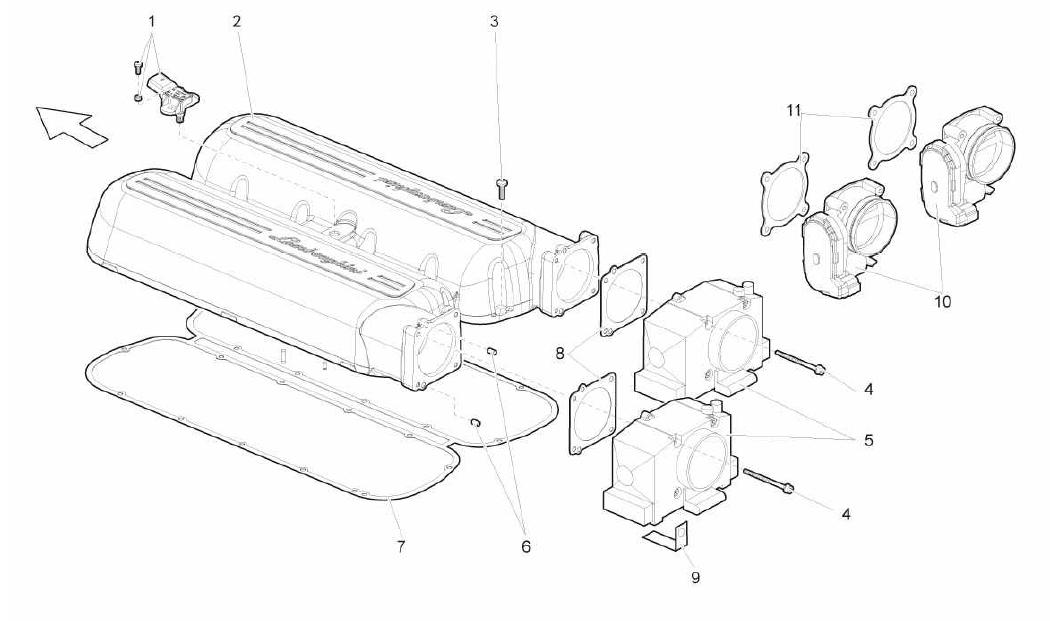

INTAKE MANIFOLD

Go to Split View

INTAKE MANIFOLD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400919529B *Qty: 1 TMAP SENSOR $450.47
Location: 2 Prev | Next Part: 7L133433C *Qty: 1 COVER $936.61
Location: 3 Prev | Next Part: N10196102 *Qty: 12 SCREW M6X18 $0.90
Location: 4 Prev | Next Part: WHT000753 *Qty: 8 SCREW M6X70 $14.82
Location: 5 Prev | Next Part: 7L133063A *Qty: 2 MOTOR-DRIVEN THROTTLE BODY $1,976.31
Location: 6 Prev | Next Part: N91010501 *Qty: 2 JOURNAL $11.81
Location: 7 Prev | Next Part: 7L129717 *Qty: 1 GASKET $228.72
Location: 8 Prev | Next Part: 7L133075 *Qty: 2 GASKET $41.69
Location: 9 Prev | Next Part: 7L133031 *Qty: 2 BRACKET $15.07
Location: 10 Prev | Next Part: *Qty: 0 MOTOR-DRIVEN THROTTLE BODY (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 11 Prev | Next Part: *Qty: 0 GASKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
