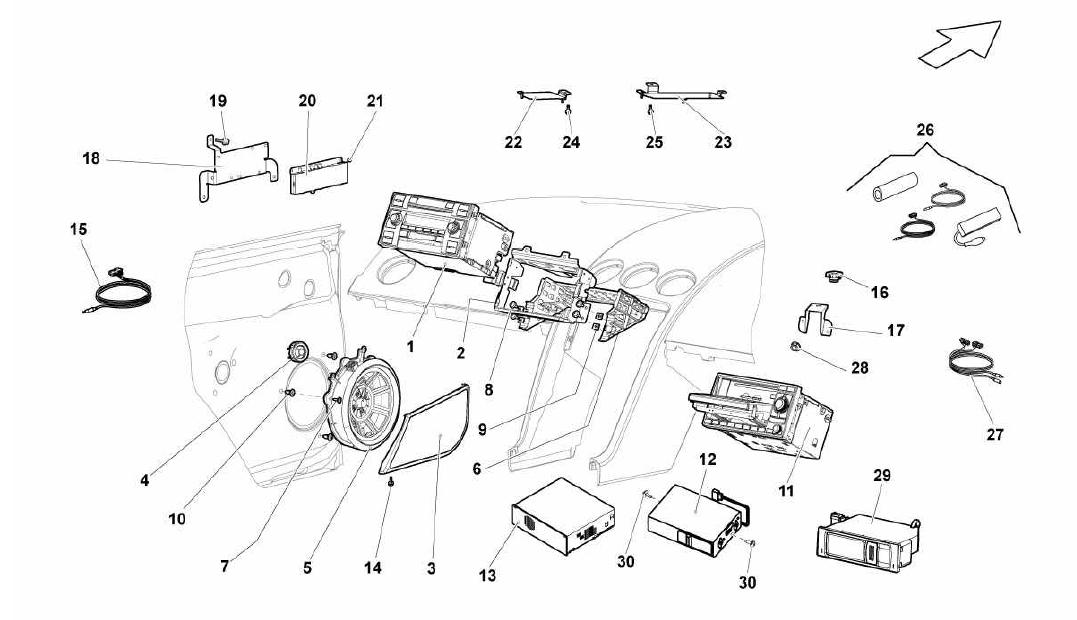

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400035195D *Qty: 1 CAR HI-FI SYSTEM (RADIO FOR USA) $1,244.89
Location: 2 Prev | Next Part: 400035311C *Qty: 1 SUPPORT $94.93
Location: 3 Prev | Next Part: 400035419A *Qty: 1 LH LOUDSPEAKER GRID (UP TO VIN 4LA01479 TO BE USED WITH REF. 23 -20 TABLE. 837.04.00 - REF. 14 TABLE 857.07.00) $178.31
Location: 3 Prev | Next Part: 400035420A *Qty: 1 RH LOUDSPEAKER GRID (UP TO VIN 4LA01479 TO BE USED WITH REF. 23 -20 TABLE. 837.04.00 - REF. 14 TABLE 857.07.00) $178.31
Location: 4 Prev | Next Part: 8E0035399 *Qty: 2 TWEETER $28.46
Location: 5 Prev | Next Part: 8E0035411 *Qty: 2 LOUDSPEAKER $49.34
Location: 6 Prev | Next Part: 8E0858075 *Qty: 1 RADIO SUPPORT $27.03
Location: 7 Prev | Next Part: N0902941 *Qty: 6 SCREW $0.90
Location: 8 Prev | Next Part: N90729001 *Qty: 4 SCREW $0.90
Location: 9 Prev | Next Part: N90777701 *Qty: 4 CLIP M5X13.6X11.5 $0.90
Location: 10 Prev | Next Part: N90949801 *Qty: 6 CLIP $0.90
Location: 11 Prev | Next Part: 400035192A *Qty: 1 RADIO AND NAVIGATOR SYSTEM (FOR USA CARS) $4,467.07
Location: 12 Prev | Next Part: 1J5035111A *Qty: 1 CD CHANGER $425.96
Location: 13 Prev | Next Part: 4D0919146C *Qty: 1 TV-TUNER $1,375.35
Location: 14 Prev | Next Part: N90659901 *Qty: 2 SCREW $1.65
Location: 15 Prev | Next Part: *Qty: 0 WIRING HARNESS (FOR RHDX CARS - VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 16 Prev | Next Part: 8E5919889 *Qty: 1 AERIAL GPS $104.78
Location: 17 Prev | Next Part: 400919909 *Qty: 1 GPS ANTENNA BRACKET $65.63
Location: 18 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 19 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 20 Prev | Next Part: *Qty: 0 AMPLIFIER (VALID FOR A DIFFERENT MODEL) Call
Location: 21 Prev | Next Part: *Qty: 0 NUT (VALID FOR A DIFFERENT MODEL) Call
Location: 22 Prev | Next Part: 408035535 *Qty: 1 BRACKET (TV ANTENNA AMPLIFIER) $7.63
Location: 23 Prev | Next Part: 400035536 *Qty: 1 BRACKET (ANTENNA AMPLIFIER) $9.45
Location: 24 Prev | Next Part: N90693702 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: *Qty: 0 0 Call
Location: 25 Prev | Next Part: N90693702 *Qty: 3 SCREW $0.90
Location: 26 Prev | Next Part: *Qty: 0 KIT FOR I-POD (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 27 Prev | Next Part: *Qty: 0 KIT FM CONVERTER WIRING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: N01100412 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: WHT001190 *Qty: 2 SCREW $1.43
Location: 36 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
