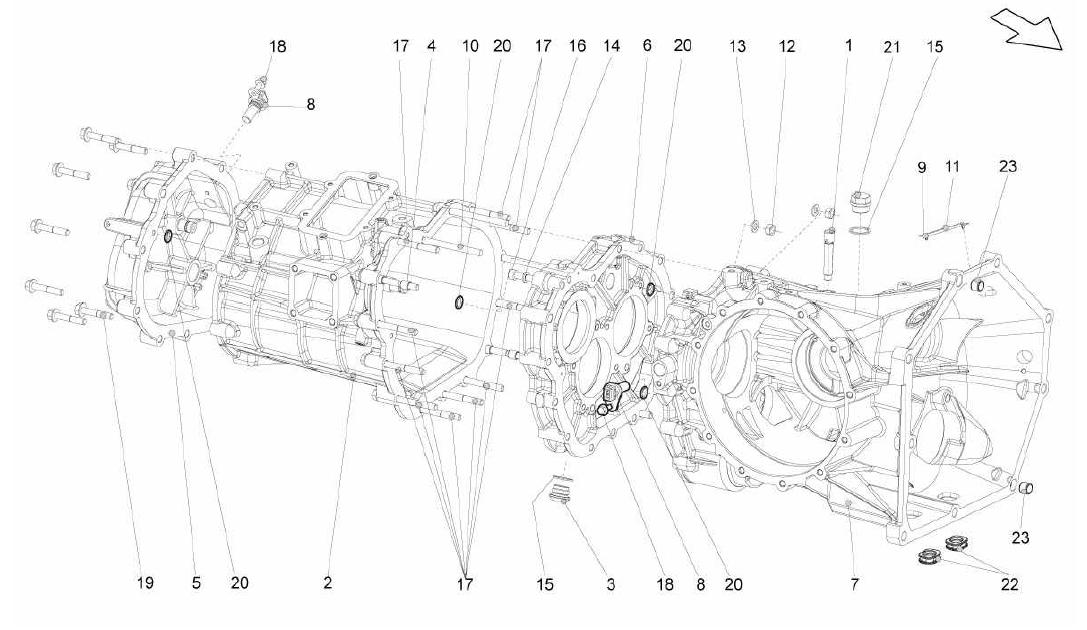

GEARBOX / REAR DIFFERENTIAL CASE

Go to Split View

GEARBOX / REAR DIFFERENTIAL CASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301047B *Qty: 1 BREATHER PIPE Unavailable
Location: 2 Prev | Next Part: 86301051 *Qty: 1 MANUAL TRANSMISSION CASE Unavailable
Location: 3 Prev | Next Part: 86301141 *Qty: 1 PLUG Unavailable
Location: 4 Prev | Next Part: 86301153 *Qty: 6 DOWEL Unavailable
Location: 5 Prev | Next Part: 86301201 *Qty: 1 COVER Unavailable
Location: 6 Prev | Next Part: 86301293A *Qty: 1 PLATE Unavailable
Location: 7 Prev | Next Part: 86323209A *Qty: 1 CLUTCH HOUSING Unavailable
Location: 8 Prev | Next Part: 86927321 *Qty: 2 ELLECTROMEGNETIC SENSOR Unavailable
Location: 9 Prev | Next Part: *Qty: 0 RIVET (CANNOT BE SOLD SEPARATELY) Unavailable
Location: 10 Prev | Next Part: N91031301 *Qty: 3 STUD BOLT Unavailable
Location: 11 Prev | Next Part: *Qty: 0 IDENTITY PLATE (CANNOT BE SOLD SEPARATELY) Unavailable
Location: 12 Prev | Next Part: N01100830 *Qty: 3 NUT Unavailable
Location: 13 Prev | Next Part: N0115581 *Qty: 3 ROSETTE Unavailable
Location: 14 Prev | Next Part: N0115586 *Qty: 3 ROSETTE Unavailable
Location: 15 Prev | Next Part: N0138271 *Qty: 2 GASKET Unavailable
Location: 16 Prev | Next Part: N0147151 *Qty: 3 SCREW Unavailable
Location: 17 Prev | Next Part: N10120803 *Qty: 12 SCREW Unavailable
Location: 18 Prev | Next Part: N10338901 *Qty: 2 SCREW Unavailable
Location: 19 Prev | Next Part: N90173302 *Qty: 10 SCREW Unavailable
Location: 20 Prev | Next Part: N91028801 *Qty: 6 O-RING Unavailable
Location: 21 Prev | Next Part: 86301114 *Qty: 1 PLUG Unavailable
Location: 22 Prev | Next Part: 86323578 *Qty: 2 PLUG Unavailable
Location: 23 Prev | Next Part: 7L301155 *Qty: 2 DOWEL Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
