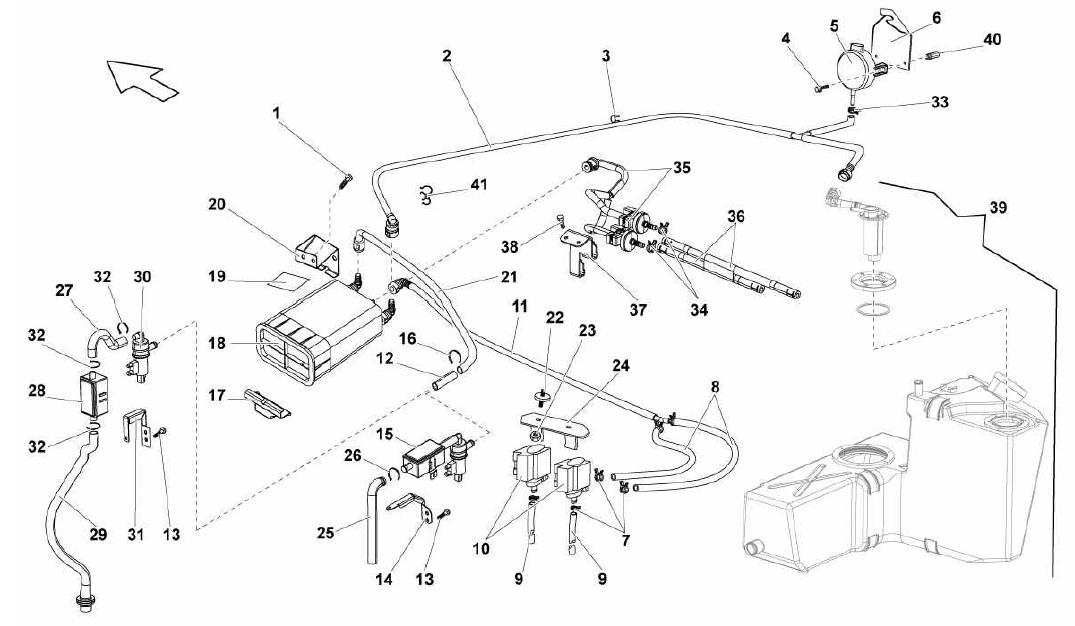

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 400133739A *Qty: 1 PIPE (ORDERABLE FOR CAMPAING NR L140-A.11.05) $30.41
Location: 1 Prev | Next Part: N10005204 *Qty: 4 SCREW M8X18 $0.90
Location: 2 Prev | Next Part: 400201166 *Qty: 1 PIPE ASSEMBLY $226.38
Location: 3 Prev | Next Part: 400611799A *Qty: 6 SUPPORT (? 10) $0.90
Location: 3 Prev | Next Part: 400611799D *Qty: 4 SUPPORT (? 20) $0.90
Location: 3 Prev | Next Part: 400611799C *Qty: 6 SUPPORT (? 16) $0.90
Location: 4 Prev | Next Part: WHT001389 *Qty: 2 SCREW M3X16 $0.90
Location: 5 Prev | Next Part: 400906206 *Qty: 1 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR $2,314.91
Location: 6 Prev | Next Part: 400906217A *Qty: 1 BRACKET $26.24
Location: 7 Prev | Next Part: 400251189E *Qty: 6 CLAMP $6.55
Location: 8 Prev | Next Part: 400133371 *Qty: 2 PIPE $30.33
Location: 9 Prev | Next Part: 400133606 *Qty: 1 PIPE (RIGHT CYLINDER HEAD) $89.95
Location: 9 Prev | Next Part: 400133595 *Qty: 1 PIPE (LEFT CYLINDER HEAD) $89.95
Location: 10 Prev | Next Part: 400906283 *Qty: 2 SOLENOID VALVE $77.02
Location: 11 Prev | Next Part: 400133352 *Qty: 1 PIPE $63.76
Location: 12 Prev | Next Part: 400133769A *Qty: 1 SLEEVE $31.98
Location: 13 Prev | Next Part: N10095502 *Qty: 2 SCREW M6X15 $0.90
Location: 14 Prev | Next Part: 408201181 *Qty: 1 BRACKET $10.05
Location: 15 Prev | Next Part: 400906311 *Qty: 1 CANISTER FILTER VALVE ASSEMBLY $118.04
Location: 16 Prev | Next Part: N91115201 *Qty: 1 CLAMP $5.79
Location: 17 Prev | Next Part: 408201898 *Qty: 1 BRACKET $19.71
Location: 18 Prev | Next Part: 400133563 *Qty: 1 VAPOR FILTER $364.96
Location: 19 Prev | Next Part: 400133338 *Qty: 1 GASKET $36.24
Location: 20 Prev | Next Part: 408201938 *Qty: 1 BRACKET $20.17
Location: 21 Prev | Next Part: 400133739 *Qty: 1 PIPE $91.32
Location: 22 Prev | Next Part: 400972081 *Qty: 2 PUFFER $9.66
Location: 23 Prev | Next Part: N90265703 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: *Qty: 0 0 Call
Location: 24 Prev | Next Part: 400906303 *Qty: 1 SUPPORT $10.22
Location: 25 Prev | Next Part: 400133785A *Qty: 1 PIPE $58.98
Location: 26 Prev | Next Part: N10255601 *Qty: 1 CLAMP $1.41
Location: 27 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 FILTER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 0 VALVE ASSEMBLY (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 31 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 32 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 33 Prev | Next Part: 400251189E *Qty: 1 CLAMP $6.55
Location: 34 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 35 Prev | Next Part: *Qty: 0 PIPE ASSEMBLY (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 36 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 37 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 38 Prev | Next Part: *Qty: 0 SCREW M6X15 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 39 Prev | Next Part: *Qty: 0 RH TANK (SEE TABLE 201.01.00) Call
Location: 40 Prev | Next Part: 400906310 *Qty: 2 RUBBER BUSHING $1.65
Location: 41 Prev | Next Part: N10312901 *Qty: 2 CLAMP $1.82

* Quantity shown indicates the number of pieces used in the diagram.
