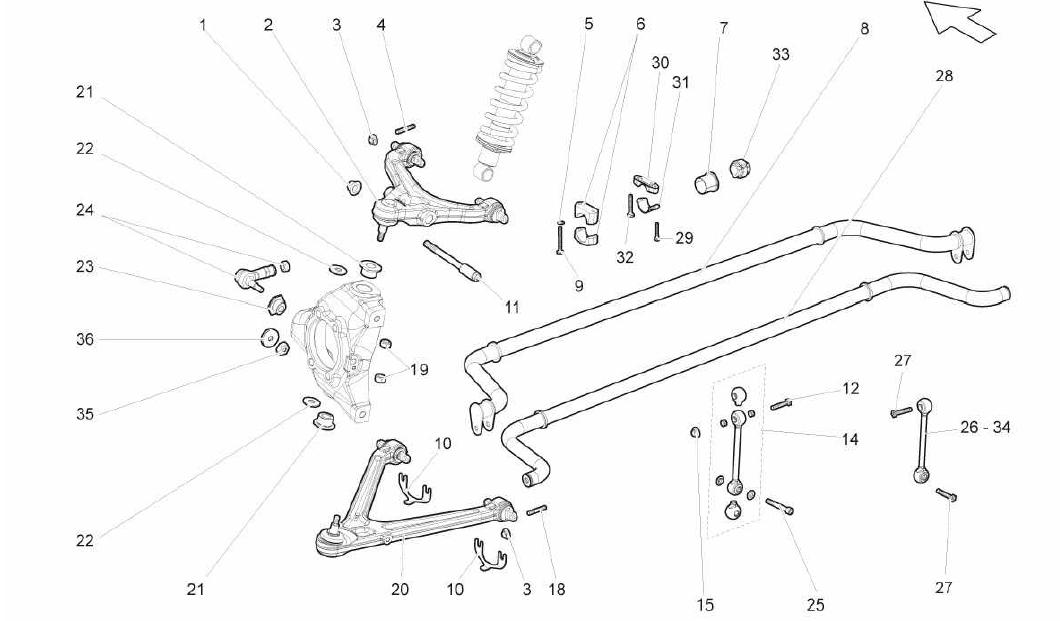

FRONT ARMS

Go to Split View

FRONT ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90323704 *Qty: 2 NUT (M12X1-5) $1.90
Location: 2 Prev | Next Part: 400407506 *Qty: 1 RH UPPER ARM $567.32
Location: 2 Prev | Next Part: 400407505 *Qty: 1 LH UPPER ARM $567.32
Location: 3 Prev | Next Part: N90226403 *Qty: 16 NUT $0.90
Location: 4 Prev | Next Part: N91062101 *Qty: 8 STUD BOLT $4.54
Location: 5 Prev | Next Part: WHT001197 *Qty: 4 WASHER (12X6-4X0-5 - UNTIL THE VIN 6LA03288) $0.90
Location: 6 Prev | Next Part: 400411031G *Qty: 2 STAB. BAR BRACKET (UP TO VIN 4LA01398 ? ALSO USE 400411324C) $194.46
Location: 6 Prev | Next Part: 400411031C *Qty: 2 STAB. BAR BRACKET (FROM VIN 4LA01399) $138.91
Location: 7 Prev | Next Part: 400411324C *Qty: 2 BUSHING (UNTIL THE VIN 6LA03288) $37.06
Location: 8 Prev | Next Part: 400411309 *Qty: 1 FRONT STABILIZER BAR (UNTIL THE VIN 4LA01398) $528.83
Location: 8 Prev | Next Part: 400411309A *Qty: 1 FRONT STABILIZER BAR (FROM VIN 4LA01399) Call
Location: 9 Prev | Next Part: N10470701 *Qty: 4 SCREW M6X50 $0.90
Location: 10 Prev | Next Part: 400407379E *Qty: 16 3.0 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379D *Qty: 16 2.5 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379C *Qty: 16 2.0 MM SHIM $8.47
Location: 10 Prev | Next Part: 400407379B *Qty: 16 1.5 MM SHIM $8.92
Location: 10 Prev | Next Part: 400407379A *Qty: 16 1.0 MM SHIM $21.64
Location: 10 Prev | Next Part: 400407379 *Qty: 16 0.5 MM SHIM $3.99
Location: 10 Prev | Next Part: 400407379F *Qty: 16 0.3 MM SHIM $4.51
Location: 11 Prev | Next Part: 400411321 *Qty: 2 JOURNAL $36.70
Location: 12 Prev | Next Part: N10314503 *Qty: 2 SCREW (M10X50 - UNTIL THE VIN 6LA03288) $1.58
Location: 14 Prev | Next Part: 400411317A *Qty: 2 CONNECTING ROD (TO BE USED WITH 400407750A REF. 25 UNTIL THE VIN 1109) $452.81
Location: 15 Prev | Next Part: N10286102 *Qty: 4 NUT $0.96
Location: 18 Prev | Next Part: N91062001 *Qty: 8 STUD BOLT $12.72
Location: 19 Prev | Next Part: N90323704 *Qty: 4 NUT (M12X1-5) $1.90
Location: 20 Prev | Next Part: *Qty: 0 0 Call
Location: 20 Prev | Next Part: 400407152B *Qty: 1 RH LOWER ARM $2,376.75
Location: 20 Prev | Next Part: 400407151B *Qty: 1 LH LOWER ARM $2,376.75
Location: 21 Prev | Next Part: 400407171B *Qty: 2 BUSHING $54.66
Location: 22 Prev | Next Part: 400505179B *Qty: 2 SPACER $32.76
Location: 23 Prev | Next Part: 400419121A *Qty: 1 BUSHING $166.69
Location: 24 Prev | Next Part: 400419811A *Qty: 2 JOINT COUPLING $333.35
Location: 25 Prev | Next Part: 400407750A *Qty: 2 SCREW $45.39
Location: 26 Prev | Next Part: *Qty: 1 LH CONNECTING ROD (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 27 Prev | Next Part: *Qty: 4 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 1 FRONT STABILIZER BAR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 4 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 2 STAB. BAR BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 31 Prev | Next Part: *Qty: 2 STAB. BAR BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 32 Prev | Next Part: *Qty: 4 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 33 Prev | Next Part: *Qty: 2 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 34 Prev | Next Part: *Qty: 1 RH CONNECTING ROD (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 35 Prev | Next Part: WHT000915 *Qty: 2 NUT (M10X1-25) $13.01
Location: 36 Prev | Next Part: WHT000919 *Qty: 2 WASHER (10.5X32.0X3.0) $10.24

* Quantity shown indicates the number of pieces used in the diagram.
