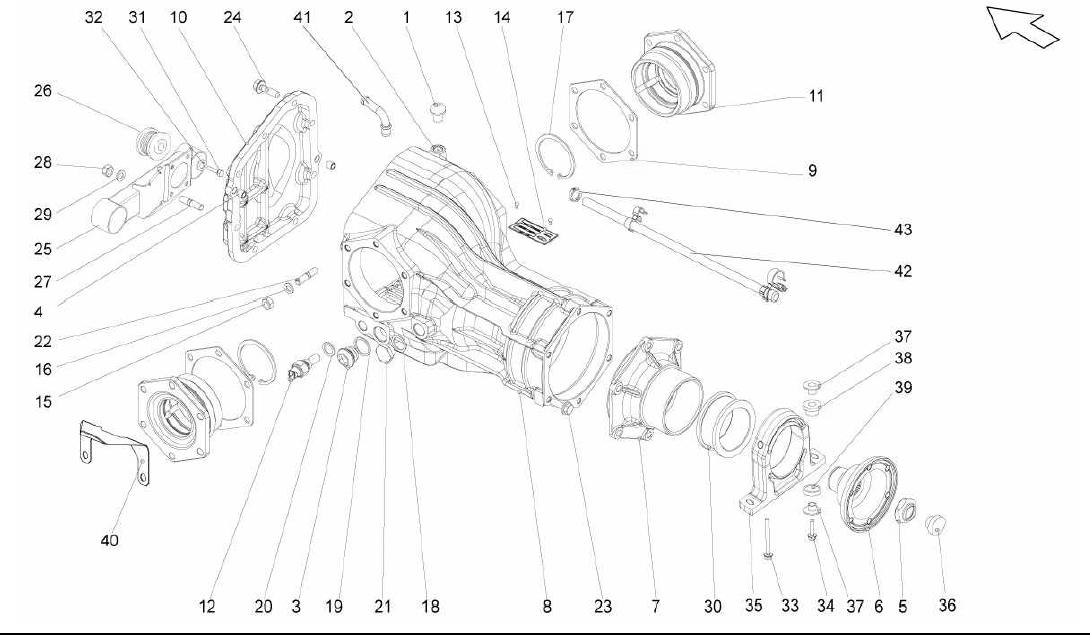

DIFFERENTIAL CASE

Go to Split View

DIFFERENTIAL CASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301047 *Qty: 1 BREATHER PIPE $16.92
Location: 2 Prev | Next Part: *Qty: 0 GASKET (CANNOT BE SOLD SEPARATELY) Call
Location: 3 Prev | Next Part: 86301141 *Qty: 1 PLUG $13.01
Location: 4 Prev | Next Part: 86301299 *Qty: 2 DOWEL $4.82
Location: 5 Prev | Next Part: 86311495 *Qty: 1 RING NUT $33.96
Location: 6 Prev | Next Part: 86311807 *Qty: 1 FLANGE $148.26
Location: 7 Prev | Next Part: 1S409129 *Qty: 1 FLANGE $194.46
Location: 8 Prev | Next Part: *Qty: 1 DIFFERENTIAL CASE (CANNOT BE SOLD SEPARATELY) Call
Location: 9 Prev | Next Part: 1S409385 *Qty: 2 ADJUSTMENT SHIM $41.69
Location: 10 Prev | Next Part: 1S409410 *Qty: 1 COVER $222.24
Location: 11 Prev | Next Part: 1S409828 *Qty: 2 FLANGE $222.24
Location: 12 Prev | Next Part: 1S919529 *Qty: 1 TEMPERATURE SENSOR $190.58
Location: 13 Prev | Next Part: *Qty: 0 SCREW (CANNOT BE SOLD SEPARATELY) Call
Location: 14 Prev | Next Part: *Qty: 0 NAMEPLATE (CANNOT BE SOLD SEPARATELY) Call
Location: 15 Prev | Next Part: N01100830 *Qty: 12 NUT $1.33
Location: 16 Prev | Next Part: N0115581 *Qty: 12 ROSETTE $0.90
Location: 17 Prev | Next Part: N0123191 *Qty: 2 SEAL RING $4.13
Location: 18 Prev | Next Part: N0138163 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: N0138271 *Qty: 1 GASKET $1.11
Location: 20 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: N0160291 *Qty: 1 PLUG $7.12
Location: 22 Prev | Next Part: N0444058 *Qty: 12 STUD BOLT $1.41
Location: 23 Prev | Next Part: N0903292 *Qty: 6 SCREW $4.20
Location: 24 Prev | Next Part: N10128106 *Qty: 8 SCREW $2.64
Location: 25 Prev | Next Part: 400399231B *Qty: 1 SUPPORT $93.82
Location: 26 Prev | Next Part: 400399663 *Qty: 2 SILENTBLOCK $43.06
Location: 27 Prev | Next Part: N0444445 *Qty: 4 STUD BOLT $0.90
Location: 28 Prev | Next Part: *Qty: 0 0 Call
Location: 28 Prev | Next Part: N90226403 *Qty: 4 NUT $0.90
Location: 29 Prev | Next Part: 400399195 *Qty: 4 SPACER $2.86
Location: 30 Prev | Next Part: 400399177 *Qty: 1 COLLAR $92.61
Location: 31 Prev | Next Part: N10569801 *Qty: 2 SCREW $2.43
Location: 32 Prev | Next Part: N90476701 *Qty: 2 ROSETTE $2.53
Location: 33 Prev | Next Part: N10036202 *Qty: 2 SCREW $2.61
Location: 34 Prev | Next Part: N90029803 *Qty: 2 SCREW $11.40
Location: 35 Prev | Next Part: 400399153A *Qty: 1 SUPPORT $194.46
Location: 36 Prev | Next Part: 1S409966 *Qty: 1 RUBBER PLUG $11.02
Location: 37 Prev | Next Part: 400399195A *Qty: 4 SPACER $6.88
Location: 38 Prev | Next Part: 400399177A *Qty: 2 SILENTBLOCK $7.62
Location: 39 Prev | Next Part: 400399177B *Qty: 2 SPACER $2.52
Location: 40 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 41 Prev | Next Part: *Qty: 0 BREATHER PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 42 Prev | Next Part: *Qty: 0 BREATHER PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 43 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
