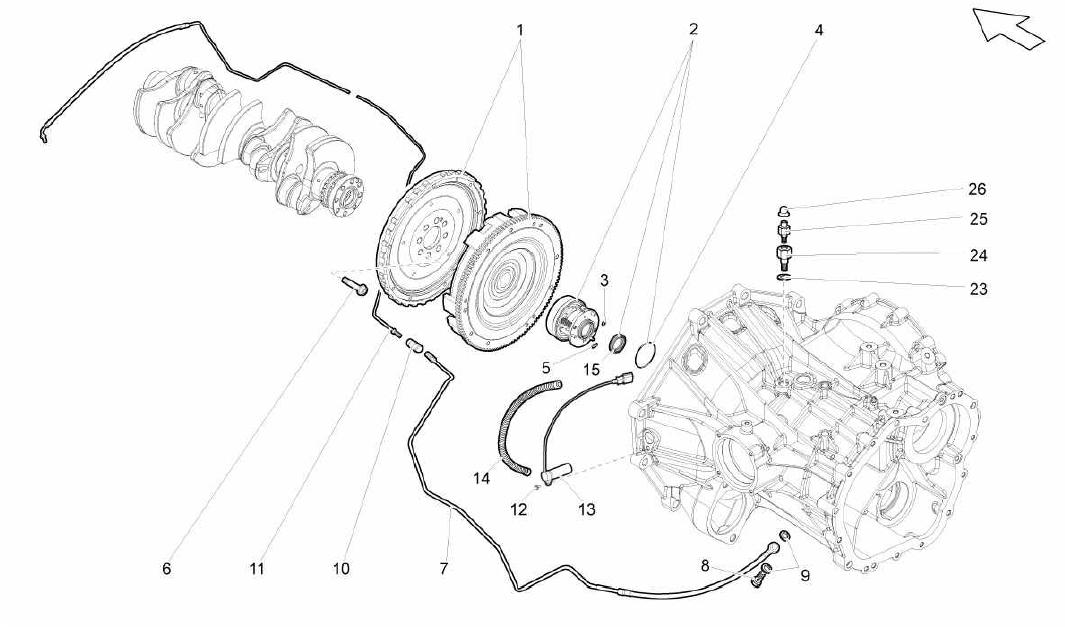

CLUTCH (MANUAL)

Go to Split View

CLUTCH (MANUAL)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105269F *Qty: 1 CLUTCH FLYWHEEL (MANUAL GEARBOX) $3,159.52
Location: 2 Prev | Next Part: 86141671A *Qty: 1 THRUST BEARING (MANUAL GEARBOX) $4,042.19
Location: 3 Prev | Next Part: N90039604 *Qty: 1 O-RING (MANUAL GEARBOX) $1.61
Location: 4 Prev | Next Part: N91020601 *Qty: 1 O-RING $4.98
Location: 5 Prev | Next Part: N90111301 *Qty: 1 O-RING (MANUAL GEARBOX) $0.93
Location: 6 Prev | Next Part: WHT000938 *Qty: 8 SCREW $6.05
Location: 7 Prev | Next Part: 400721462B *Qty: 1 PIPE $270.93
Location: 8 Prev | Next Part: N0210717 *Qty: 1 SCREW $5.89
Location: 9 Prev | Next Part: N0138131 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 400721419 *Qty: 1 CONNECTOR $92.61
Location: 11 Prev | Next Part: 400721461A *Qty: 1 PIPE $257.43
Location: 12 Prev | Next Part: N10295401 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 79905381 *Qty: 1 TRANSDUCER $65.93
Location: 14 Prev | Next Part: 400971788 *Qty: 1 PIPE $0.90
Location: 15 Prev | Next Part: 86141243A *Qty: 1 OIL SEAL $20.50
Location: 23 Prev | Next Part: N91014802 *Qty: 1 O-RING $3.30
Location: 24 Prev | Next Part: 86301065 *Qty: 1 CONNECTOR $49.41
Location: 25 Prev | Next Part: 86301127 *Qty: 1 PLUG $1.72
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
