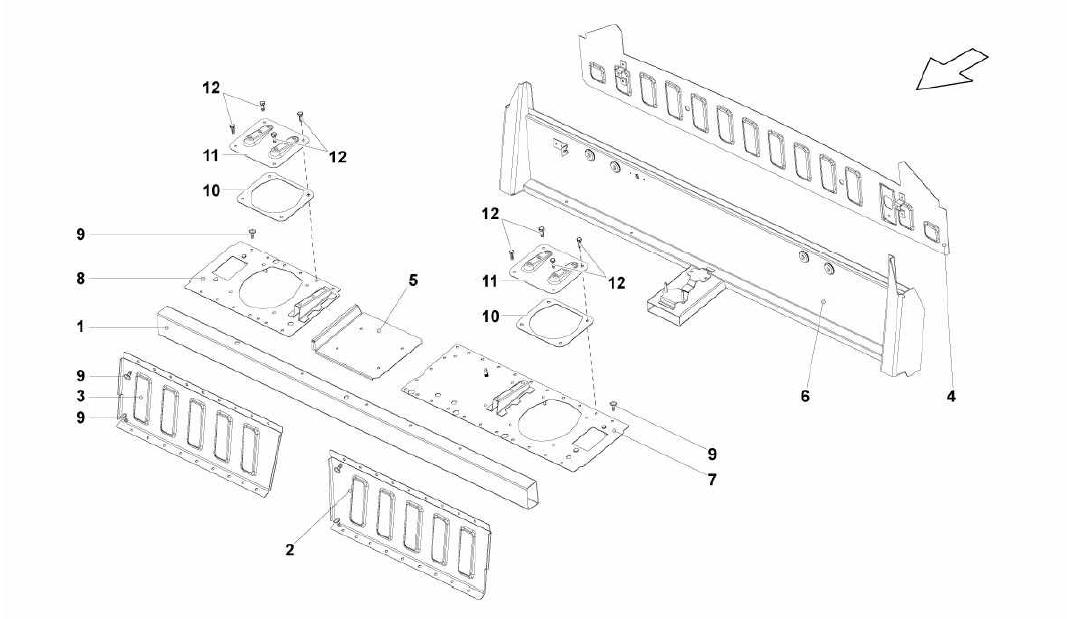

CENTER FRAME ELEMENTS

Go to Split View

CENTER FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400803221 *Qty: 1 CROSS MEMBER $409.71
Location: 2 Prev | Next Part: 408801403 *Qty: 1 BOARD $424.98
Location: 3 Prev | Next Part: 408801404 *Qty: 1 BOARD $424.98
Location: 4 Prev | Next Part: 408813501F *Qty: 1 REAR PANEL $369.08
Location: 5 Prev | Next Part: 400804210A *Qty: 1 BOARD $260.87
Location: 6 Prev | Next Part: 400813511F *Qty: 1 REAR PANEL $1,106.18
Location: 7 Prev | Next Part: 408813503 *Qty: 1 BOARD Call
Location: 8 Prev | Next Part: 408813504A *Qty: 1 BOARD $422.49
Location: 9 Prev | Next Part: N90919302 *Qty: 55 SCREW M5X18.0 $0.90
Location: 10 Prev | Next Part: 400201621 *Qty: 2 GASKET $28.66
Location: 11 Prev | Next Part: 400201970B *Qty: 2 COVER $47.75
Location: 12 Prev | Next Part: N90847901 *Qty: 8 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
