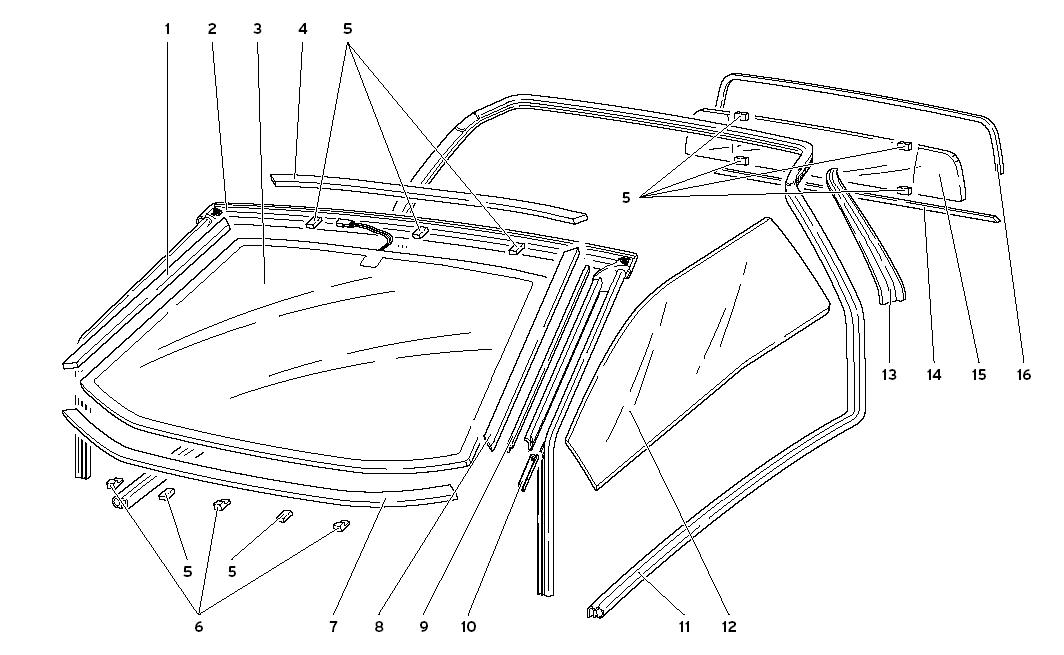

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9915104 *Qty: 1 FRAME (CORNICE DX) $437.38
Location: 2 Prev | Next Part: 67001675 *Qty: 1 GASKET (GUARNIZIONE) $2,775.37
Location: 3 Prev | Next Part: 9915106 *Qty: 1 WINDSHIELD GLASS (PARABREZZA) $4,950.60
Location: 4 Prev | Next Part: 9915102 *Qty: 1 FRAME (CORNICE) $178.87
Location: 5 Prev | Next Part: 9415102 *Qty: 9 SPACER (DISTANZIALE) Call
Location: 6 Prev | Next Part: 9415104 *Qty: 3 SPACER (DISTANZIALE) Call
Location: 7 Prev | Next Part: 9415201 *Qty: 1 FRAME (CORNICE) $371.71
Location: 8 Prev | Next Part: 9915105 *Qty: 1 FRAME (CORNICE SX) $297.83
Location: 9 Prev | Next Part: 9921712 *Qty: 1 RIGHT SUPPORT (SUPPORTO DX) $119.83
Location: 9 Prev | Next Part: 9921713 *Qty: 1 LEFT SUPPORT (SUPPORTO SX) $119.83
Location: 10 Prev | Next Part: 72001470 *Qty: 2 SMALL PLATE (PIASTRINO) $13.37
Location: 11 Prev | Next Part: 9907203 *Qty: 1 GASKET (GUARNIZIONE) $2,000.62
Location: 12 Prev | Next Part: 9921502 *Qty: 1 LEFT DOOR GLASS (CRISTALLO PORTA SX) $1,963.51
Location: 12 Prev | Next Part: 9921501 *Qty: 1 RIGHT DOOR GLASS (CRISTALLO PORTA DX) $1,737.82
Location: 13 Prev | Next Part: 9907109 *Qty: 1 RIGHT GASKET (GUARNIZIONE DX) $26.16
Location: 13 Prev | Next Part: 9907110 *Qty: 1 LEFT GASKET (GUARNIZIONE SX) $26.16
Location: 14 Prev | Next Part: 9915302 *Qty: 1 FRAME (CORNICE) $260.55
Location: 15 Prev | Next Part: 9915300 *Qty: 1 REAR WINDOW GLAS (CRISTALLO LUNOTTO) $328.94
Location: 16 Prev | Next Part: 9915301 *Qty: 1 FRAME (CORNICE) $584.72

* Quantity shown indicates the number of pieces used in the diagram.
