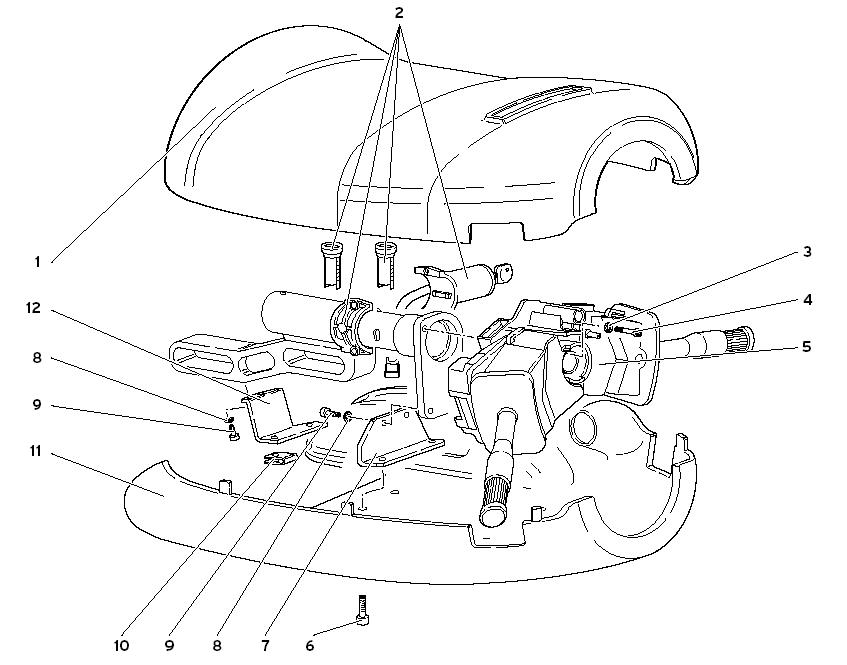

STEERING

Go to Split View

STEERING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9914311 *Qty: 1 UPPER COVERING (RIVESTIMENTO SUP.) $309.78
Location: 2 Prev | Next Part: 6031202 *Qty: 1 SWITCH (KIT COMMUTATORE ACC.) $281.83
Location: 3 Prev | Next Part: 8400502 *Qty: 2 WASHER (RONDELLA) Call
Location: 4 Prev | Next Part: 8700547 *Qty: 2 SCREW (VITE) $0.90
Location: 5 Prev | Next Part: 4338079 *Qty: 1 LIGHT CONTR. LEVER (DEVIOLUCI) $348.52
Location: 6 Prev | Next Part: 8700455 *Qty: 4 SCREW (VITE) $1.50
Location: 7 Prev | Next Part: 43001652 *Qty: 1 BRACKET (STAFFA) $35.58
Location: 8 Prev | Next Part: 8400506 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 9 Prev | Next Part: 8700512 *Qty: 4 SCREW (VITE) $0.90
Location: 10 Prev | Next Part: 8220402 *Qty: 4 CLIP (MOLLETTA) $1.36
Location: 11 Prev | Next Part: 9914312 *Qty: 1 LOWER COVERING (RIVESTIMENTO INF.) $330.53
Location: 12 Prev | Next Part: 43004091 *Qty: 1 BRACKET (STAFFA) $29.36

* Quantity shown indicates the number of pieces used in the diagram.
