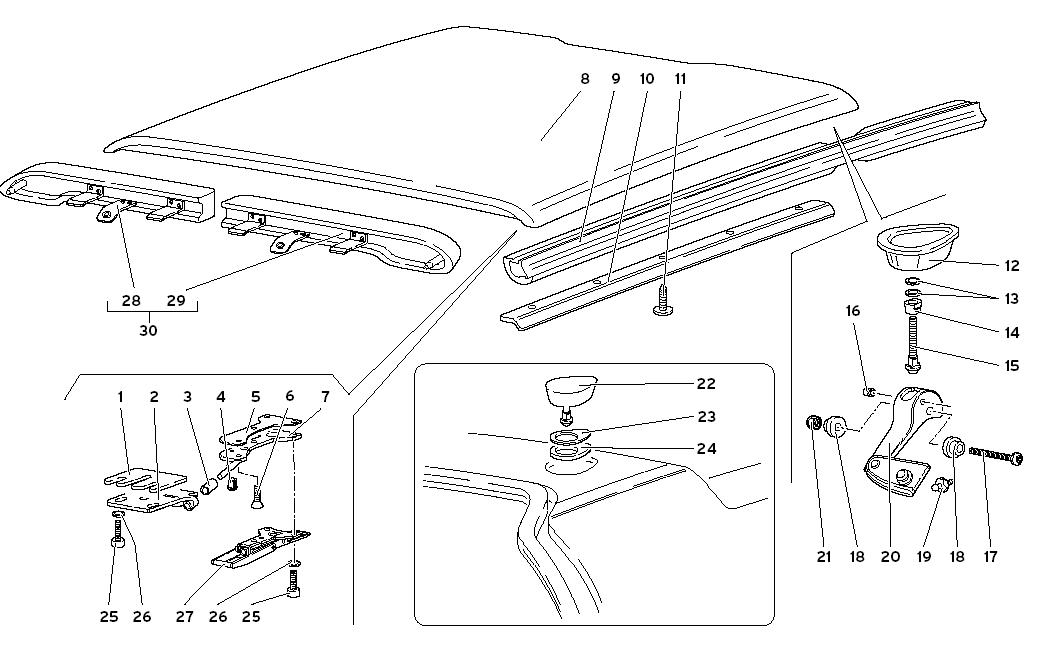

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9907324 *Qty: 0 SHIM (SPESSORE DI REGISTRO 1 MM) $44.07
Location: 2 Prev | Next Part: 9907302 *Qty: 1 RIGHT LOCK STRIKER (RISCONTRO DX) $598.43
Location: 2 Prev | Next Part: 9907307 *Qty: 1 LEFT LOCK STRIKER (RISCONTRO SX) $598.43
Location: 3 Prev | Next Part: 9907338 *Qty: 2 BUSHING (BOCCOLA) $38.69
Location: 4 Prev | Next Part: 9907312 *Qty: 2 MAGNET (MAGNETE SU STAFFA TETTUCCIO) $10.40
Location: 5 Prev | Next Part: 9907323 *Qty: 0 SHIM (SPESSORE DI REGISTRO 1 MM) $12.52
Location: 6 Prev | Next Part: 8740509 *Qty: 2 SCREW (VITE) $0.90
Location: 7 Prev | Next Part: 9907309 *Qty: 1 LEFT BRACKET (STAFFA SX POSIZ.TETTUCCIO) $66.91
Location: 7 Prev | Next Part: 9907308 *Qty: 1 RIGHT BRACKET (STAFFA DX POSIZ.TETTUCCIO) $132.23
Location: 8 Prev | Next Part: 67001676 *Qty: 1 FOLDING TOP (TETTUCCIO MOBILE) $8,732.24
Location: 9 Prev | Next Part: 67004592 *Qty: 1 LEFT ROOF GASKET (GUARNIZ. SX TETTO) $659.19
Location: 9 Prev | Next Part: 67004591 *Qty: 1 RIGHT ROOF GASKET (GUARNIZ. DX TETTO) $659.19
Location: 10 Prev | Next Part: 67003220 *Qty: 2 CHANNEL (PROFILATO) $73.88
Location: 11 Prev | Next Part: 8700463 *Qty: 10 SELF-LOCKING SCRE (VITE AUTOFILETTANTE) $1.30
Location: 12 Prev | Next Part: 67004348 *Qty: 1 RIGHT BOOT (CUFFIA DX) $42.57
Location: 12 Prev | Next Part: 67004349 *Qty: 1 LEFT BOOT (CUFFIA SX) $42.57
Location: 13 Prev | Next Part: 8400816 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 14 Prev | Next Part: 9907320 *Qty: 2 LOCK NUT (CONTRODADO) $99.37
Location: 15 Prev | Next Part: 9907311 *Qty: 2 PIN (PERNO GANCIO TETTO) $285.80
Location: 16 Prev | Next Part: 9907111 *Qty: 4 DOWEL (POSIZIONATORE) $11.03
Location: 17 Prev | Next Part: 8740653 *Qty: 2 SCREW (VITE) $1.82
Location: 18 Prev | Next Part: 9907112 *Qty: 4 BUSHING (BOCCOLA) $1.90
Location: 19 Prev | Next Part: 9907103 *Qty: 2 SELF-LOCKING SCRE (VITE AUTOFILETTANTE) $28.99
Location: 20 Prev | Next Part: 9907008 *Qty: 1 RIGHT HANDLE (MANIGLIA DX) $231.71
Location: 20 Prev | Next Part: 9907009 *Qty: 1 LEFT HANDLE (MANIGLIA SX) $394.82
Location: 21 Prev | Next Part: 8240610 *Qty: 2 SELF-LOCKING NUT (DADO AUTOBLOCCANTE) Call
Location: 22 Prev | Next Part: 9907004 *Qty: 1 RIGHT PLUG (TAPPO DX) $421.25
Location: 22 Prev | Next Part: 9907005 *Qty: 1 LEFT PLUG (TAPPO SX) $421.25
Location: 23 Prev | Next Part: 9907006 *Qty: 0 SHIM (SPESSORE DI REGISTRO 1-5 MM) $1.22
Location: 24 Prev | Next Part: 9907007 *Qty: 0 SHIM (SPESSORE DI REGISTRO 3 MM) $4.29
Location: 25 Prev | Next Part: 8740531 *Qty: 6 SCREW (VITE) $0.90
Location: 26 Prev | Next Part: 8400502 *Qty: 6 WASHER (RONDELLA) Call
Location: 27 Prev | Next Part: 9907327 *Qty: 2 ROOF LOCKING HOOK (GANCIO FISS. TETTO) Call
Location: 28 Prev | Next Part: 67001479 *Qty: 1 RIGHT HOOK SHIELD (PROTEZ. GANCIO DX) $552.92
Location: 29 Prev | Next Part: 67001480 *Qty: 1 LEFT HOOK SHIELD (PROTEZ. GANCIO SX) $552.92
Location: 30 Prev | Next Part: 67003150 *Qty: 1 KIT SHIELD (KIT PROTEZIONI) Call

* Quantity shown indicates the number of pieces used in the diagram.
