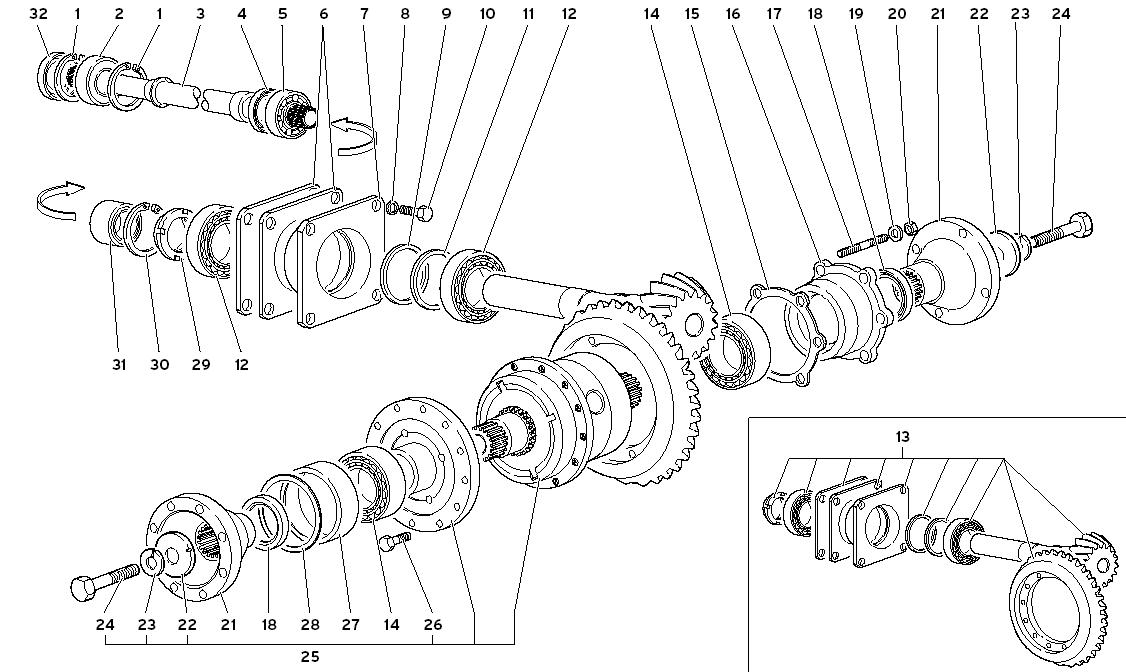

REAR DIFFERENTIAL

Go to Split View

REAR DIFFERENTIAL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8575501 *Qty: 2 RETAINER RING (ANELLO RITEGNO) $1.31
Location: 2 Prev | Next Part: 8503013 *Qty: 1 BEARING (CUSCINETTO) Call
Location: 3 Prev | Next Part: 2330969 *Qty: 1 PROPELLER SHAFT (ALBERO TRASMISSIONE) $1,527.93
Location: 4 Prev | Next Part: 8613510 *Qty: 1 SEAL (ANELLO TENUTA) $48.07
Location: 5 Prev | Next Part: 8503010 *Qty: 1 BEARING (CUSCINETTO) $22.60
Location: 6 Prev | Next Part: 2324939 *Qty: 0 SHIM (SPESSORE DI REGISTRO) $42.65
Location: 7 Prev | Next Part: 2324938 *Qty: 1 FLANGE (FLANGIA) $424.85
Location: 8 Prev | Next Part: 8410822 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 9 Prev | Next Part: 2330697 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-15 MM) $25.37
Location: 9 Prev | Next Part: 2330696 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-2 MM) $34.72
Location: 9 Prev | Next Part: 2330695 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-25 MM) $34.72
Location: 9 Prev | Next Part: 2330694 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-3 MM) $34.72
Location: 9 Prev | Next Part: 2330693 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-5 MM) $25.37
Location: 10 Prev | Next Part: 8100821 *Qty: 4 SCREW (VITE) $1.28
Location: 11 Prev | Next Part: 2328764 *Qty: 1 SPACER (DISTANZIALE) $61.25
Location: 12 Prev | Next Part: 8545004 *Qty: 2 BEARING (CUSCINETTO) $122.86
Location: 13 Prev | Next Part: 2334682 *Qty: 1 BEVEL SET (COPPIA CONICA) $4,924.40
Location: 14 Prev | Next Part: 8545002 *Qty: 2 BEARING (CUSCINETTO) $284.38
Location: 15 Prev | Next Part: 2324942 *Qty: 0 SHIM (SPESSORE DI REGISTRO) Call
Location: 16 Prev | Next Part: 2324452 *Qty: 1 FLANGE (FLANGIA PORTACUSCINETTO) $250.12
Location: 17 Prev | Next Part: 8301022 *Qty: 6 STUD (PRIGIONIERO) $12.34
Location: 18 Prev | Next Part: 8614507 *Qty: 2 SEAL (ANELLO TENUTA) $22.29
Location: 19 Prev | Next Part: 8411002 *Qty: 6 WASHER (RONDELLA) $0.90
Location: 20 Prev | Next Part: 8201001 *Qty: 6 NUT (DADO) $0.90
Location: 21 Prev | Next Part: 2333623 *Qty: 2 FLANGE (FLANGIA PORTA SEMIASSE) $358.78
Location: 22 Prev | Next Part: 2332653 *Qty: 2 WASHER (RONDELLA) $104.08
Location: 23 Prev | Next Part: 2332652 *Qty: 2 WASHER (RONDELLA) $9.56
Location: 24 Prev | Next Part: 2332651 *Qty: 2 SCREW (VITE) $23.14
Location: 25 Prev | Next Part: 2332210 *Qty: 1 KIT DIFFERENTIAL (KIT DIFFERENZIALE) Call
Location: 26 Prev | Next Part: 2332650 *Qty: 12 SCREW (VITE) $26.88
Location: 27 Prev | Next Part: 2324940 *Qty: 1 BEARING CASE (ANELLO PORTACUSCINETTO) $255.44
Location: 28 Prev | Next Part: 2331917 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-5 MM) $28.67
Location: 28 Prev | Next Part: 2331921 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-15 MM) $25.37
Location: 28 Prev | Next Part: 2331920 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-2 MM) $25.37
Location: 28 Prev | Next Part: 2331919 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-25 MM) $25.37
Location: 28 Prev | Next Part: 2331918 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-3 MM) $25.37
Location: 29 Prev | Next Part: 8254503 *Qty: 1 PLUG (GHIERA) $153.12
Location: 30 Prev | Next Part: 8575002 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $5.52
Location: 31 Prev | Next Part: 8524014 *Qty: 1 BEARING (CUSCINETTO) $211.31
Location: 32 Prev | Next Part: 8613601 *Qty: 1 SEAL (ANELLO TENUTA) Call

* Quantity shown indicates the number of pieces used in the diagram.
