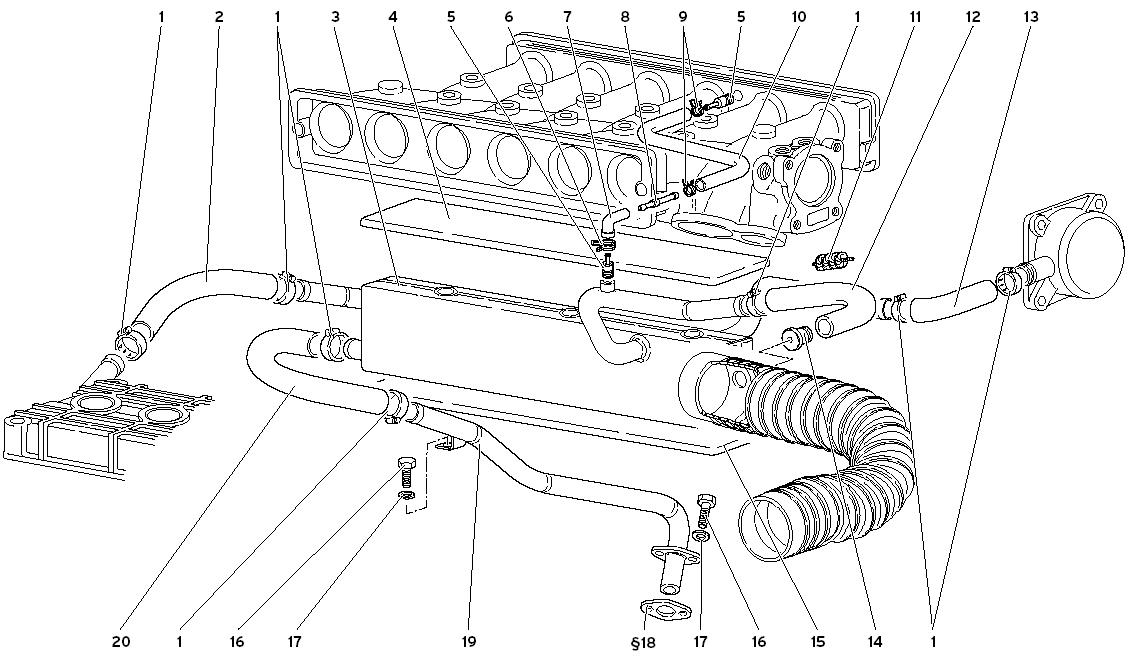

ENGINE OIL BREATHING SYSTEM

Go to Split View

ENGINE OIL BREATHING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT Call
Location: 1 Prev | Next Part: 8832003 *Qty: 7 STRAP (FASCETTA) $12.28
Location: 2 Prev | Next Part: 1533391 *Qty: 1 PIPE (TUBO) $42.54
Location: 3 Prev | Next Part: 1533385 *Qty: 1 RESERVOIR (SERBATOIO) $518.02
Location: 4 Prev | Next Part: 1533448 *Qty: 1 INSULATOR (ISOLANTE) $35.60
Location: 5 Prev | Next Part: 1328721 *Qty: 2 CONNECTION (RACCORDO) $19.80
Location: 6 Prev | Next Part: 8830122 *Qty: 1 STRAP (FASCETTA) $0.90
Location: 7 Prev | Next Part: 1329321 *Qty: 1 CONNECTION (RACCORDO 90?) $10.27
Location: 8 Prev | Next Part: 1329319 *Qty: 1 CONNECTION (RACCORDO) $1.21
Location: 9 Prev | Next Part: 8830128 *Qty: 2 STRAP (FASCETTA) $0.90
Location: 10 Prev | Next Part: 1333445 *Qty: 1 PIPE (TUBO) $15.07
Location: 11 Prev | Next Part: 1532768 *Qty: 1 FLAME TRAP (SPEGNIFIAMMA) $24.17
Location: 12 Prev | Next Part: 1533775 *Qty: 1 PIPE (TUBO) $88.02
Location: 13 Prev | Next Part: 15001026 *Qty: 1 PIPE (TUBO) $172.49
Location: 14 Prev | Next Part: 1333773 *Qty: 1 CONNECTION (RACCORDO) $23.75
Location: 15 Prev | Next Part: 1533447 *Qty: 1 INSULATOR (ISOLANTE) $77.38
Location: 16 Prev | Next Part: 8100601 *Qty: 3 SCREW (VITE) $0.90
Location: 17 Prev | Next Part: 8410602 *Qty: 3 WASHER (RONDELLA) $0.90
Location: 18 Prev | Next Part: 1831058 *Qty: 1 GASKET (GUARNIZIONE) $6.52
Location: 19 Prev | Next Part: 1532643 *Qty: 1 PIPE (TUBO) $72.68
Location: 20 Prev | Next Part: 1532654 *Qty: 1 PIPE (TUBO) $63.70

* Quantity shown indicates the number of pieces used in the diagram.
