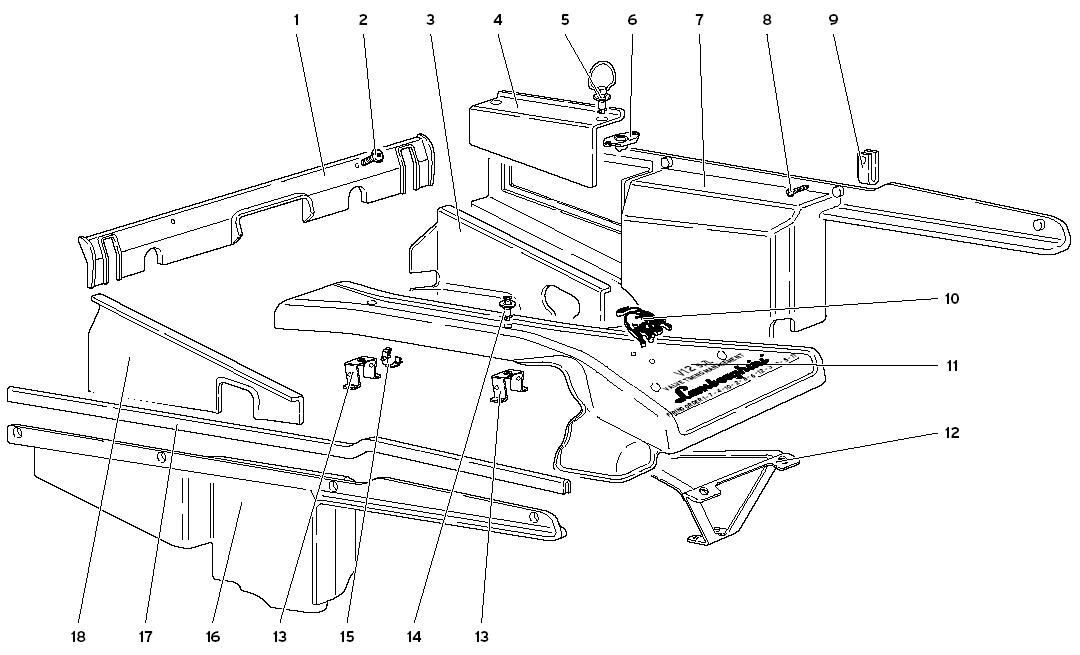

ENGINE HOUSING PANELS

Go to Split View

ENGINE HOUSING PANELS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9911603 *Qty: 1 PANEL (PANNELLO) $1,127.54
Location: 2 Prev | Next Part: 8700659 *Qty: 2 SCREW (VITE) $0.90
Location: 3 Prev | Next Part: 9911606 *Qty: 1 PANEL (PANNELLO) $1,780.91
Location: 4 Prev | Next Part: 9911700 *Qty: 1 INSPECTION LID (SPORTELLO ISPEZIONE) Call
Location: 5 Prev | Next Part: 9911608 *Qty: 2 LOCK (DISPOSITIVO CHIUSURA) $37.71
Location: 6 Prev | Next Part: 9411615 *Qty: 2 CLIP (FERMAGLIO) $33.46
Location: 7 Prev | Next Part: 9911601 *Qty: 1 PANEL (PANNELLO) $980.54
Location: 8 Prev | Next Part: 8700454 *Qty: 8 SCREW (VITE) $2.85
Location: 9 Prev | Next Part: 8220507 *Qty: 8 CLIP (MOLLETTA) $0.90
Location: 10 Prev | Next Part: 6121271 *Qty: 1 ORNAMENT (FREGIO) $193.43
Location: 11 Prev | Next Part: 20001295 *Qty: 1 PANEL (PANNELLO) $1,692.31
Location: 12 Prev | Next Part: 1637847 *Qty: 1 BRACKET (STAFFA) $126.20
Location: 13 Prev | Next Part: 1637846 *Qty: 2 BRACKET (STAFFA) $72.41
Location: 14 Prev | Next Part: 9411614 *Qty: 4 SCREW (VITE) $24.26
Location: 15 Prev | Next Part: 6134202 *Qty: 4 STRAP (FASCETTA) $9.15
Location: 16 Prev | Next Part: 9911602 *Qty: 1 PANEL (PANNELLO) $2,470.88
Location: 17 Prev | Next Part: 9911609 *Qty: 2 GASKET (GUARNIZIONE) $72.03
Location: 18 Prev | Next Part: 9911607 *Qty: 1 PANEL (PANNELLO) $1,780.91

* Quantity shown indicates the number of pieces used in the diagram.
