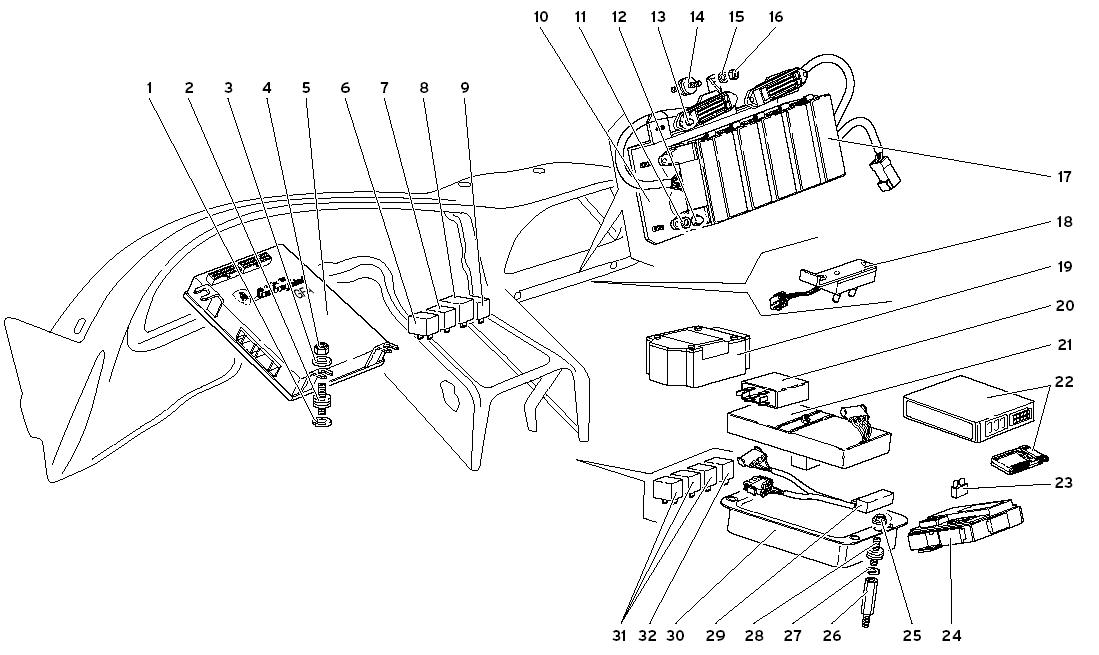

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 8410611 3 WASHER (RONDELLA) Unavailable
2 8920602 3 ELASTIC SUPPORT (SUPPORTO ELASTICO) Unavailable
3 8400607 3 WASHER (RONDELLA) Unavailable
4 8200606 3 NUT (DADO) Unavailable
5 20002641 1 E.C.U. GFA (80 CENTRALINA GFA) Unavailable
5 20002642 1 E.C.U. GFA (96 CENTRALINA GFA) Unavailable
5 20002642 1 E.C.U. GFA (71 CENTRALINA GFA) Unavailable
5 20002640 1 E.C.U. GFA (CENTRALINA GFA) Unavailable
5 20002641 1 E.C.U. GFA (89 CENTRALINA GFA) Unavailable
6 6311155 1 RELAY (REL? ALIMENT. HAZARD) Unavailable
7 6036297 1 RELAY (REL? ALIMENT. +15/30 HAZARD) Unavailable
8 6030676 1 RELAY (REL? INTERMITTENZA) Unavailable
9 6036296 1 RELAY (REL? CLACSON) Unavailable
10 61003075 1 SUPPORT (SUPPORTO) Unavailable
11 8400620 4 WASHER (RONDELLA) Unavailable
12 8200605 4 NUT (DADO) Unavailable
13 8200406 4 NUT (DADO) Unavailable
14 8920603 1 ELASTIC SUPPORT (SUPPORTO ELASTICO) Unavailable
15 8400607 1 WASHER (RONDELLA) Unavailable
16 8200606 1 NUT (DADO) Unavailable
17 6138342 1 CASE (96 SCATOLA REL?/FUSIBILI) Unavailable
17 6137443 1 CASE (76 SCATOLA REL?/FUSIBILI) Unavailable
17 6138342 1 CASE (71 SCATOLA REL?/FUSIBILI) Unavailable
17 6137443 1 CASE (74 SCATOLA REL?/FUSIBILI) Unavailable
17 6137052 1 CASE (SCATOLA REL?/FUSIBILI) Unavailable
18 6136981 1 KONI - SWITCH (INTERRUTTORE - KONI) Unavailable
19 6037932 1 E.C.U. AIR BAG (CENTRALINA AIR BAG) Unavailable
20 5938137 1 LOCKING E.C.U. (CENTR. CHIUSURA CENTR.) Unavailable
21 6036175 1 LOW TIRE E.C.U. (CENTRALINA LOW TIRE) Unavailable
22 61001923 1 (CENTRALINAANTIFURTOETELECOMANDO) Unavailable
23 1629258 1 FUSE (FUSIBILE 20 A) Unavailable
24 60002330 1 WINDOW LIFT E.C.U. (CENTRALINA ALZAVETRO) Unavailable
25 8200614 2 NUT (DADO) Unavailable
26 1128397 2 STUD (COLONNETTA) Unavailable
27 8410611 2 WASHER (RONDELLA) Unavailable
28 8920602 2 ELASTIC SUPPORT (SUPPORTO ELASTICO) Unavailable
29 6137314 1 LOW TIRE E. DEVICE (INTERFACCIA - LOW TIRE) Unavailable
30 5134572 1 KONI E.C.U. (CENTRALINA KONI) Unavailable
31 6038007 3 RELAY (REL?) Unavailable
32 6311155 1 RELAY (REL?) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
