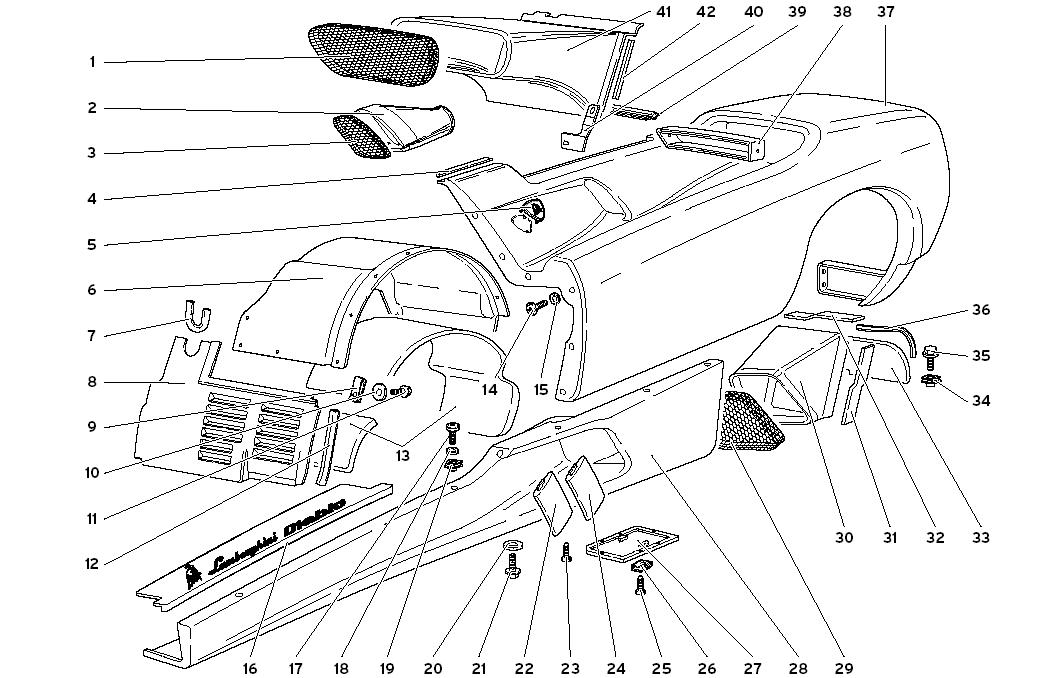

COQUE ELEMENTS-LEFT FLANK

Go to Split View

COQUE ELEMENTS-LEFT FLANK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9910203 *Qty: 1 NET (RETE) $113.31
Location: 2 Prev | Next Part: 9953101 *Qty: 1 CONVEYOR (CONVOGLIATORE SX) $289.71
Location: 3 Prev | Next Part: 9910205 *Qty: 1 NET (RETE) $83.65
Location: 4 Prev | Next Part: 9907108 *Qty: 1 SHIELD (PROTEZIONE) $16.90
Location: 5 Prev | Next Part: 94002291 *Qty: 1 ORNAMENT (FREGIO) Call
Location: 6 Prev | Next Part: 9911501 *Qty: 1 REAR WHEELBOX (PASSARUOTA POST.) $409.12
Location: 7 Prev | Next Part: 9411513 *Qty: 1 GASKET (GUARNIZIONE) $142.97
Location: 8 Prev | Next Part: 9911503 *Qty: 1 PROTECTION (PARASASSI) $663.70
Location: 9 Prev | Next Part: 8220507 *Qty: 17 CLIP (MOLLETTA) $0.90
Location: 10 Prev | Next Part: 8400508 *Qty: 17 WASHER (RONDELLA) $6.82
Location: 11 Prev | Next Part: 8700449 *Qty: 17 SCREW (VITE) $0.90
Location: 12 Prev | Next Part: 9411511 *Qty: 1 GASKET (GUARNIZIONE) $72.16
Location: 13 Prev | Next Part: 9455518 *Qty: 1 LEFT LINING (73 ISOLAMENTO SX) Call
Location: 14 Prev | Next Part: 8700685 *Qty: 13 SCREW (VITE) $0.90
Location: 15 Prev | Next Part: 8400629 *Qty: 13 WASHER (RONDELLA) $1.41
Location: 16 Prev | Next Part: 9458615 *Qty: 1 DOORSILL MOULDING (BATTICALCAGNO) $792.61
Location: 17 Prev | Next Part: 8700685 *Qty: 3 SCREW (VITE) $0.90
Location: 18 Prev | Next Part: 8400629 *Qty: 3 WASHER (RONDELLA) $1.41
Location: 19 Prev | Next Part: 8220601 *Qty: 6 CLIP (MOLLETTA) $24.41
Location: 20 Prev | Next Part: 8400607 *Qty: 3 WASHER (RONDELLA) $0.90
Location: 21 Prev | Next Part: 8700680 *Qty: 9 SCREW (VITE) $3.37
Location: 22 Prev | Next Part: 9410311 *Qty: 1 FIN (ALETTA) $5,018.78
Location: 23 Prev | Next Part: 8700434 *Qty: 4 SCREW (VITE) Call
Location: 24 Prev | Next Part: 9410312 *Qty: 1 FIN (ALETTA) $5,018.78
Location: 25 Prev | Next Part: 8700320 *Qty: 6 SCREW (VITE) $0.90
Location: 26 Prev | Next Part: 8220302 *Qty: 6 CLIP (MOLLETTA) Call
Location: 27 Prev | Next Part: 9410306 *Qty: 1 INSPECTION LID (SPORTELLO ISPEZIONE) $70.03
Location: 28 Prev | Next Part: 9910301 *Qty: 1 SIDE PANEL (BRANCARDO) $6,046.55
Location: 29 Prev | Next Part: 9430148 *Qty: 1 NET (RETE) $102.08
Location: 30 Prev | Next Part: 9453149 *Qty: 1 CONVEYOR (CONVOGLIATORE) Call
Location: 31 Prev | Next Part: 9453126 *Qty: 1 GASKET (GUARNIZIONE) $3.99
Location: 32 Prev | Next Part: 9453125 *Qty: 2 GASKET (GUARNIZIONE) $5.30
Location: 33 Prev | Next Part: 9453142 *Qty: 1 CONVEYOR (CONVOGLIATORE) $112.62
Location: 34 Prev | Next Part: 8220601 *Qty: 2 CLIP (MOLLETTA) $24.41
Location: 35 Prev | Next Part: 8700660 *Qty: 2 SCREW (VITE) $0.90
Location: 36 Prev | Next Part: 9490200 *Qty: 1 GASKET (GUARNIZIONE) $17.12
Location: 37 Prev | Next Part: 9910003 *Qty: 1 REAR MUDGUARD FE. (PARAFANGO POST.) $9,509.76
Location: 38 Prev | Next Part: 9910208 *Qty: 1 GRILLE (GRIGLIA) $158.88
Location: 39 Prev | Next Part: 7090117 *Qty: 1 GASKET (GUARNIZIONE) $49.82
Location: 40 Prev | Next Part: 4135636 *Qty: 1 BRACKET (STAFFA) $76.07
Location: 41 Prev | Next Part: 74001517 *Qty: 1 CONVEYOR (CONVOGLIATORE SX) $796.17
Location: 42 Prev | Next Part: 74001522 *Qty: 1 GASKET (GUARNIZIONE) $8.66

* Quantity shown indicates the number of pieces used in the diagram.
