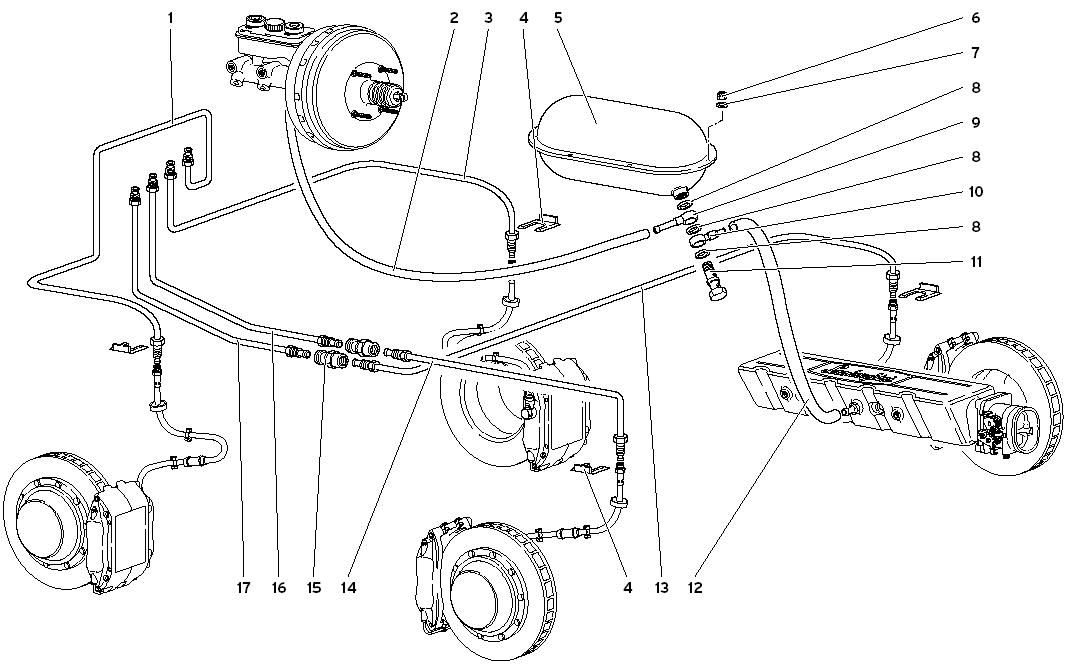

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 31001095 *Qty: 1 PIPE (TUBO) $28.17
Location: 2 Prev | Next Part: 3226068 *Qty: 1 FLEX. HOSE (TUBO FLESSIBILE) $192.70
Location: 2 Prev | Next Part: 3232549 *Qty: 1 FLEX. HOSE (76 TUBO FLESSIBILE) $102.55
Location: 2 Prev | Next Part: 3232549 *Qty: 1 FLEX. HOSE (74 TUBO FLESSIBILE) $102.55
Location: 3 Prev | Next Part: 31001092 *Qty: 1 PIPE (TUBO) $119.59
Location: 4 Prev | Next Part: 3130840 *Qty: 4 PLATE (PIASTRINA) $28.43
Location: 5 Prev | Next Part: 3204974 *Qty: 1 VACUUM TANK (SERBATOIO A DEPRES.) $514.02
Location: 6 Prev | Next Part: 8200503 *Qty: 4 NUT (DADO) $3.38
Location: 7 Prev | Next Part: 8400502 *Qty: 4 WASHER (RONDELLA) Call
Location: 8 Prev | Next Part: 3101513 *Qty: 3 WASHER (RONDELLA) $0.90
Location: 9 Prev | Next Part: 3230031 *Qty: 1 CONNECTION (RACCORDO) $34.10
Location: 10 Prev | Next Part: 3230030 *Qty: 1 VALVE (VALVOLA DI NON RITORNO) $26.29
Location: 11 Prev | Next Part: 3101486 *Qty: 1 SCREW (VITE FORATA) $31.67
Location: 12 Prev | Next Part: 3226067 *Qty: 1 FLEX. HOSE (TUBO FLESSIBILE) Call
Location: 13 Prev | Next Part: 32001099 *Qty: 1 PIPE (TUBO) $267.34
Location: 14 Prev | Next Part: 32001103 *Qty: 1 PIPE (TUBO) $179.37
Location: 15 Prev | Next Part: 32001595 *Qty: 2 CONNECTION (RACCORDO) Call
Location: 16 Prev | Next Part: 32001102 *Qty: 1 PIPE (TUBO) $221.21
Location: 17 Prev | Next Part: 32001098 *Qty: 1 PIPE (TUBO) Call

* Quantity shown indicates the number of pieces used in the diagram.
