ACCELERATOR CABLES

Go to Split View

ACCELERATOR CABLES

in cart
Go to Split View

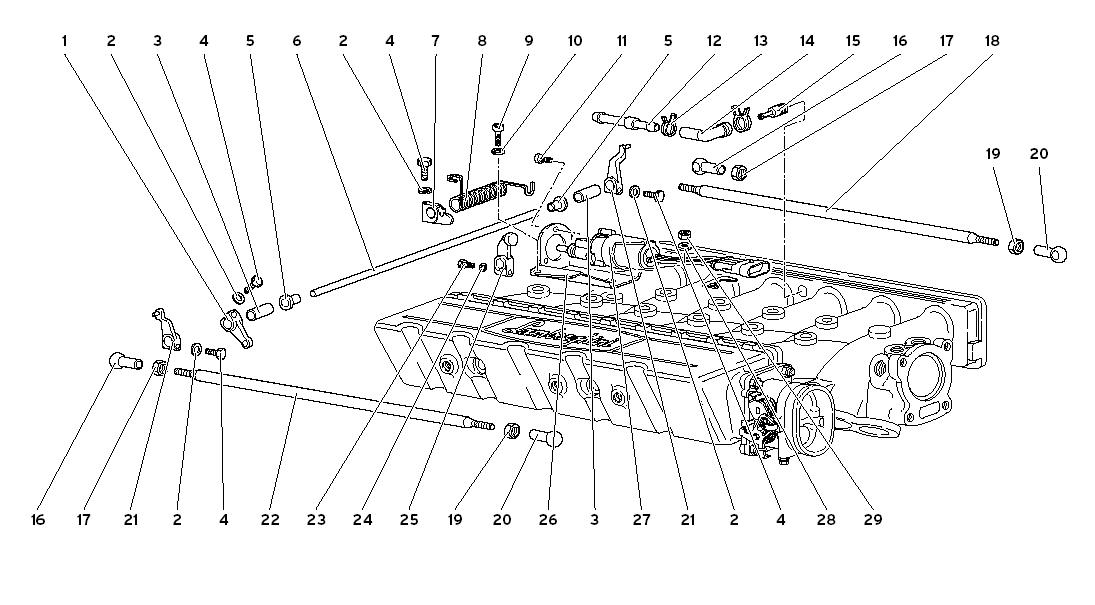

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 1301093 *Qty: 1 LEVER (LEVA) $68.43
Location: 2 Prev | Next Part: 8410602 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 3 Prev | Next Part: 1323136 *Qty: 2 SPACER (DISTANZIALE) $13.45
Location: 4 Prev | Next Part: 8100601 *Qty: 4 SCREW (VITE) $0.90
Location: 5 Prev | Next Part: 8801204 *Qty: 2 BUSHING (BOCCOLA) $9.49
Location: 6 Prev | Next Part: 1323135 *Qty: 1 SMALL SHAFT (ALBERINO) $32.47
Location: 7 Prev | Next Part: 1331005 *Qty: 1 LEVER (LEVA) $37.48
Location: 8 Prev | Next Part: 1335958 *Qty: 1 SPRING (MOLLA) $32.81
Location: 9 Prev | Next Part: 8700646 *Qty: 1 SCREW (VITE) $0.90
Location: 10 Prev | Next Part: 8410602 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 11 Prev | Next Part: 8700465 *Qty: 3 SCREW (VITE) $0.90
Location: 12 Prev | Next Part: 1329319 *Qty: 1 CONNECTION (RACCORDO) $1.21
Location: 13 Prev | Next Part: 8830122 *Qty: 2 STRAP (FASCETTA) $0.90
Location: 14 Prev | Next Part: 1329321 *Qty: 2 CONNECTION (RACCORDO) $10.27
Location: 15 Prev | Next Part: 1328721 *Qty: 2 CONNECTION (RACCORDO) $19.80
Location: 16 Prev | Next Part: 1300804 *Qty: 2 COUPLING HEAD (TESTA GIUNTO SFERICO) $11.57
Location: 17 Prev | Next Part: 8200501 *Qty: 2 NUT (DADO) $0.90
Location: 18 Prev | Next Part: 1328014 *Qty: 1 LEFT TIE ROD (TIRANTE SX) $194.26
Location: 19 Prev | Next Part: 8200504 *Qty: 2 NUT (DADO) $15.71
Location: 20 Prev | Next Part: 1308539 *Qty: 2 COUPLING HEAD (TESTA GIUNTO SFERICO) Call
Location: 21 Prev | Next Part: 13001358 *Qty: 2 LEVER (LEVA) $82.83
Location: 22 Prev | Next Part: 1328016 *Qty: 1 RIGHT TIE ROD (TIRANTE DX) $285.80
Location: 23 Prev | Next Part: 8100601 *Qty: 1 SCREW (VITE) $0.90
Location: 24 Prev | Next Part: 8410602 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 25 Prev | Next Part: 1337826 *Qty: 1 LEVER (LEVA) $83.28
Location: 26 Prev | Next Part: 1337818 *Qty: 1 SUPPORT (SUPPORTO) $62.82
Location: 27 Prev | Next Part: 6137792 *Qty: 1 CONTROL (COMANDO) Call
Location: 28 Prev | Next Part: 8400606 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 29 Prev | Next Part: 8200606 *Qty: 1 NUT (DADO) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
