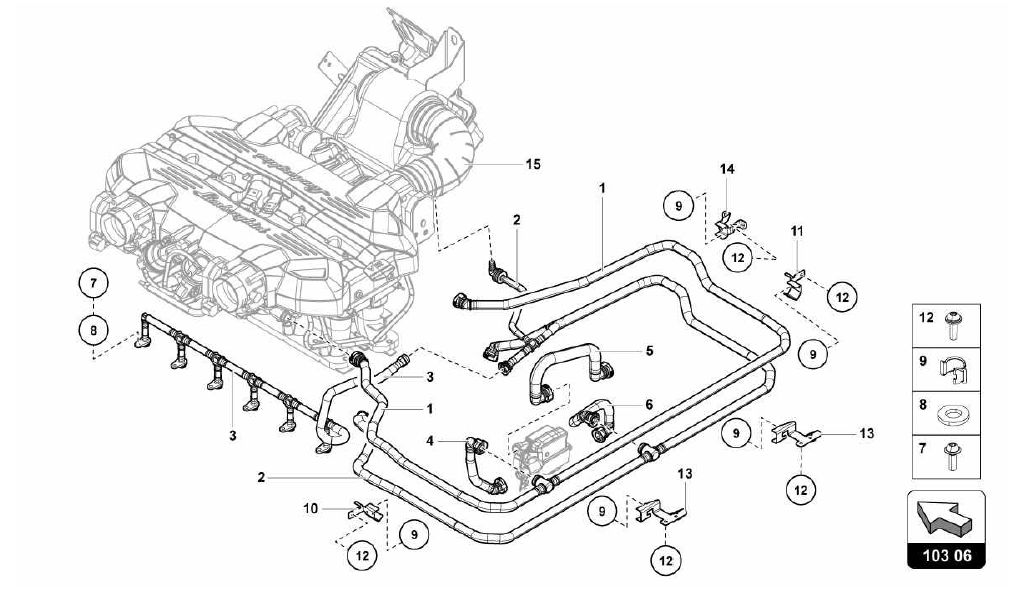

103.06.00-BLOW BY SYSTEM - UNTIL THE VIN CLA00338

Go to Split View

103.06.00-BLOW BY SYSTEM - UNTIL THE VIN CLA00338

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470103214B *Qty: 1 BREATHER LINE $73.15
Location: 2 Prev | Next Part: 470103218C *Qty: 1 BREATHER LINE $175.67
Location: 3 Prev | Next Part: 7M103209C *Qty: 1 BREATHER LINE $194.15
Location: 4 Prev | Next Part: 470103221B *Qty: 1 BREATHER LINE $64.09
Location: 5 Prev | Next Part: *Qty: 0 BREATHER LINE (SEE TABLE 103.06.00) Call
Location: 6 Prev | Next Part: 470103223 *Qty: 1 BREATHER LINE $53.58
Location: 7 Prev | Next Part: N10558102 *Qty: 6 SCREW M6X18 $0.90
Location: 8 Prev | Next Part: N01152427 *Qty: 6 WASHER $0.90
Location: 9 Prev | Next Part: 470103210C *Qty: 1 BREATHER LINE $101.17
Location: 10 Prev | Next Part: 470103585 *Qty: 0 LH SUPPORT $13.52
Location: 11 Prev | Next Part: 470103584 *Qty: 0 RH SUPPORT $22.94
Location: 12 Prev | Next Part: *Qty: 0 INTAKE HOSE (SEE TABLE 133.01.00) Call
Location: 13 Prev | Next Part: *Qty: 0 OIL TANK (SEE TABLE 117.02.00) Call
Location: 15 Prev | Next Part: *Qty: 0 INTAKE HOSE (SEE TABLE 133.01.00) Call

* Quantity shown indicates the number of pieces used in the diagram.
