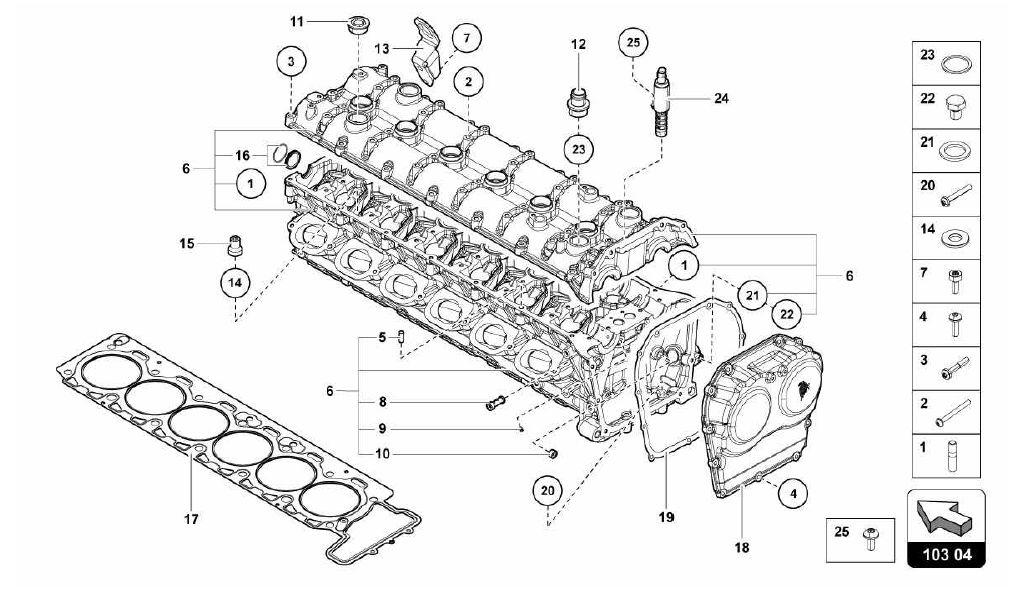

103.04.00-RIGHT CYLINDER HEAD AND COVER

Go to Split View

103.04.00-RIGHT CYLINDER HEAD AND COVER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470103210B *Qty: 1 BREATHER LINE $228.33
Location: 1 Prev | Next Part: WHT003028 *Qty: 18 STUD BOLT M8X25 $14.79
Location: 2 Prev | Next Part: 470103218B *Qty: 1 BREATHER LINE $393.86
Location: 2 Prev | Next Part: N91089601 *Qty: 28 SCREW M6X60 $0.90
Location: 3 Prev | Next Part: 7M103209B *Qty: 1 BREATHER LINE $177.77
Location: 3 Prev | Next Part: N91127601 *Qty: 15 SCREW M6X35X16 $0.90
Location: 4 Prev | Next Part: 470103221A *Qty: 1 BREATHER LINE $71.99
Location: 4 Prev | Next Part: N10124306 *Qty: 11 SCREW M6X20 $0.90
Location: 5 Prev | Next Part: 470103235A *Qty: 1 BREATHER LINE $52.27
Location: 5 Prev | Next Part: 7M101110 *Qty: 4 BUSHING $6.34
Location: 6 Prev | Next Part: 470103214A *Qty: 1 BREATHER LINE $85.18
Location: 6 Prev | Next Part: *Qty: 1 RH CYLINDER HEAD (NOT AVAILABLE) Call
Location: 6 Prev | Next Part: 7M103066E *Qty: 1 RH CYLINDER HEAD $13,256.72
Location: 7 Prev | Next Part: N91137001 *Qty: 2 SCREW M10X28 $6.36
Location: 7 Prev | Next Part: N10558102 *Qty: 6 SCREW M6X18 $0.90
Location: 8 Prev | Next Part: 7M109291C *Qty: 2 PLUG $25.33
Location: 8 Prev | Next Part: N01152427 *Qty: 6 WASHER $0.90
Location: 9 Prev | Next Part: 7M109291 *Qty: 2 PLUG $36.24
Location: 9 Prev | Next Part: 3A0971842 *Qty: 10 CLAMP $5.59
Location: 10 Prev | Next Part: 7M109291A *Qty: 8 PLUG $36.07
Location: 10 Prev | Next Part: 470103585A *Qty: 1 LH SUPPORT $131.35
Location: 11 Prev | Next Part: 7M103037A *Qty: 3 PLUG $32.44
Location: 11 Prev | Next Part: 470103584A *Qty: 1 RH SUPPORT $131.22
Location: 12 Prev | Next Part: 7M103037C *Qty: 1 PIPE FITTING $41.15
Location: 12 Prev | Next Part: N91054001 *Qty: 8 SCREW M6X22 $0.90
Location: 13 Prev | Next Part: 7M199080D *Qty: 1 HOOK $34.80
Location: 13 Prev | Next Part: 470103554B *Qty: 2 SUPPORT $226.72
Location: 14 Prev | Next Part: WHT004875A *Qty: 14 WASHER $7.00
Location: 14 Prev | Next Part: 470103595B *Qty: 1 SUPPORT $237.57
Location: 15 Prev | Next Part: 7M103448C *Qty: 14 NUT M11X1 $21.22
Location: 16 Prev | Next Part: 7M103113B *Qty: 2 COVER $203.84
Location: 18 Prev | Next Part: *Qty: 1 RH HEAD PHASE TRANSFORMER COVER ASSEMBLY (NOT AVAILABLE) Call
Location: 19 Prev | Next Part: 7M109091D *Qty: 1 GASKET $28.16
Location: 20 Prev | Next Part: N10405702 *Qty: 2 SCREW M6X45 $0.90
Location: 21 Prev | Next Part: N0138302 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: N0102358 *Qty: 2 SCREW M8X10 $0.93
Location: 23 Prev | Next Part: WHT000674 *Qty: 1 WASHER $1.43
Location: 24 Prev | Next Part: 6E109257J *Qty: 2 SOLENOID VALVE ASSEMBLY $113.50
Location: 25 Prev | Next Part: N91068201 *Qty: 2 SCREW M4X10 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
