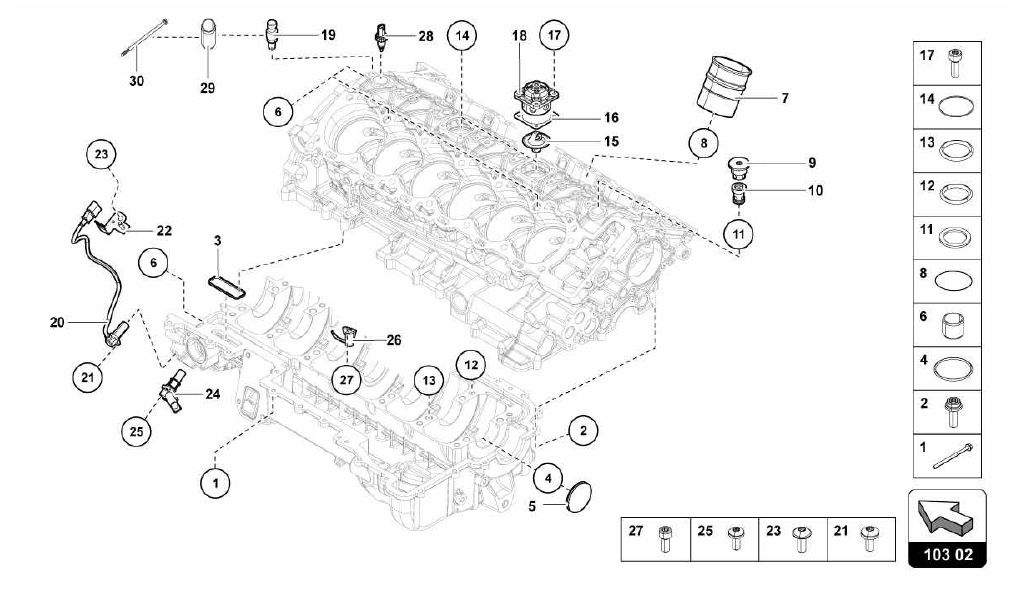

103.02.00-OIL SUMP

Go to Split View

103.02.00-OIL SUMP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10709401 *Qty: 1 SCREW BM8X120X80 $4.36
Location: 2 Prev | Next Part: N10689302 *Qty: 24 SCREW M8X25 $1.00
Location: 3 Prev | Next Part: 7M103121A *Qty: 1 SEAL $14.24
Location: 4 Prev | Next Part: N91084501 *Qty: 1 SEAL RING $4.13
Location: 5 Prev | Next Part: 7M103627 *Qty: 1 PLUG $29.75
Location: 6 Prev | Next Part: 22103139B *Qty: 6 BUSHING $1.91
Location: 7 Prev | Next Part: *Qty: 0 95 DIAMETER CYLINDER LINER (NOT AVAILABLE) Call
Location: 8 Prev | Next Part: *Qty: 0 SEAL RING (NOT AVAILABLE) Call
Location: 9 Prev | Next Part: 7M103937A *Qty: 1 PLUG $20.58
Location: 10 Prev | Next Part: 7M115540 *Qty: 1 VALVE $58.14
Location: 11 Prev | Next Part: WHT000406 *Qty: 1 WASHER $2.23
Location: 12 Prev | Next Part: N91014801 *Qty: 14 SEAL RING $1.05
Location: 13 Prev | Next Part: N90111301 *Qty: 14 SEAL RING $0.93
Location: 14 Prev | Next Part: N90443601 *Qty: 2 SEAL RING $5.45
Location: 15 Prev | Next Part: 50121113B *Qty: 2 WATER THERMOSTAT $57.98
Location: 16 Prev | Next Part: 7M103649 *Qty: 2 SEAL $3.47
Location: 17 Prev | Next Part: N91084801 *Qty: 8 SCREW M6X18 $0.90
Location: 18 Prev | Next Part: 7M121121E *Qty: 2 COVER $153.18
Location: 19 Prev | Next Part: 7L919561B *Qty: 1 ENGINE OIL PRESSURE SENSOR $194.19
Location: 20 Prev | Next Part: 79905381 *Qty: 1 CRANKSHAFT POSITION SENSOR $65.93
Location: 21 Prev | Next Part: N91096702 *Qty: 1 SCREW M6X16 $0.90
Location: 22 Prev | Next Part: 470971504 *Qty: 1 SUPPORT $34.65
Location: 23 Prev | Next Part: N90780901 *Qty: 1 SCREW M6X16 $0.90
Location: 24 Prev | Next Part: 79907601 *Qty: 1 TRANSMISSION RANGE SENSOR $142.41
Location: 25 Prev | Next Part: N91096702 *Qty: 1 SCREW M6X16 $0.90
Location: 26 Prev | Next Part: 7M103158E *Qty: 7 NOZZLE FOR PISTONS COOLING $59.48
Location: 27 Prev | Next Part: N10456103 *Qty: 1 SCREW M4X10 $0.90
Location: 28 Prev | Next Part: 59919523A *Qty: 2 TEMPERATURE SENSOR $49.34
Location: 29 Prev | Next Part: 470971729 *Qty: 1 HEATING PROTECTION SHEATH $9.82
Location: 30 Prev | Next Part: N10562301 *Qty: 1 CLAMP $0.91

* Quantity shown indicates the number of pieces used in the diagram.
