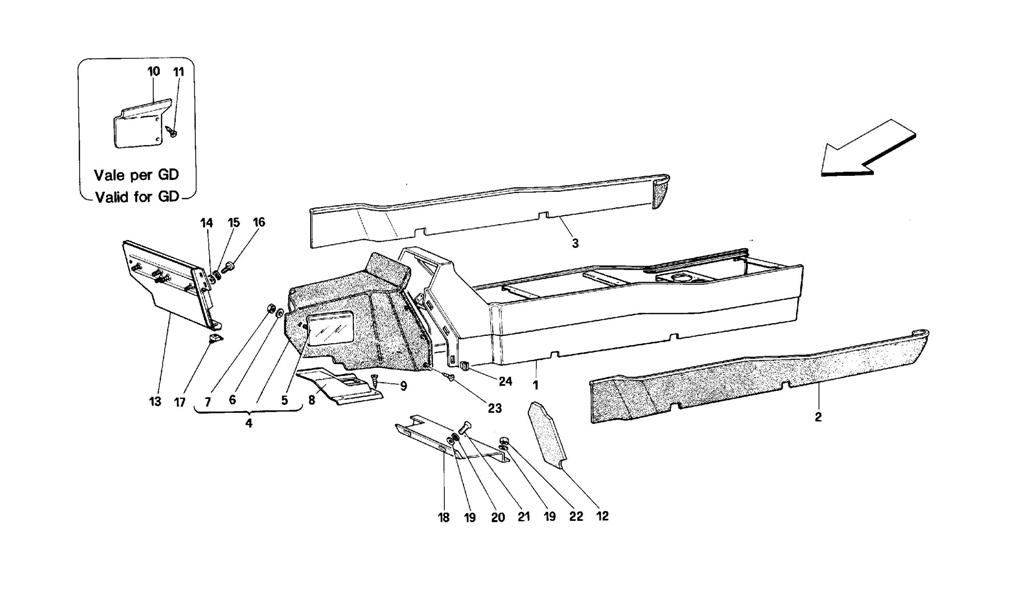

TUNNEL - FRAMEWORK AND LININGS - COUPE -

TUNNEL - FRAMEWORK AND LININGS - COUPE -

Location Part # Quantity* Description Price Add To Cart
1 628638.. 1 L.H. side lining Unavailable
1 628639.. 1 R.H. side lining Unavailable
1 628099.. 1 Lined tunnel -Valid for RHD Unavailable
1 625210.. 1 Lined tunnel -Valid for GS Unavailable
2 625218.. 1 L.H. moquette for tunnel Unavailable
3 625221.. 1 R.H. moquette for tunnel Unavailable
4 625231.. 1 Front tunnel lining -Valid for GS Unavailable
4 625681.. 1 Lined front tunnel -Valid for GS Unavailable
4 628103.. 1 Lined front tunnel -Valid for RHD Unavailable
4 628131.. 1 Front tunnel lining -Valid for RHD Unavailable
5 61120800 1 Front tunnel protection -Valid for GS $15.37
5 61124100 1 Front tunnel protection -Valid for RHD $50.53
6 12638124 2 Washer $0.90
7 169180 2 Nut Unavailable
8 61066900 1 Accelerator pedal cover -Valid for GS $69.24
8 61112800 1 Accelerator pedal cover -Valid for RHD $266.36
9 15902678 3 Screw Unavailable
10 62858900 1 Accelerator side protection -Valid for RHD $103.57
11 15671402 3 Screw Unavailable
12 62840600 1 Foot rest protection -Valid for RHD $16.28
12 62661900 1 Foot rest protection -Valid for GS $80.79
13 62532500 1 Foot rest passenger side -Valid for GS $93.77
13 62802700 1 Foot rest passenger side -Valid for RHD $76.96
14 12643724 4 Washer Superseded
15 10615471 4 Washer Unavailable
16 13276470 4 Screw Unavailable
17 60758600 2 Nut Unavailable
18 61151600 1 Foot rest driver side -Valid for RHD $36.97
19 10519424 5 Washer Unavailable
20 10615471 2 Washer Unavailable
21 10902011 2 Screw Unavailable
22 102948 3 Nut Superseded
23 15687375 6 Screw Unavailable
24 62551200 6 Block Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
