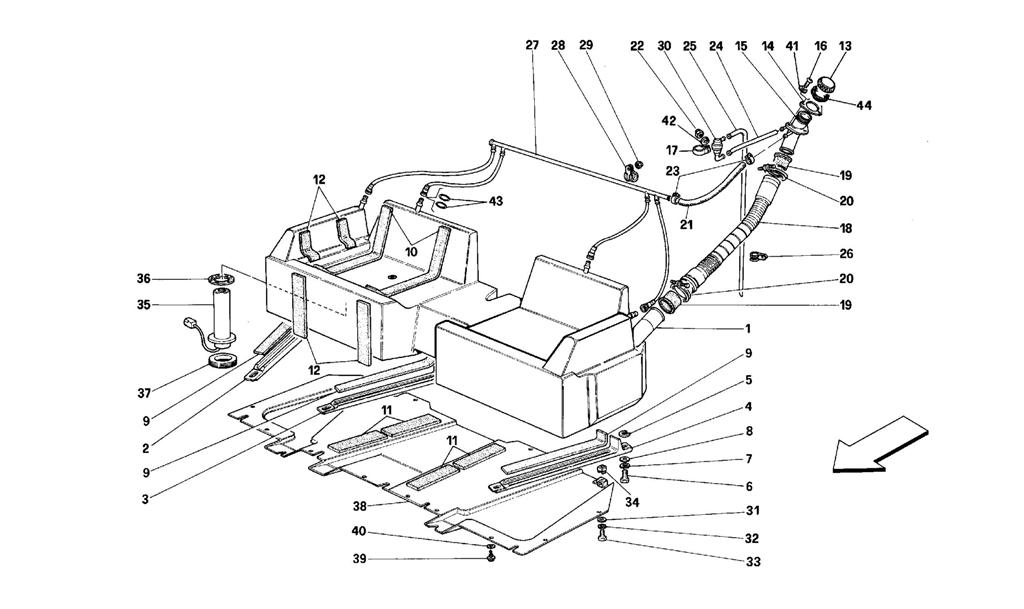

TANK AND FUEL BREATHER DEVICE -CABRIOLET - NOT FOR CARS WITH CATALYSTS-

Back to Mondial t components
Go to Split View
Previous Table
Next Table

TANK AND FUEL BREATHER DEVICE -CABRIOLET - NOT FOR CARS WITH CATALYSTS-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 133966 *Qty: 1 Fuel tank $5,779.77
Location: 2 Prev | Next Part: 139177 *Qty: 1 R.H. bracket $48.78
Location: 3 Prev | Next Part: 139178 *Qty: 1 Central bracket $68.31
Location: 4 Prev | Next Part: 139179 *Qty: 1 L.H. bracket $48.97
Location: 5 Prev | Next Part: 140746 *Qty: 0 Washer -Thick. 3- -For possible assembly Unavailable
Location: 5 Prev | Next Part: 140747 *Qty: 0 Washer -Thick. 4- -For possible assembly $54.87
Location: 5 Prev | Next Part: 140745 *Qty: 0 Washer -Thick. 2- -For possible assembly $1.43
Location: 6 Prev | Next Part: 11306921 *Qty: 6 Screw Unavailable
Location: 7 Prev | Next Part: 127497 *Qty: 6 Washer $0.90
Location: 8 Prev | Next Part: 14496621 *Qty: 6 Washer Unavailable
Location: 9 Prev | Next Part: 139518 *Qty: 3 Rubber spacer $7.20
Location: 10 Prev | Next Part: 141256 *Qty: 4 Rubber spacer $7.20
Location: 11 Prev | Next Part: 115330 *Qty: 10 Rubber spacer $11.72
Location: 12 Prev | Next Part: 139504 *Qty: 8 Rubber spacer $3.88
Location: 13 Prev | Next Part: 180320 *Qty: 1 Plug $826.24
Location: 14 Prev | Next Part: 123897 *Qty: 1 Gasket $38.31
Location: 15 Prev | Next Part: 140930 *Qty: 1 Filler cap $303.88
Location: 16 Prev | Next Part: 14064511 *Qty: 3 Screw $1.24
Location: 17 Prev | Next Part: 139980 *Qty: 1 Bracket $2.97
Location: 18 Prev | Next Part: 141032 *Qty: 1 Filler cap - Tank connection pipe $0.35
Location: 19 Prev | Next Part: 141033 *Qty: 2 Gasket $20.84
Location: 20 Prev | Next Part: 12182290 *Qty: 2 Clamp Unavailable
Location: 21 Prev | Next Part: 140935 *Qty: 1 Pipe from breather to filler cap $5.16
Location: 22 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 23 Prev | Next Part: 13000290 *Qty: 2 Clamps $1.08
Location: 24 Prev | Next Part: 141257 *Qty: 1 Breather pipe from filler cap to valve $5.52
Location: 25 Prev | Next Part: 141258 *Qty: 1 Breather pipe from valve $13.44
Location: 26 Prev | Next Part: 10115701 *Qty: 2 Bracket with sheath Unavailable
Location: 27 Prev | Next Part: 133964 *Qty: 1 Breather pipe Unavailable
Location: 28 Prev | Next Part: 10441290 *Qty: 2 Bracket with sheath Unavailable
Location: 29 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 30 Prev | Next Part: 139568 *Qty: 1 Anti-turnover valve Unavailable
Location: 31 Prev | Next Part: 12643724 *Qty: 12 Washer Superseded
Location: 32 Prev | Next Part: 127494 *Qty: 12 Washer $0.90
Location: 33 Prev | Next Part: 10902221 *Qty: 12 Screw Unavailable
Location: 34 Prev | Next Part: 60758600 *Qty: 2 Nut with cage $0.90
Location: 35 Prev | Next Part: 137419 *Qty: 1 Level gauge switch Unavailable
Location: 36 Prev | Next Part: 154802 *Qty: 1 Gasket Unavailable
Location: 37 Prev | Next Part: 121435 *Qty: 1 Ring nut $135.45
Location: 38 Prev | Next Part: 140361 *Qty: 1 Tank guard plate $2,255.50
Location: 39 Prev | Next Part: 15829001 *Qty: 8 Screw Unavailable
Location: 40 Prev | Next Part: 14497701 *Qty: 8 Washer Unavailable
Location: 41 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 42 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 43 Prev | Next Part: 133956 *Qty: 8 O-Ring $1.05
Location: 44 Prev | Next Part: 180585 *Qty: 1 Gasket for cap $80.16

* Quantity shown indicates the number of pieces used in the diagram.
