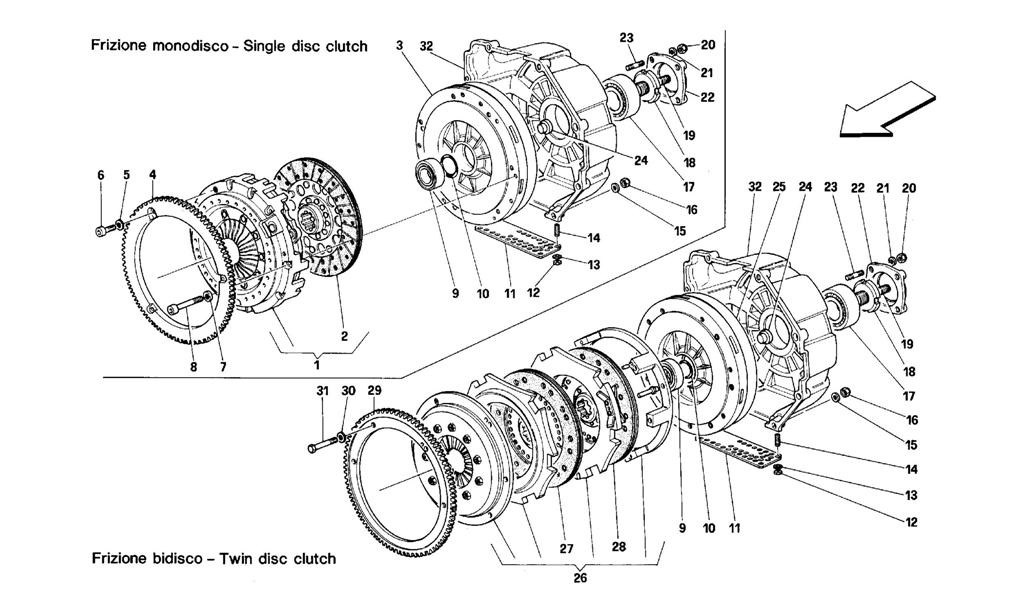

SINGLE AND DOUBLE DISC CLUTCH

Location Part # Quantity* Description Price Add To Cart
- 143279 1 Clutch housing compl. -Valid till engine Nr. 24980 $1,985.71
- 150463 1 Clutch housing compl. -From engine Nr. 24981 $1,351.86
1 143567 1 Clutch compl. -"VALEO" type -Valid for F.E. Unavailable
1 146407 1 Clutch compl. -"AP" type - Not for F.E. $12,394.45
2 146409 1 Clutch disc -"AP" type Unavailable
2 138979 1 Clutch disc -"VALEO" type -Valid for clutch 138978 and 143567 Unavailable
3 146572 1 Flywheel $12,978.32
4 144015 1 Rim $1,186.74
5 10569279 3 Washer Unavailable
6 14305720 3 Screw Superseded
7 10569279 9 Washer Unavailable
8 14306034 9 Screw Unavailable
9 131051 1 Bearing $30.45
10 104984 1 Seal ring $1.97
11 136058 1 Plate $259.35
12 15896470 4 Nut Unavailable
13 12601174 4 Washer $0.90
14 13539024 4 Stud $2.11
15 12601374 7 Washer $0.90
16 133989 7 Nut $0.90
17 136957 1 Bearing $308.54
18 136879 1 Screw $62.00
19 13813421 1 Screw $8.69
20 133989 4 Nut $0.90
21 12601374 4 Washer $0.90
22 171408 1 Cover $187.04
23 12354524 4 Stud $41.09
24 142989 1 Spacer Unavailable
25 146571 1 Flywheel Unavailable
26 136800 1 Double disc clutch compl. $4,125.04
27 136805 1 Clutch disc Unavailable
28 136804 1 Clutch disc Unavailable
29 140413 1 Rim $418.38
30 12601374 6 Washer $0.90
31 16044431 6 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
