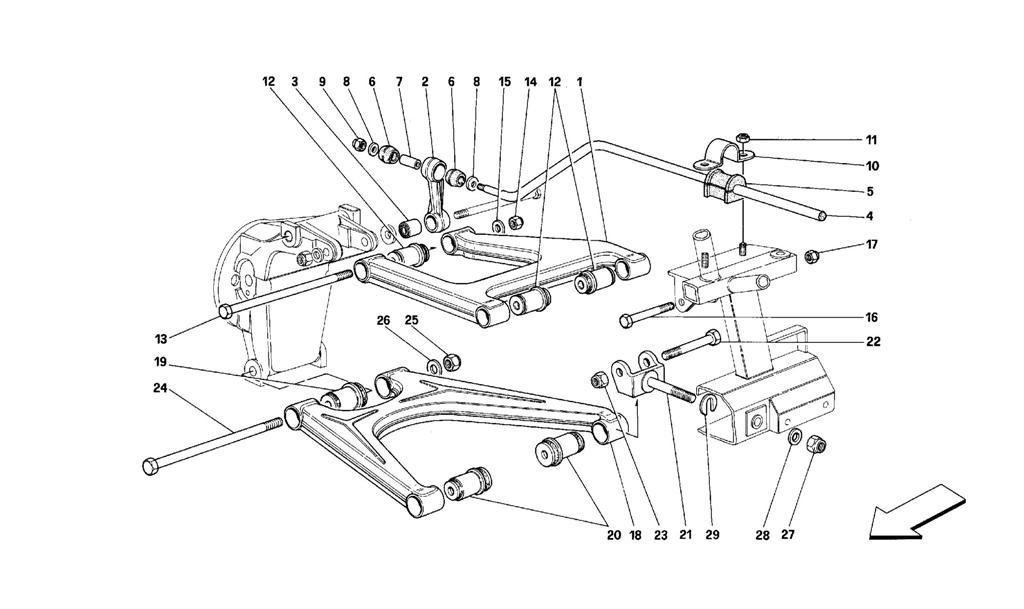

REAR SUSPENSION - WISHBONES

Go to Split View

REAR SUSPENSION - WISHBONES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 131923 *Qty: 2 Upper lever $600.97
Location: 2 Prev | Next Part: 108432 *Qty: 2 Bar link $301.63
Location: 3 Prev | Next Part: 100773 *Qty: 2 Silentblock for link $34.12
Location: 4 Prev | Next Part: 137878 *Qty: 1 Stabilizer bar $164.60
Location: 5 Prev | Next Part: 116381 *Qty: 2 Bar pad $120.82
Location: 6 Prev | Next Part: 107335 *Qty: 4 Link pad $21.47
Location: 7 Prev | Next Part: 108294 *Qty: 2 Spacer $97.11
Location: 8 Prev | Next Part: 117285 *Qty: 4 Washer $1.24
Location: 9 Prev | Next Part: 16104425 *Qty: 2 Nut $0.90
Location: 10 Prev | Next Part: 133802 *Qty: 2 Pad fastening plate $9.84
Location: 11 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 12 Prev | Next Part: 154537 *Qty: 8 Upper lever flamblock $43.69
Location: 13 Prev | Next Part: 128904 *Qty: 2 Screw $23.95
Location: 14 Prev | Next Part: 16105125 *Qty: 2 Nut $0.90
Location: 15 Prev | Next Part: 106616 *Qty: 2 Washer $1.51
Location: 16 Prev | Next Part: 106419 *Qty: 4 Screw $20.52
Location: 17 Prev | Next Part: 16105125 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 136186 *Qty: 2 Lower lever $819.64
Location: 19 Prev | Next Part: 154538 *Qty: 4 Lower lever flamblock - connection to hubholder $60.72
Location: 20 Prev | Next Part: 154539 *Qty: 4 Lower lever flamblock - connection to frame $121.75
Location: 21 Prev | Next Part: 159399 *Qty: 4 Lower fork - Rod mm 38 $601.20
Location: 22 Prev | Next Part: 106422 *Qty: 4 Screw $32.43
Location: 23 Prev | Next Part: 150238 *Qty: 4 Nut $0.90
Location: 24 Prev | Next Part: 136218 *Qty: 2 Screw $40.99
Location: 25 Prev | Next Part: 150238 *Qty: 2 Nut $0.90
Location: 26 Prev | Next Part: 105434 *Qty: 2 Washer $23.95
Location: 27 Prev | Next Part: 150238 *Qty: 4 Nut $0.90
Location: 28 Prev | Next Part: 103024 *Qty: 4 Washer $1.45
Location: 29 Prev | Next Part: 107340 *Qty: 0 Thrust washer -Thick. mm 2,5 $2.00
Location: 29 Prev | Next Part: 107341 *Qty: 0 Thrust washer -Thick. mm 3 $2.00
Location: 29 Prev | Next Part: 107342 *Qty: 0 Thrust washer -Thick. mm 3,25 $1.04
Location: 29 Prev | Next Part: 101039 *Qty: 4 Thrust washer -Thick. mm 1 Call
Location: 29 Prev | Next Part: 107338 *Qty: 0 Thrust washer -Thick. mm 1,5 $2.00
Location: 29 Prev | Next Part: 107339 *Qty: 0 Thrust washer -Thick. mm 2 Call

* Quantity shown indicates the number of pieces used in the diagram.
