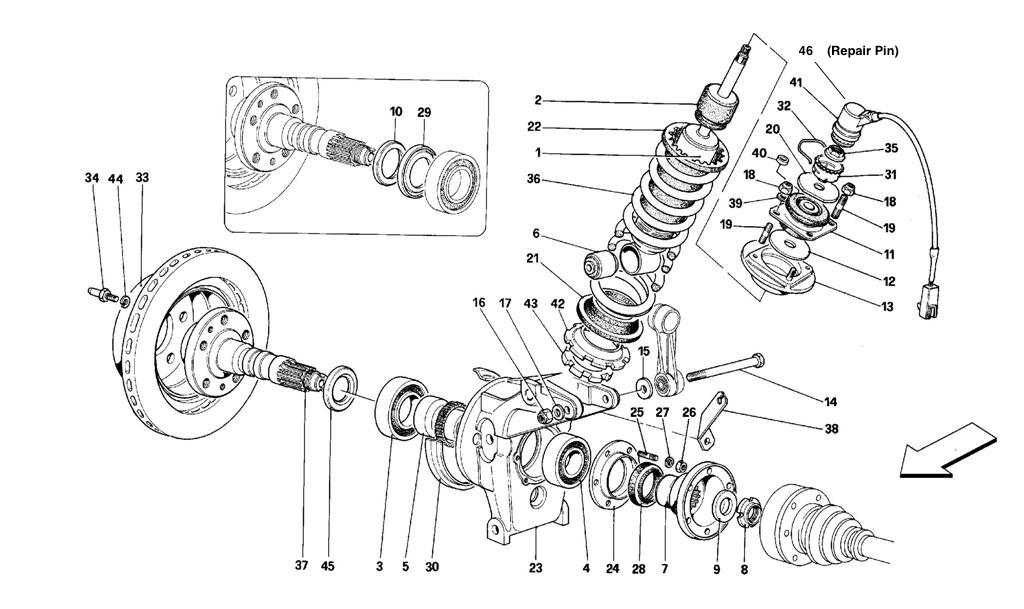

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 137830 *Qty: 2 Shock absorber -Sold in pair Unavailable
Location: 2 Prev | Next Part: 137827 *Qty: 2 Plug Unavailable
Location: 3 Prev | Next Part: 144807 *Qty: 2 Outer bearing $124.53
Location: 4 Prev | Next Part: 145805 *Qty: 2 Inner bearing $143.66
Location: 5 Prev | Next Part: 145551 *Qty: 2 Spacer with toothed wheel $2,546.27
Location: 6 Prev | Next Part: 130516 *Qty: 2 Estendblock $37.43
Location: 7 Prev | Next Part: 119372 *Qty: 2 Flange connecting axle shafts $374.50
Location: 8 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 9 Prev | Next Part: 105511 *Qty: 2 Washer $15.49
Location: 10 Prev | Next Part: 124965 *Qty: 2 Spacer -Not as spare parts -Replace with 144858 eliminating the ring 124966 $56.94
Location: 11 Prev | Next Part: 114812 *Qty: 2 Hyperblock $157.02
Location: 12 Prev | Next Part: 114815 *Qty: 2 Washer $2.04
Location: 13 Prev | Next Part: 151547 *Qty: 2 Cap $42.45
Location: 14 Prev | Next Part: 105901 *Qty: 2 Screw $23.55
Location: 15 Prev | Next Part: 132199 *Qty: 2 Washer $3.59
Location: 16 Prev | Next Part: 16105125 *Qty: 0 Nut Unavailable
Location: 17 Prev | Next Part: 10520024 *Qty: 0 Washer $2.57
Location: 18 Prev | Next Part: 104030 *Qty: 0 Nut $0.90
Location: 19 Prev | Next Part: 13543524 *Qty: 0 Stud bolt $5.27
Location: 20 Prev | Next Part: 137825 *Qty: 2 Washer $1.48
Location: 21 Prev | Next Part: 113581 *Qty: 2 Lower spacer $24.60
Location: 22 Prev | Next Part: 113582 *Qty: 2 Upper spacer $124.63
Location: 23 Prev | Next Part: 136249 *Qty: 1 Right hub holder -Valid till car Ass. Nr. 6500 $1,196.34
Location: 23 Prev | Next Part: 136250 *Qty: 1 Left hub holder -Valid till car Ass. Nr. 6500 $4,024.19
Location: 23 Prev | Next Part: 151238 *Qty: 1 Right hub holder -Valid from car Ass. Nr. 6501 $1,379.49
Location: 23 Prev | Next Part: 151239 *Qty: 1 Left hub holder -Valid from car Ass. Nr. 6501 $1,434.67
Location: 24 Prev | Next Part: 125976 *Qty: 2 Flange for bearing $69.95
Location: 25 Prev | Next Part: 13543324 *Qty: 0 Stud bolt $3.53
Location: 26 Prev | Next Part: 16100821 *Qty: 0 Nut Unavailable
Location: 27 Prev | Next Part: 127496 *Qty: 12 Washer $0.90
Location: 28 Prev | Next Part: 115968 *Qty: 2 Sealing ring $57.44
Location: 29 Prev | Next Part: 124966 *Qty: 2 Centrifugal ring -Not as spare parts -Replace with 144858 eliminating the ring 124965 $39.53
Location: 30 Prev | Next Part: 103117 *Qty: 2 Splash guard $14.39
Location: 31 Prev | Next Part: 137824 *Qty: 2 Support Unavailable
Location: 32 Prev | Next Part: 142079 *Qty: 2 Spring $7.75
Location: 33 Prev | Next Part: 117186 *Qty: 2 Brake disc $592.76
Location: 34 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 35 Prev | Next Part: 137826 *Qty: 2 Nut $3.70
Location: 36 Prev | Next Part: 143043 *Qty: 2 Suspension spring -Sold in pair $126.29
Location: 37 Prev | Next Part: 144951 *Qty: 2 Shaft -Valid from car Ass. Nr. 2181 $2,614.96
Location: 38 Prev | Next Part: 131869 *Qty: 1 R.H. bracket $4.24
Location: 38 Prev | Next Part: 131870 *Qty: 1 L.H. bracket $4.24
Location: 39 Prev | Next Part: 12646724 *Qty: 0 Washer Unavailable
Location: 40 Prev | Next Part: 113113 *Qty: 2 Washer $4.61
Location: 41 Prev | Next Part: 137831 *Qty: 2 Actuator $2,048.29
Location: 42 Prev | Next Part: 155086 *Qty: 2 Plate $86.00
Location: 43 Prev | Next Part: 141860 *Qty: 2 Threaded ring nut $65.00
Location: 44 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 45 Prev | Next Part: 144858 *Qty: 2 Spacer-Valid till car Ass. Nr. 2180 -For hub shaft 132408 $95.13
Location: 45 Prev | Next Part: 144907 *Qty: 2 Spacer -Valid from car Ass. Nr. 2181 -For hub shaft 144951 $302.41
Location: 46 Prev | Next Part: SAG456/MONT *Qty: 2 Actuator Gear and Pin $51.00

* Quantity shown indicates the number of pieces used in the diagram.
