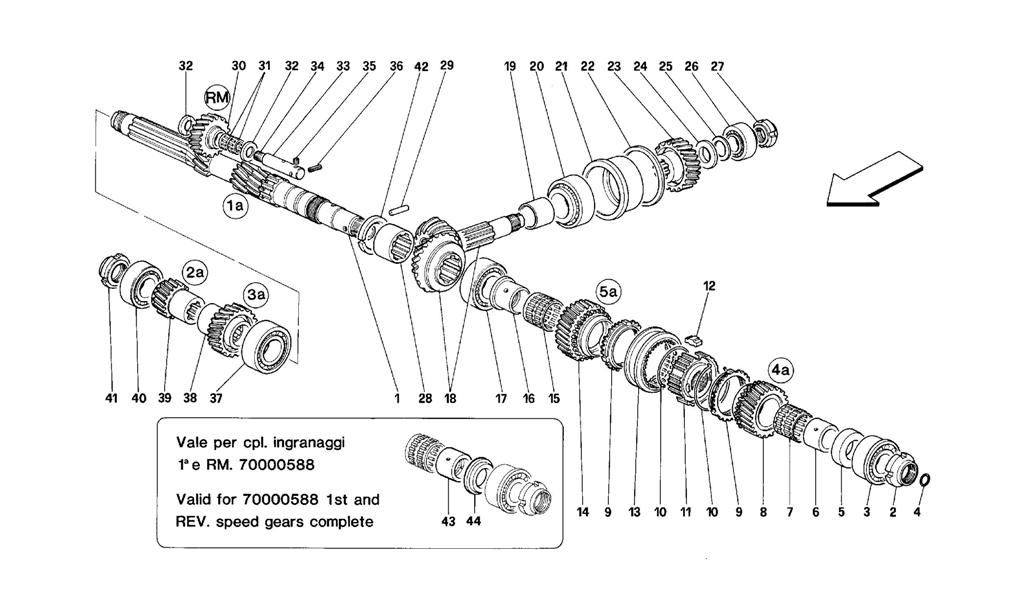

MAIN SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
- 70000597 1 2nd gear complete series - Valid for CH $770.45
- 70000783 1 Complete series of 1st and reverse gears -Valid to ungrooved race pos. 6 and spacer pos. 5 -V $6,334.47
- 70000784 1 4th gear complete series -Valid to ungrooved race pos. 6 and spacer pos. 5 -Valid after stock e $2,168.95
- 70000589 1 2nd gear complete series - Not for CH $6,802.55
- 70000590 1 3rd gear complete series $2,173.22
- 70000592 1 5th gear complete series $1,863.19
2 153000 1 Ring nut $47.04
3 155694 1 Bearing $160.76
4 109724 1 Seal ring $1.81
5 153886 0 Spacer -Thick mm. 5,4- -Valid for ungrooved roller races pos. 6 $33.23
5 150892 0 Spacer -Thick mm. 5,0- -Valid for ungrooved roller races pos. 6 $101.68
5 154118 0 Spacer -Thick mm. 5,5- -Valid for ungrooved roller races pos. 6 $37.05
5 150893 1 Spacer -Thick mm. 4,7- -Valid for ungrooved roller races pos. 6 $218.41
5 150894 0 Spacer -Thick mm. 4,8- -Valid for ungrooved roller races pos. 6 $135.77
5 150895 0 Spacer -Thick mm. 4,9- -Valid for ungrooved roller races pos. 6 $101.85
5 150896 0 Spacer -Thick mm. 5,2- -Valid for ungrooved roller races pos. 6 $33.19
5 150902 0 Spacer -Thick mm. 5,1- -Valid for ungrooved roller races pos. 6 $25.38
5 153885 0 Spacer -Thick mm. 5,3- -Valid for ungrooved roller races pos. 6 $58.12
6 150899 1 Track for 4th gear rollers -Ungrooved $147.72
7 109002 1 4th gear rollers cage $40.58
9 150628 2 Synchronizer floating ring Unavailable
10 145244 2 Ring spring $4.04
11 106046 1 Synchronizer body Unavailable
12 126201 3 Small block for synchronizer $181.97
13 131801 1 Sleeve for synchronizer $710.07
15 109002 1 5th roller cage $40.58
16 131358 1 5th roller track $371.00
17 138714 1 Bearing $1,229.49
18 168047 1 Complete bevel gear pair $1,446.35
19 131335 1 Bearing holder envelope $829.82
20 131015 1 Bearing Unavailable
21 139828 1 Bearing holder envelope $694.24
22 131391 0 Thrust - Thick. mm. 2,1- $94.54
22 131392 0 Thrust - Thick. mm. 2,2- Unavailable
22 131393 0 Thrust - Thick. mm. 2,3- $91.49
22 131388 1 Thrust - Thick. mm. 1,8- $90.62
22 131389 0 Thrust - Thick. mm. 1,9- $36.62
22 70000847 0 TRANS GEAR TRQ $1,384.23
22 131390 0 Thrust - Thick. mm. 2,0- $79.05
24 131372 1 Gear thrust $26.65
25 141048 0 Thrust - Thick. mm. 2,15- $9.42
25 131374 1 Thrust - Thick. mm. 1,8- $18.70
25 131375 0 Thrust - Thick. mm. 1,9- Unavailable
25 131376 0 Thrust - Thick. mm. 2,0- $18.70
25 131377 0 Thrust - Thick. mm. 2,1- $23.12
25 131378 0 Thrust - Thick. mm. 2,2- $18.70
25 131379 0 Thrust - Thick. mm. 2,3- Unavailable
25 141044 0 Thrust - Thick. mm. 1,95- $32.76
25 141046 0 Thrust - Thick. mm. 2,05- $9.28
26 131016 1 Bearing $144.52
27 105137 1 Ring nut $40.00
28 144616 1 Spacer $124.48
29 14601470 1 Pin Unavailable
31 104734 2 Roller cage for reverse idle gear $13.13
32 131425 2 Thrust bearing $17.54
33 131798 1 Reverse idle gear pin $63.76
34 10275550 1 Plug $1.28
35 65928500 1 Plug $31.95
36 14601470 1 Pin Unavailable
37 131056 1 Bearing $290.70
40 108656 1 Bearing $674.95
41 153002 1 Ring nut $319.70
42 144617 1 Spacer ring $43.50
43 131357 1 4th gear roller races -With grooving $100.14
44 145232 1 Spacer - Thick mm. 5,0- -Valid for grooved roller races $76.79
44 145233 1 Spacer - Thick mm. 4,7- -Valid for grooved roller races $40.52
44 145234 1 Spacer - Thick mm. 4,8- -Valid for grooved roller races $40.72
44 145235 1 Spacer - Thick mm. 4,9- -Valid for grooved roller races $40.72
44 145236 1 Spacer - Thick mm. 5,1- -Valid for grooved roller races $40.72
44 145237 1 Spacer - Thick mm. 5,2- -Valid for grooved roller races $245.04

* Quantity shown indicates the number of pieces used in the diagram.
