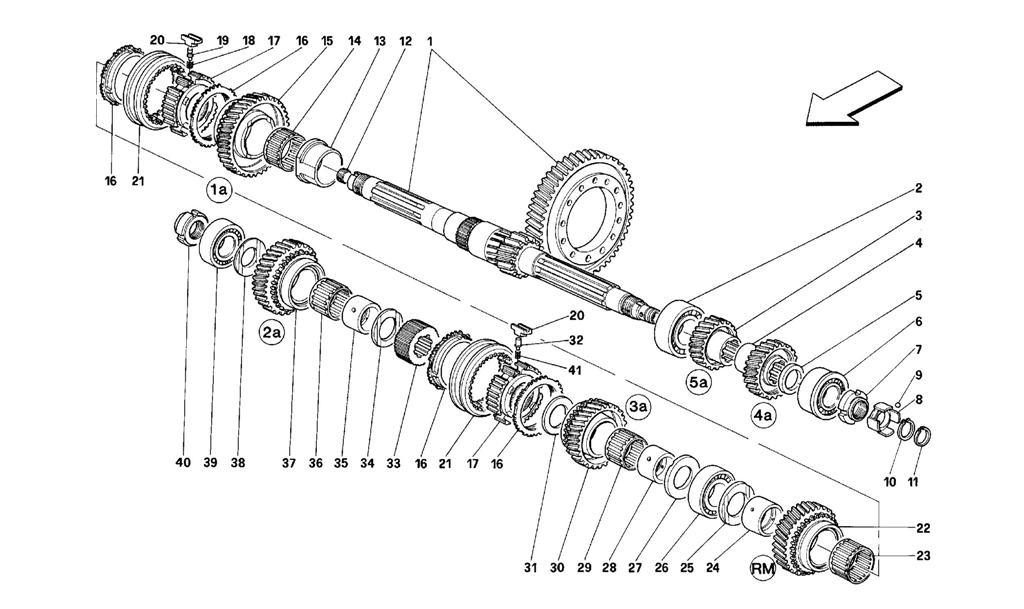

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 70000589 *Qty: 1 2nd gear complete series - No for CH $4,634.35
Location: - Prev | Next Part: 70000590 *Qty: 1 3rd gear complete series $3,120.36
Location: - Prev | Next Part: 70000592 *Qty: 1 5th gear complete series $1,377.23
Location: - Prev | Next Part: 70000597 *Qty: 1 2nd gear complete series - Valid for CH Call
Location: - Prev | Next Part: 70000783 *Qty: 1 Reverse and 1st gear complete series -Valid to ungrooved race pos. 6 and spacer pos. 5 tab. 38 $4,974.51
Location: - Prev | Next Part: 70000784 *Qty: 1 4th gear complete series -Valid to ungrooved race pos. 6 and spacer pos. 5 tab. 38 -Valid after $1,603.23
Location: 1 Prev | Next Part: 70000577 *Qty: 1 Complete bevel gear pair -Not for CH $3,878.89
Location: 1 Prev | Next Part: 70000596 *Qty: 1 Complete bevel gear pair -Vale for CH $991.70
Location: 2 Prev | Next Part: 131334 *Qty: 1 Bearing $547.19
Location: 5 Prev | Next Part: 145332 *Qty: 0 Spacer - Thick mm. 2,8- $15.93
Location: 5 Prev | Next Part: 145333 *Qty: 0 Spacer - Thick mm. 2,9- $16.06
Location: 5 Prev | Next Part: 145329 *Qty: 1 Spacer - Thick mm. 2,5- $15.93
Location: 5 Prev | Next Part: 145330 *Qty: 0 Spacer - Thick mm. 2,6- $15.93
Location: 5 Prev | Next Part: 145331 *Qty: 0 Spacer - Thick mm. 2,7- $15.93
Location: 6 Prev | Next Part: 155694 *Qty: 1 Bearing $132.55
Location: 7 Prev | Next Part: 153002 *Qty: 1 Ring nut $68.63
Location: 8 Prev | Next Part: 122145 *Qty: 1 Trasmitter disc for pulses generator $303.76
Location: 9 Prev | Next Part: 101611 *Qty: 1 Sphere $0.90
Location: 10 Prev | Next Part: 11067276 *Qty: 1 Seeger ring $0.90
Location: 11 Prev | Next Part: 113087 *Qty: 1 Gasket $44.29
Location: 12 Prev | Next Part: 10269850 *Qty: 1 Plug $2.01
Location: 13 Prev | Next Part: 131737 *Qty: 1 Spacer $145.05
Location: 14 Prev | Next Part: 104091 *Qty: 1 1st gear roller cage $32.77
Location: 16 Prev | Next Part: 106040 *Qty: 4 Synchronizer floating ring $588.33
Location: 17 Prev | Next Part: 106039 *Qty: 2 Synchronizer body $521.77
Location: 18 Prev | Next Part: 137435 *Qty: 3 Cap spring $20.05
Location: 19 Prev | Next Part: 106044 *Qty: 3 Cap for small block $74.97
Location: 20 Prev | Next Part: 106042 *Qty: 6 Small block for synchronizer $84.60
Location: 21 Prev | Next Part: 131804 *Qty: 2 Sleeve for synchronizer $1,296.28
Location: 23 Prev | Next Part: 104091 *Qty: 1 Reverse gear roller cage $32.77
Location: 24 Prev | Next Part: 131366 *Qty: 1 Reverse gear roller track $125.50
Location: 25 Prev | Next Part: 131400 *Qty: 1 Thrust bearing $22.36
Location: 26 Prev | Next Part: 131056 *Qty: 1 Bearing $199.75
Location: 27 Prev | Next Part: 131400 *Qty: 1 Thrust bearing $22.36
Location: 28 Prev | Next Part: 131365 *Qty: 1 3rd gear roller track $94.56
Location: 29 Prev | Next Part: 104254 *Qty: 1 3rd gear roller cage $14.84
Location: 31 Prev | Next Part: 131421 *Qty: 1 Thrust bearing $106.01
Location: 32 Prev | Next Part: 144669 *Qty: 3 Cap for small block $31.66
Location: 33 Prev | Next Part: 146230 *Qty: 1 Reduction bush for synchronizer $432.15
Location: 34 Prev | Next Part: 131421 *Qty: 1 Thrust bearing $106.01
Location: 35 Prev | Next Part: 131365 *Qty: 1 2nd gear roller track $94.56
Location: 36 Prev | Next Part: 104254 *Qty: 1 2nd gear roller cage $14.84
Location: 38 Prev | Next Part: 131881 *Qty: 1 Thrust bearing $52.47
Location: 39 Prev | Next Part: 108656 *Qty: 1 Bearing $546.21
Location: 40 Prev | Next Part: 153000 *Qty: 1 Ring nut $47.04
Location: 41 Prev | Next Part: 144670 *Qty: 3 Cap spring $0.90

* Quantity shown indicates the number of pieces used in the diagram.
