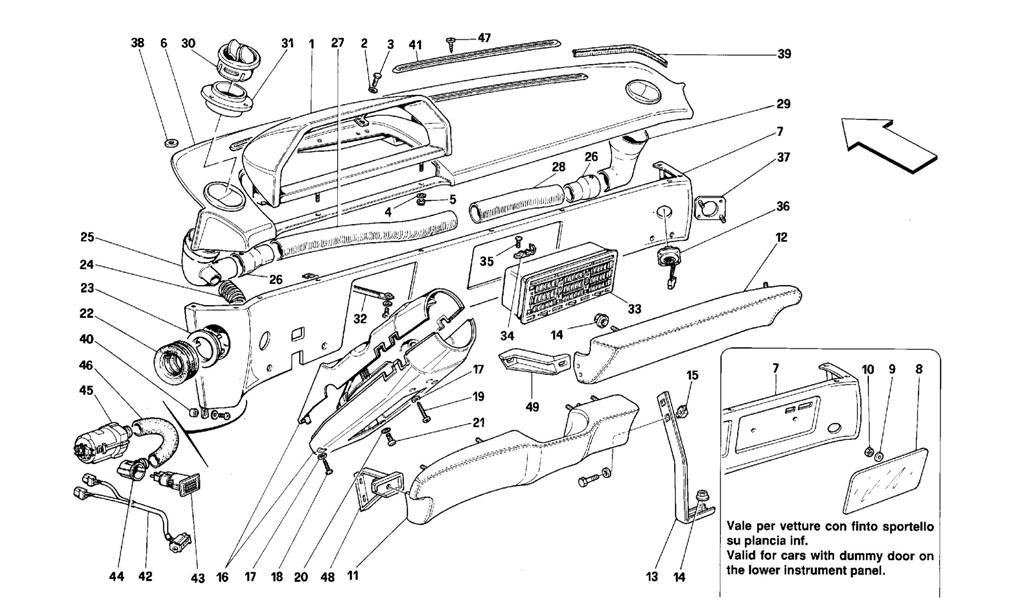

DASHBOARD

Go to Split View

DASHBOARD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63001400 *Qty: 1 Lined dashboard structure box with extended upper profile -Valid for GS- Valid after depletion of $720.93
Location: 1 Prev | Next Part: 63002200 *Qty: 1 Lined dashboard structure box with extended upper profile -Valid for RHD- Valid after depletion of $601.20
Location: 1 Prev | Next Part: 62673000 *Qty: 1 Lined dashboard structure box -Valid for LHD -Valid till stock exhaustion $445.40
Location: 1 Prev | Next Part: 62808200 *Qty: 1 Lined dashboard structure box -Valid for RHD -Valid till stock exhaustion $366.36
Location: 2 Prev | Next Part: 12638124 *Qty: 2 Washer $0.90
Location: 3 Prev | Next Part: 10977724 *Qty: 2 Screw $0.90
Location: 4 Prev | Next Part: 12624101 *Qty: 10 Washer $0.90
Location: 5 Prev | Next Part: 13831801 *Qty: 10 Nut $0.90
Location: 6 Prev | Next Part: 62644500 *Qty: 1 Lined dashboard -Cabriolet- Valid for GS $1,773.69
Location: 6 Prev | Next Part: 62808300 *Qty: 1 Lined dashboard -Coupe - Valid for RHD $1,439.96
Location: 6 Prev | Next Part: 62818800 *Qty: 1 Lined dashboard -Cabriolet- Valid for RHD $1,787.36
Location: 6 Prev | Next Part: 61777700 *Qty: 1 Lining $20.31
Location: 6 Prev | Next Part: 62826000 *Qty: 1 Lined dashboard -Coupe - Valid for GS $1,788.57
Location: 6 Prev | Next Part: 61784900 *Qty: 1 Lining $36.48
Location: 6 Prev | Next Part: 61829900 *Qty: 1 Lining $22.62
Location: 7 Prev | Next Part: 610774.. *Qty: 1 R.H. side lining -Valid for GS Unavailable
Location: 7 Prev | Next Part: 627757.. *Qty: 1 Lined lower dashboard without dummy door -Valid for LHD -Valid for USA 4P Unavailable
Location: 7 Prev | Next Part: 611321.. *Qty: 1 L.H. side lining -Valid for RHD Unavailable
Location: 7 Prev | Next Part: 613297.. *Qty: 1 L.H. side lining -Valid for GS Unavailable
Location: 7 Prev | Next Part: 613413.. *Qty: 1 R.H. side lining -Valid for RHD Unavailable
Location: 7 Prev | Next Part: 628084.. *Qty: 1 Lined lower dashboard with dummy door -Valid for RHD Unavailable
Location: 7 Prev | Next Part: 625435.. *Qty: 1 Lined lower dashboard with dummy door -Valid for GS Unavailable
Location: 7 Prev | Next Part: 629455.. *Qty: 1 Lined lower dashboard without dummy door -Valid for LHD -Not for USA 4P Unavailable
Location: 7 Prev | Next Part: 629456.. *Qty: 1 Lined lower dashboard without dummy door -Valid for RHD Unavailable
Location: 8 Prev | Next Part: 629242.. *Qty: 1 Lined dummy door Unavailable
Location: 8 Prev | Next Part: 625474.. *Qty: 1 Lining Unavailable
Location: 9 Prev | Next Part: 12624101 *Qty: 2 Washer $0.90
Location: 10 Prev | Next Part: 13831801 *Qty: 2 Nut $0.90
Location: 11 Prev | Next Part: 627773.. *Qty: 1 Lining Unavailable
Location: 11 Prev | Next Part: 627785.. *Qty: 1 L.H. knee protect -Valid for USA 4P Unavailable
Location: 12 Prev | Next Part: 627772.. *Qty: 1 Lining Unavailable
Location: 12 Prev | Next Part: 627786.. *Qty: 1 R.H. knee protect -Valid for USA 4P Unavailable
Location: 13 Prev | Next Part: 62467200 *Qty: 1 L.H. bracket to fix. knee protect/ tunnel $20.88
Location: 13 Prev | Next Part: 62474300 *Qty: 1 R.H. bracket to fix. knee protect/ tunnel $20.88
Location: 14 Prev | Next Part: 13832101 *Qty: 20 Nut $0.90
Location: 15 Prev | Next Part: 60758600 *Qty: 4 Nut with cage $0.90
Location: 16 Prev | Next Part: 63319000 *Qty: 1 Complete column cover -Valid from car No. 9988 and for USA till car No. 11251 Unavailable
Location: 16 Prev | Next Part: 62451100 *Qty: 1 Complete column cover -Valid till car No. 9988 and for USA till car No. 11250 Unavailable
Location: 17 Prev | Next Part: 14499301 *Qty: 4 Washer $0.90
Location: 18 Prev | Next Part: 15960507 *Qty: 2 Screw Unavailable
Location: 19 Prev | Next Part: 15961107 *Qty: 2 Screw $0.90
Location: 20 Prev | Next Part: 12601174 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 13274111 *Qty: 2 Screw $0.90
Location: 22 Prev | Next Part: 60657400 *Qty: 2 Gasket $14.55
Location: 23 Prev | Next Part: 60657500 *Qty: 2 Plug $0.90
Location: 24 Prev | Next Part: 60657300 *Qty: 2 Air pipe for door $22.45
Location: 25 Prev | Next Part: 60754000 *Qty: 1 Union for L.H. air opening -Valid for RHD $25.81
Location: 25 Prev | Next Part: 60656800 *Qty: 1 Union for L.H. air opening -Valid for GS $31.92
Location: 26 Prev | Next Part: 61274400 *Qty: 2 Reduction $23.33
Location: 27 Prev | Next Part: 62638900 *Qty: 1 Pipe to conn. conditioner at L.H. air opening -Coupe -Valid for GS $174.09
Location: 27 Prev | Next Part: 61981600 *Qty: 1 Pipe to conn. conditioner at L.H. air opening -Cabriolet $96.77
Location: 27 Prev | Next Part: 61876600 *Qty: 1 Pipe to conn. conditioner at L.H. air opening -Coupe -Valid for RHD $208.60
Location: 28 Prev | Next Part: 61876500 *Qty: 1 Pipe to conn. conditioner at R.H. air opening -Valid for RHD $144.63
Location: 28 Prev | Next Part: 62638800 *Qty: 1 Pipe to conn. conditioner at R.H. air opening -Valid for GS $133.23
Location: 29 Prev | Next Part: 60656700 *Qty: 1 Union for R.H. opening -Valid for LHD -Valid for USA 4P $31.92
Location: 29 Prev | Next Part: 62616900 *Qty: 1 Union for R.H. opening -Valid for LHD -Not for USA 4P $372.66
Location: 29 Prev | Next Part: 60753900 *Qty: 1 Union for R.H. opening -Valid for RHD $25.81
Location: 30 Prev | Next Part: 60656500 *Qty: 2 Air opening Unavailable
Location: 31 Prev | Next Part: 60656600 *Qty: 2 Plug $1.60
Location: 32 Prev | Next Part: 62532300 *Qty: 2 Bracket $11.94
Location: 33 Prev | Next Part: 60657100 *Qty: 1 Central opening $540.00
Location: 34 Prev | Next Part: 129544 *Qty: 3 Clip $2.02
Location: 35 Prev | Next Part: 15688101 *Qty: 3 Screw $0.90
Location: 36 Prev | Next Part: 62462600 *Qty: 2 Loud speaker tweeter Unavailable
Location: 37 Prev | Next Part: 61990100 *Qty: 2 Plate $4.75
Location: 38 Prev | Next Part: 60657600 *Qty: 2 Rubber washer $2.12
Location: 39 Prev | Next Part: 60951700 *Qty: 1 Gasket $60.29
Location: 40 Prev | Next Part: 13605711 *Qty: 0 Spacer -thick. mm. 5- $0.97
Location: 40 Prev | Next Part: 13605811 *Qty: 0 Spacer -thick. mm. 10- $1.21
Location: 41 Prev | Next Part: 60656300 *Qty: 1 R.H. air diffuser $11.94
Location: 41 Prev | Next Part: 60656400 *Qty: 1 L.H. air diffuser $26.16
Location: 42 Prev | Next Part: 119430 *Qty: 1 Connection cables for sensor $14.05
Location: 43 Prev | Next Part: 61079100 *Qty: 1 Sensor Unavailable
Location: 44 Prev | Next Part: 61079200 *Qty: 1 Seat sensor $5.99
Location: 45 Prev | Next Part: 61983500 *Qty: 1 Blower $215.62
Location: 46 Prev | Next Part: 61089300 *Qty: 1 Pipe $13.49
Location: 47 Prev | Next Part: 61696100 *Qty: 12 Screw $1.02
Location: 48 Prev | Next Part: 62450800 *Qty: 1 R.H. bracket for L.H. knee protect $33.66
Location: 48 Prev | Next Part: 62450900 *Qty: 1 L.H. bracket for L.H. knee protect $254.17
Location: 49 Prev | Next Part: 62451000 *Qty: 1 L.H. bracket for R.H. knee protect $38.12
Location: 49 Prev | Next Part: 62458400 *Qty: 1 R.H. bracket for R.H. knee protect $77.66

* Quantity shown indicates the number of pieces used in the diagram.
