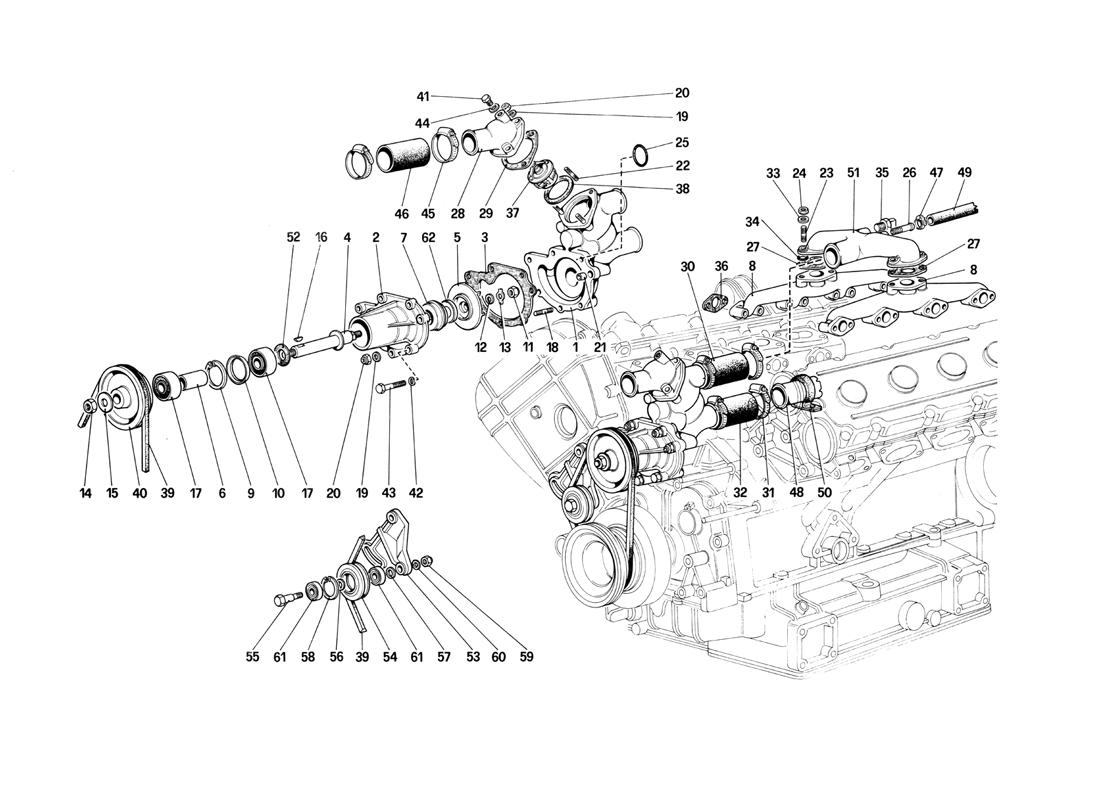

WATER PUMP AND PIPING

WATER PUMP AND PIPING

Location Part # Quantity* Description Price Add To Cart
- 121264 1 Water pump complete (Front)
From engine no. 962 to engine 1380
Unavailable
- 121255 1 Water pump complete (Front)
From engine no. 1381
$680.37
- 115471 1 Water pump body, complete $465.00
- 116173 1 Water pump complete (Front)
Up to engine no. 961
Unavailable
- 121290 1 Water pump complete
From engine no. 1381
Unavailable
- 121265 1 Water pump complete
From engine no. 962 to engine 1380
Superseded
- 115472 1 Water pump complete
Up to engine no. 961
Superseded
1 115470 1 Water pump body
With assembly no. 115471
Unavailable
2 116156 1 Pump cover
With assembly no. 116173
Superseded
2 121252 1 Pump cover
With assembly no. 121255
Superseded
2 121262 1 Pump cover
With assembly no. 121264
Unavailable
3 103952 1 Gasket Superseded
4 103795 1 Spindle for pulley
For water pump no. 11 5472 and 121265
$470.29
4 121253 1 Spindle for pulley
For water pump no. 121290
Unavailable
5 103806 1 Impeller
For water pump no. 115472 and 121265
$237.67
5 121254 1 Impeller
For water pump no. 121290
$228.11
6 116157 1 Spacer $117.37
7 120948 1 Sealing ring
For water pump no. 121290
Superseded
7 100433 1 Sealing ring
For water pump no.115472 and 121265
$134.06
8 116967 2 Manifold of output water to the hears $2,351.51
9 11060076 1 Seeger ring Unavailable
10 116158 1 Washer $38.33
11 100436 1 Cap nut $12.34
12 10730301 1 Washer Superseded
13 100434 1 Plate $12.53
14 16101521 1 Nut Unavailable
15 11198671 1 Conic washer Superseded
16 10205820 1 Tongue $1.54
17 116159 2 Bearing $36.26
18 11500721 3 Stud Unavailable
19 12601271 6 Corrugated washer Superseded
20 12574211 6 Nut Superseded
21 102704 2 Dowel $3.69
22 11500421 3 Stud Superseded
23 13516821 4 Stud Superseded
24 16100811 4 Nut Superseded
25 105196 1 Sealing ring $4.97
26 106241 1 Union $40.00
27 111481 2 Gasket Superseded
28 105165 1 Water outlet union $243.36
29 105189 1 Gasket $6.21
30 121258 1 Sleeve $33.19
31 12177090 4 Clamp Superseded
32 122817 1 Sleeve
With pipe no. 122857 - For Cabriolet no. 122231
$37.56
32 121259 1 Sleeve
With pipe no. 116457
Superseded
33 11198071 4 Washer Superseded
34 103039 4 Sealing ring $1.08
35 104628 1 Thermistor $102.11
36 111480 8 Gasket Superseded
37 109671 1 Thermostat $171.80
38 105192 1 Gasket $19.85
39 121655 1 Control belt for water pump
2 individual belt
$165.71
39 107971 1 Control belt for pump and alternator
Single belt
$98.33
40 121654 1 Pulley
2 individual belts
$150.00
40 105166 1 Pulley
Single belt
$231.00
41 16042940 1 Screw Unavailable
42 12601371 4 Washer Superseded
43 16044421 4 Fixing screw for pump Unavailable
44 10260060 1 Gasket $1.36
45 12177090 2 Clamp Superseded
46 105190 1 Sleeve $28.70
47 12179490 2 Clamp Superseded
48 116457 1 Tube
On exhaustion use no. 122857
$147.24
49 116453 1 Breather pipe
On exhaustion use no. 122219
Superseded
50 107002 1 Clamp for pipe $31.00
51 116968 1 Joint piping to manifolds of output water Superseded
52 121263 1 Gasket
For cover no. 121262
$14.92
53 121658 1 Support
2 individual belts
$272.75
54 121659 1 Pulley
2 individual belts
$89.00
55 105048 1 Pin
2 individual belts
$68.82
56 107841 1 Spacer
2 individual belts
Unavailable
57 107842 1 Spacer
2 individual belts
$22.01
58 11059075 1 Seeger
2 individual belts
$0.90
59 16105121 1 Nut
2 individual belts
Superseded
60 103025 1 Washer
2 individual belts
Unavailable
61 105038 2 Bearing
2 individual belts
$15.00
62 121553 1 Backplate for ring
For pump no. 121290
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
